| Product Name | F7-13M Thrust Ball Bearings 7mm x 13mm x 4.5mm Small Axial Thrust Bearing 7x13x4.5mm Suitable for axial positioning of gear shafts in paper shredders |
| Brand | Neutral/ No brand |
| Model No | F7-13M |
| Sizes(mm) | 7x13x4.5mm |
| Material | Chrome steel washers with brass cage/ stainless steel cage |
| Sealed Type | Open |
| Precision | P0, P6/ ABEC-1, ABEC-3 |
| Used | F7-13M Thrust Ball Bearings 7mm x 13mm x 4.5mm Small Axial Thrust Bearing 7x13x4.5mm Suitable for axial positioning of gear shafts in paper shredders, Transmissions, transfer cases, engines, valve trains, steering and breaking system, axle supports,outboard engines, power tools, copiers, fax machines, paper moving equipment and appliances... |
| Packing | 10pcs/tube+ carton |
| Shipping Method | By Air, Sea, Train, Truck, or other DDP Service |

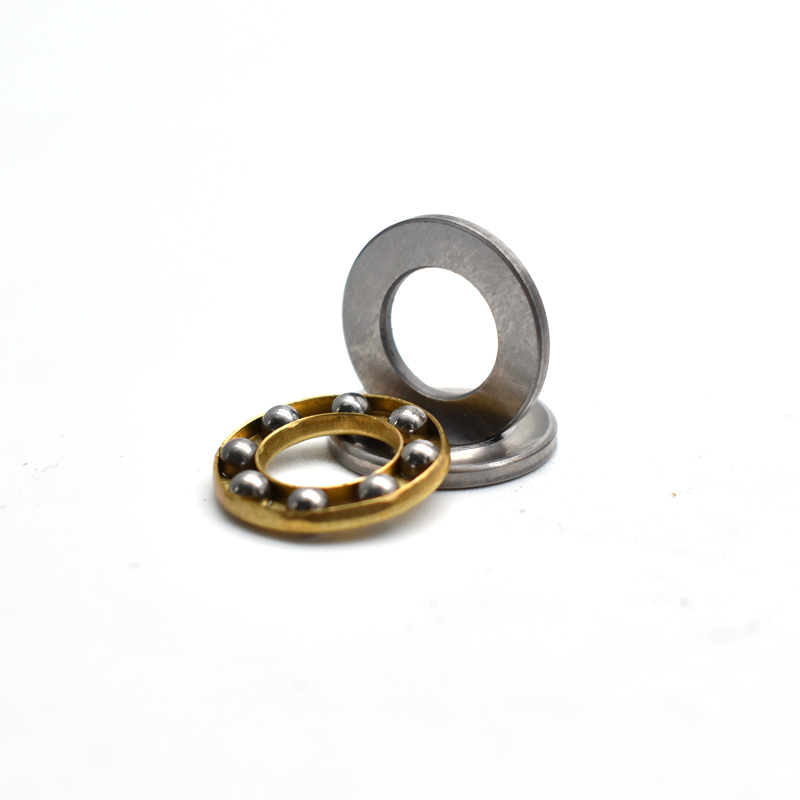

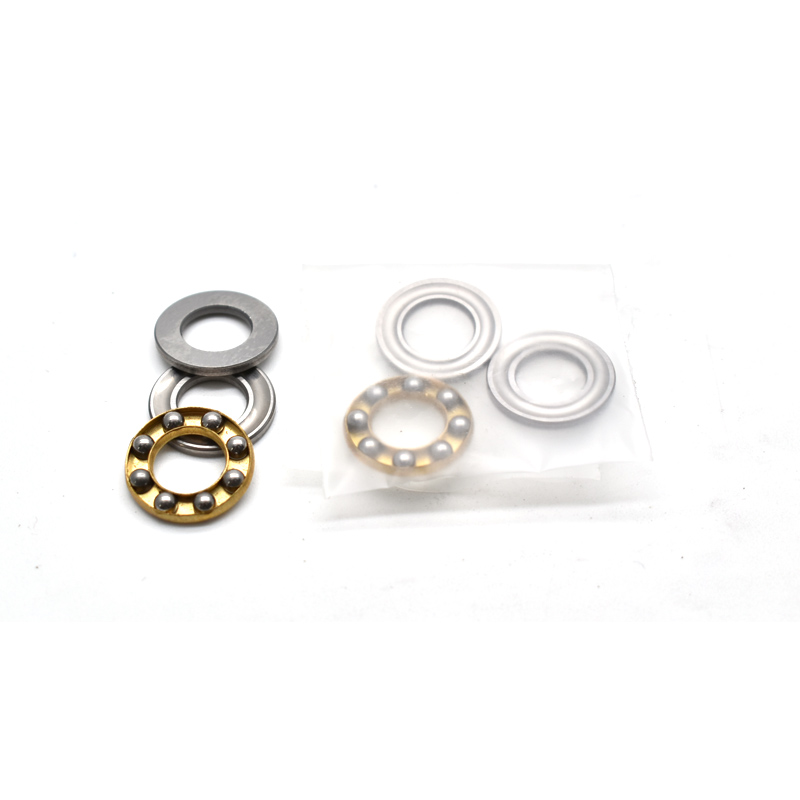

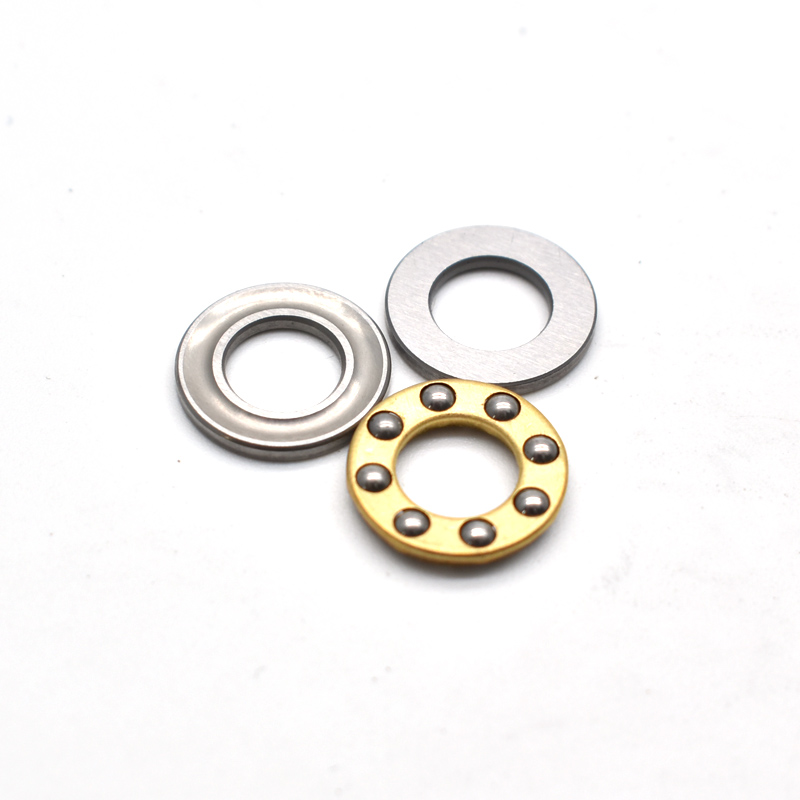

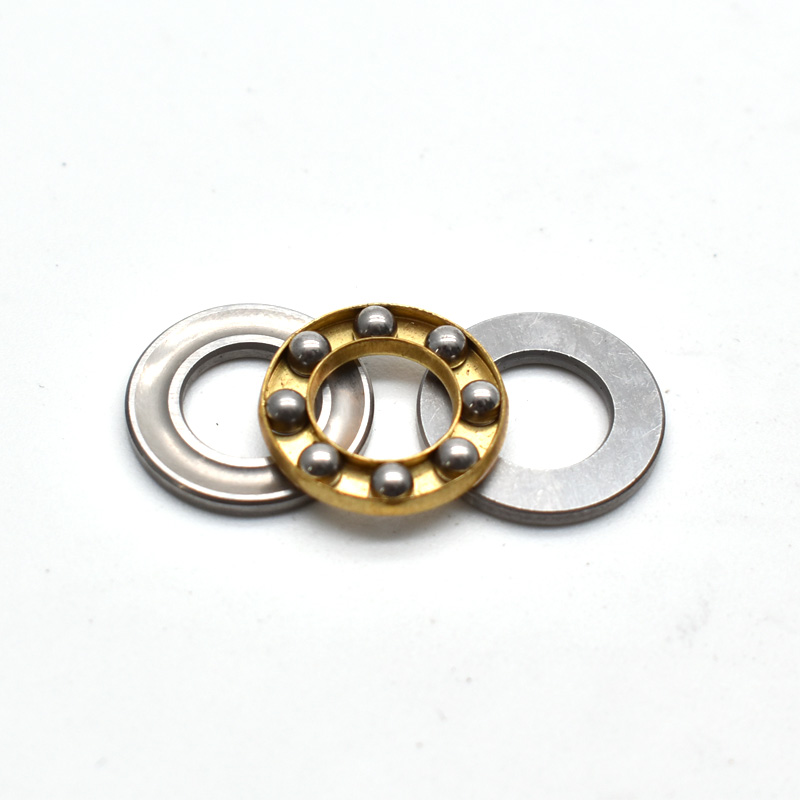

F7-13M Thrust Ball Bearings 7mm x 13mm x 4.5mm Small Axial Thrust Bearing 7x13x4.5mm Suitable for axial positioning of gear shafts in paper shredders
F7-13M Thrust Ball Bearings 7mm x 13mm x 4.5mm Small Axial Thrust Bearing 7x13x4.5mm Suitable for axial positioning of gear shafts in paper shredders, Miniature Inch Needle Clutch Bearings Inner 7mm diam. mm, Outer diam. 13mm, Width 4.5mm. it made of Chrome steel washers with brass cage/ stainless steel cage , this list F7-13M widely use for rolling systems, all kinds of Transmissions, transfer cases, engines, valve trains, steering and breaking system, axle supports, outboard engines, power tools, copiers, fax machines, paper moving equipment and appliances...This RCB061014drawn cup roller clutch with a plastic cage transmits torque between the shaft and housing in one direction.
The F Metric Thrust Ball Bearing Series is a high precision line of miniature thrust ball bearings that can accommodate axial loads in a single direction. The bearings in this series are designed with flat raceways and are suitable for applications with smaller load and speed requirements than that of the FM miniature thrust bearing series.
F series thrust bearing model we make from F2-6M,F2.5-6M,F3-8M,F4-9M,F4-10M,F5-10M,F5-11M,F5-12M,F6-11M,F6-12M,F6-14M,F7-13M,F7-14.5M,F7-15M,F7-17M,F8-14M,F8-16M,F8-19M,F8-22M,F9-17M,F9-20M,F10-17M,F10-18M,F10-19M,F10-20M,F10-21M,F10-22M,F11-21M,F12-19M,F12-20M,F12-21M,F12-22M,F12-23M.
These bearings are typically manufactured with SAE 52100 chrome steel races but can be manufactured in stainless steel upon request. We also support customization of this bearing line to accommodate any special dimensional requirements.
APPLICATION:
Transmissions, transfer cases, engines, valve trains, steering and breaking system, axle supports, outboard engines, power tools, copiers, fax machines, paper moving equipment and appliances.
Needle roller bearing is a bearing which uses small cylindrical rollers.The difference between a needle roller bearing and roller bearing is the ratio of diameter and length of their rollers, when the ratio of the diameter and the length of roller of a roller bearing is between the interval of 0.1 to 0.4, that roller bearing is called a needle roller bearing. They are used to reduce the friction of a rotating surface.
