Cheap A Set of 4pcs 127mm Aluminum Mecanum Wheels14198 Basic

This 127mm (5-inch) Mecanum wheel set includes two right-handed wheels and two left-handed wheels. Each wheel is equipped with 12 rollers

and is independently driven. Mecanum wheels allow omnidirectional movement, enabling the platform to move in any direction without changing the rotation direction of the wheels.

Each of the four wheels contains a series of rollers that are angled at 45° relative to the wheel's plane. These rollers are mounted in a orientation parallel

to the axis of rotation of the wheel hub, allowing for smooth and precise multidirectional motion.

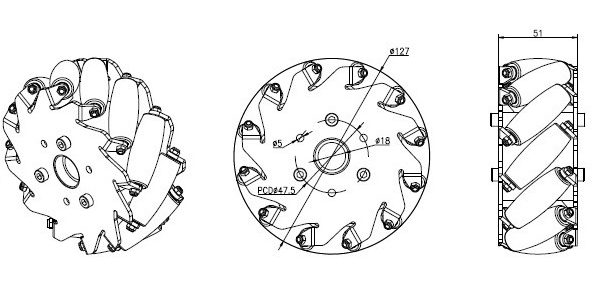

Specifications:

Diameter:127mm

Width:51mm

Number of Rollers:12

Number of Plates:2

Body material:Aluminium alloy

Roller material:Polyurethane

Spacer material:Aluminum

Net weight:500g*4

Load capacity:45KG/set

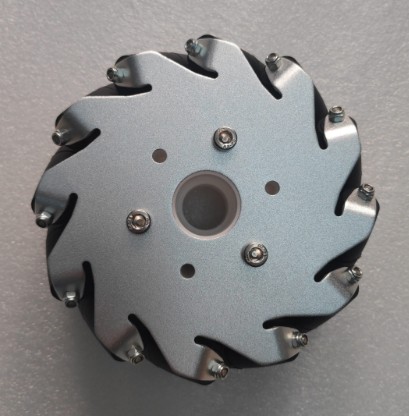

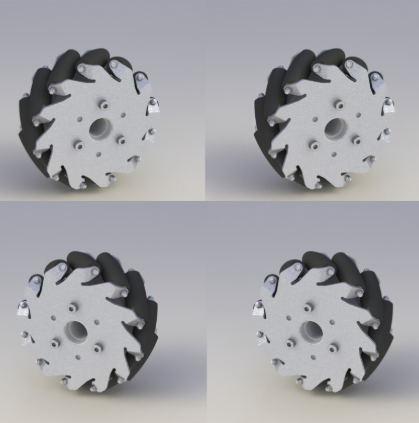

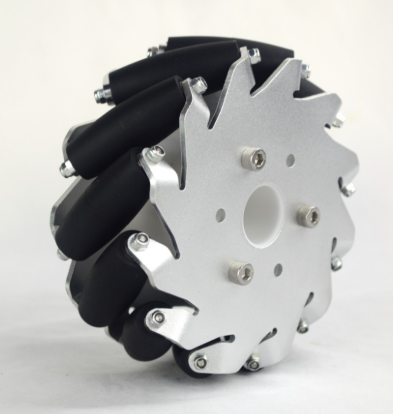

Cheap A Set of 4pcs 127mm Aluminum Mecanum Wheels14198 Basic pictures as below:

What are the advantages and disadvantages of the mecanum wheel?

Much easier to climb ramps with Mecanums. To my understanding Mecanums are also more efficient in forward and reverse directions (like a normal wheel) while still giving you lateral mobility. Omni-Drives will give you true omnidirectional motion.

The advantages of the Mecanum wheel and the omnidirectional wheel are flexibility and convenience, and the disadvantage is expensive. The omnidirectional wheel, as the name suggests,

 can move in any direction, at any angle, and in any direction. mecanum wheel these rollers having an axis of rotation at 45° to the plane parallel to the axis of rotation of the wheel.

Heavy duty mecanum wheels specifications from 100mm~508mm:
