Payload 300kg 203mm heavyduty industrial omni wheel NW203C features:

Zoty BearingZoty Omni wheel&Mecanum wheel is heavy load Omni wheel&Mecanum wheel. Each High-strength wheel hub and great-quality material ensure

the series an excellent performance.  Omni wheel&Mecanum wheel series Omni wheel also adapt to various indoor and outdoor occasions.

It can be used in industry . install on the heavy duty omni moving platform to make the platform rotate to omni directionsAnd it mainly used in industry , workshop, AGV and so on .

It can even used on stage show equipment .

Specifications:

Diameter: 203mm（8inch)

Width: 90mm

Number of Rollers: 8

Number of Plates: 2

Body material: Steel

Roller material: Steel core with Polyurethane coated

Net weight: 8.5kg

Load capacity: 300kg/pcs

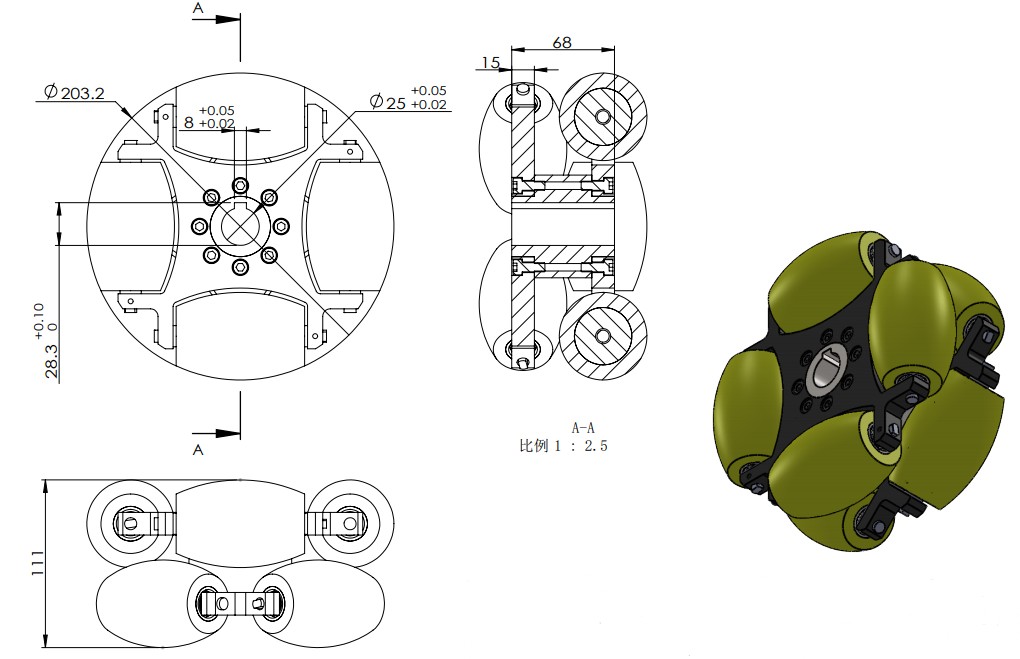

Payload 300kg 203mm heavyduty industrial omni wheel NW203C as below:

What are the advantages and disadvantages of the Omni wheel?

The advantages of the Mecanum wheel and the omnidirectional wheel are flexibility and convenience, and the disadvantage is expensive. The omnidirectional wheel, as the name suggests,

 can move in any direction, at any angle, and in any direction. mecanum wheel these rollers having an axis of rotation at 45° to the plane parallel to the axis of rotation of the wheel.
