Zoty bearing factory one of advantage high grade hybrid ceramic bearing use for fishing reels, It perfect fit for famous brands like Okuma, Abu, Daiwa, Shimano...reels. whether you are a competitive or leisure fisherman, or do reel repair maintenance service, you have to know that the main purpose of ball bearings is to reduce friction, create ease of motion, and increase speed when fishing. Together, this essentially means that ball bearings make your fishing reel easier to use and more effective.

With ceramic balls will be run in high speed,lube some light oil will reduce the noise, durable and easy to remaintance, orange seals is most common color, we do accept customised any color seals. Zoty bearing almost of sizes in stock no MOQ request, same day delivery.

Our highly polished stainless steel raw material construction with Si3N4 silicon nitride ceramic balls, and proprietary precision inner tolerances is combined with our 100% synthetic lightweight Made in China which is super slippery and bonds to the bearing surfaces resulting in a very fast spinning bearing and reel. Also very suitable for fishing reels and wet applications.Faster means you can cast your reel farther and quicker.The bottom linebuy a fishing reel with enough quality bearings that will perform well and be reliable; maintain it well…and go fishing.

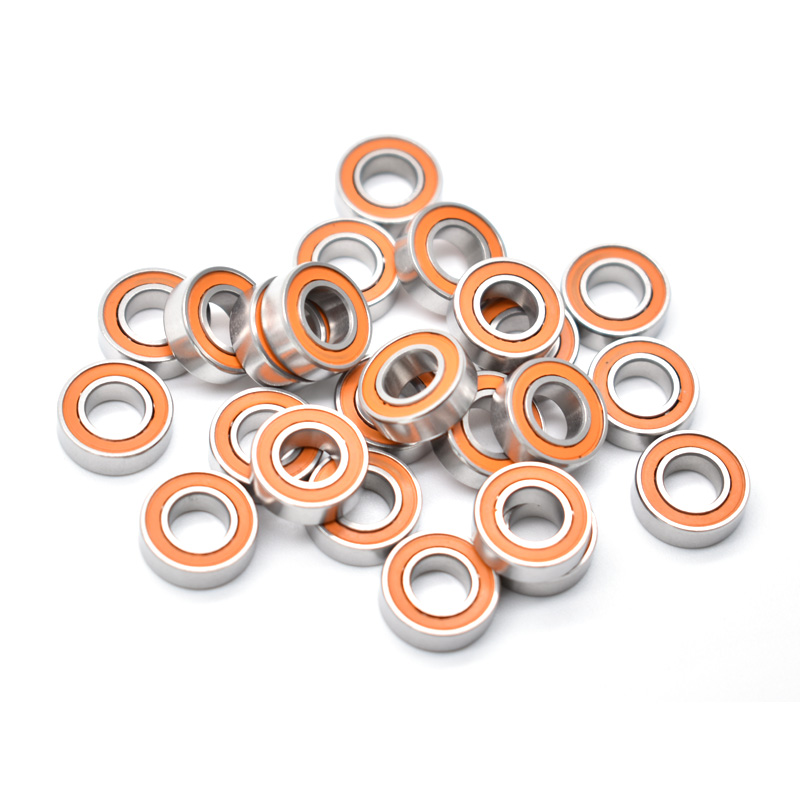

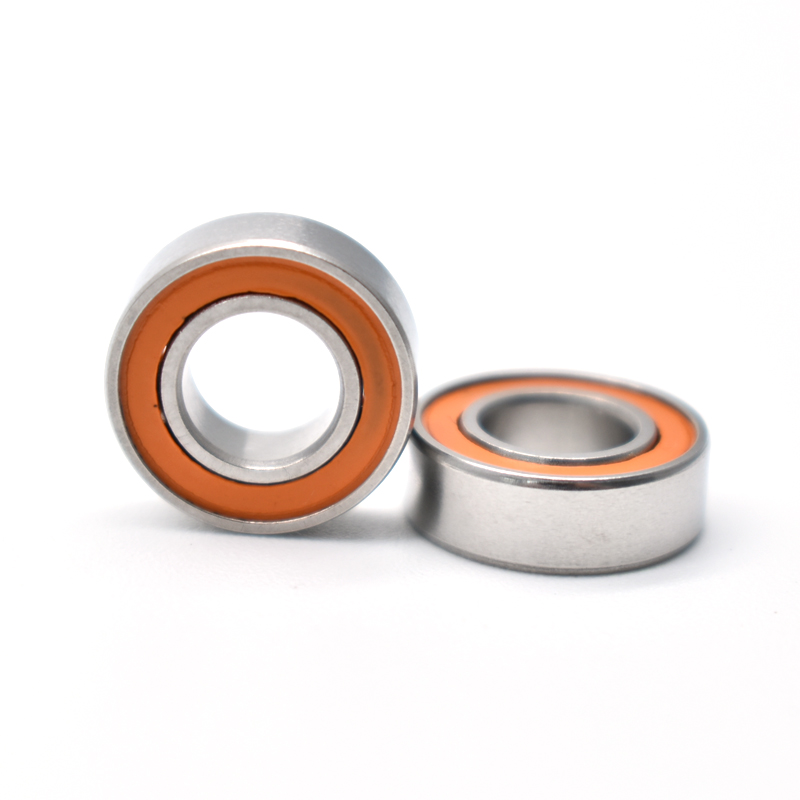

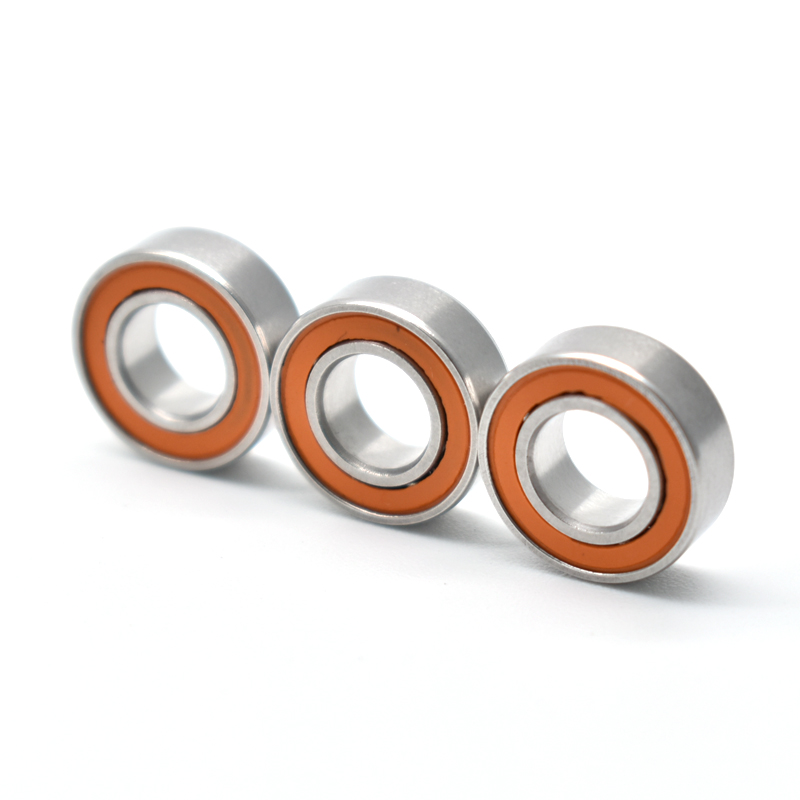

Machinery Bearing SMR117C-2OS Small Miniature Hybrid Ceramic Ball Bearing 7x11x3mm

SMR117C-2OS bearing is meticulously crafted with precision ceramic balls and stainless steel races. Ceramic balls offer numerous advantages, including higher speed capabilities, reduced friction, enhanced hardness, and resistance to heat and chemicals. This equates to lower energy consumption, improved efficiency, and extended bearing life.

The stainless steel races provide added strength and durability, ensuring the bearing can withstand heavy loads and harsh operating conditions. The hybrid design of the SMR117C-2OS bearing allows for increased speed and superior overall performance compared to traditional all-steel bearings.

Additionally, the SMR117C-2OS hybrid ceramic ball bearing features open sides, allowing for easy maintenance and lubrication. It is equipped with two protective rubber seals that effectively seal the bearing, preventing contaminants from entering and safeguarding its longevity and reliability.

Hybrid Ceramic Bearing features:

1. AISI440C stainless steel rings

2. AISI304 stainless steel cage

3. Si3N4 ceramic balls

4. Dry lube/ AF2 Oil

5. Orange rubber seals/ZZ metal shields/ Open

6. High speed, durable, long working life

7. ABEC-7/ ABEC-9 grade

Fishing reel ceramic bearing popular sizes as following:

Ball Bearing bore 2mm:  2x5x2mm, 2x5x2.5mm, 2x6x2.5mm, 2.5x6x...

Ball Bearing bore 3mm: 3x6x2mm, 3x6x2.5mm, 3x7x3mm, 3x8x2.5mm, 3x8x3mm, 3x8x4mm, 3x10x4mm, 3x11x4mm

Ball Bearing bore 4mm: 4x7x2mm 4x7x2.5mm, 4x8x2mm, 4x8x3mm,4x10x4mm, 4x11x4mm,4x13x5mm

Ball Bearing bore 5mm: 5x8x2mm, 5x8x2.5mm, 5x9x3mm, 5x10x3mm, 5x10x4mm, 5x11x3mm, 5x11x4mm, 5x13x4mm

Ball Bearing bore 6mm: 6x10x2.5mm, 6x10x2.5mm, 6x10x3mm, 6x12x4mm, 6x13x5mm, 6x15x5mm, 6x19x6mm

Ball Bearing bore 7mm:7x11x3mm, 7x14x3.5mm, 7x14x5mm, 7x17x5mm

Ball Bearing bore 8mm: 8x12x2.5mm, 8x12x3.5mm,8x14x4mm, 8x16x5mm

Ball Bearing bore 9mm:  9x17x5mm, 9x20x5mm

Ball Bearing bore 10mm: 10x15x4mm, 10x19x5mm, 10x20x5mm

Ball Bearing bore 12mm: 12x18x4mm

Ball Bearing bore 15mm: 15x21x5mm....

Inch/imperial sizes  ball bearing : SR2C-2OS 1/8" x 3/8" x 5/32, SR156C-2OS 3/16" x 5/16" x 1/8, SR166C-2OS 3/16 x 3/8 x 1/8, SR168C-2OS 1/4"x3/8"x1/8..
