Zoty bearing factory one of advantage high grade hybrid ceramic bearing use for fishing reels, It perfect fit for famous brands like Okuma, Abu, Daiwa, Shimano...reels. whether you are a competitive or leisure fisherman, or do reel repair maintenance service, you have to know that the main purpose of ball bearings is to reduce friction, create ease of motion, and increase speed when fishing. Together, this essentially means that ball bearings make your fishing reel easier to use and more effective.

With ceramic balls will be run in high speed,lube some light oil will reduce the noise, durable and easy to remaintance, orange seals is most common color, we do accept customised any color seals. Zoty bearing almost of sizes in stock no MOQ request, same day delivery.

Our highly polished stainless steel raw material construction with Si3N4 silicon nitride ceramic balls, and proprietary precision inner tolerances is combined with our 100% synthetic lightweight Made in China which is super slippery and bonds to the bearing surfaces resulting in a very fast spinning bearing and reel. Also very suitable for fishing reels and wet applications.Faster means you can cast your reel farther and quicker.The bottom linebuy a fishing reel with enough quality bearings that will perform well and be reliable; maintain it well…and go fishing.

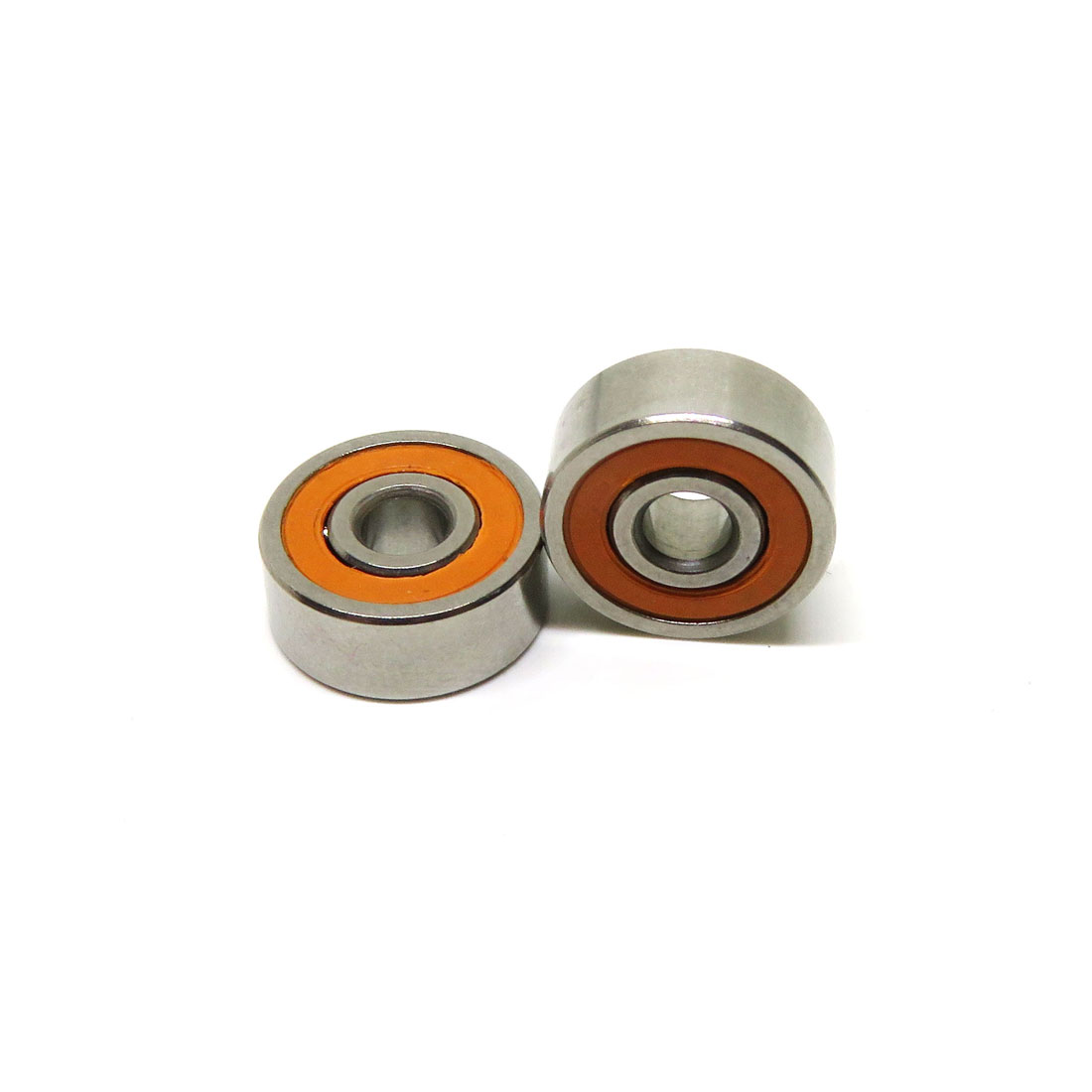

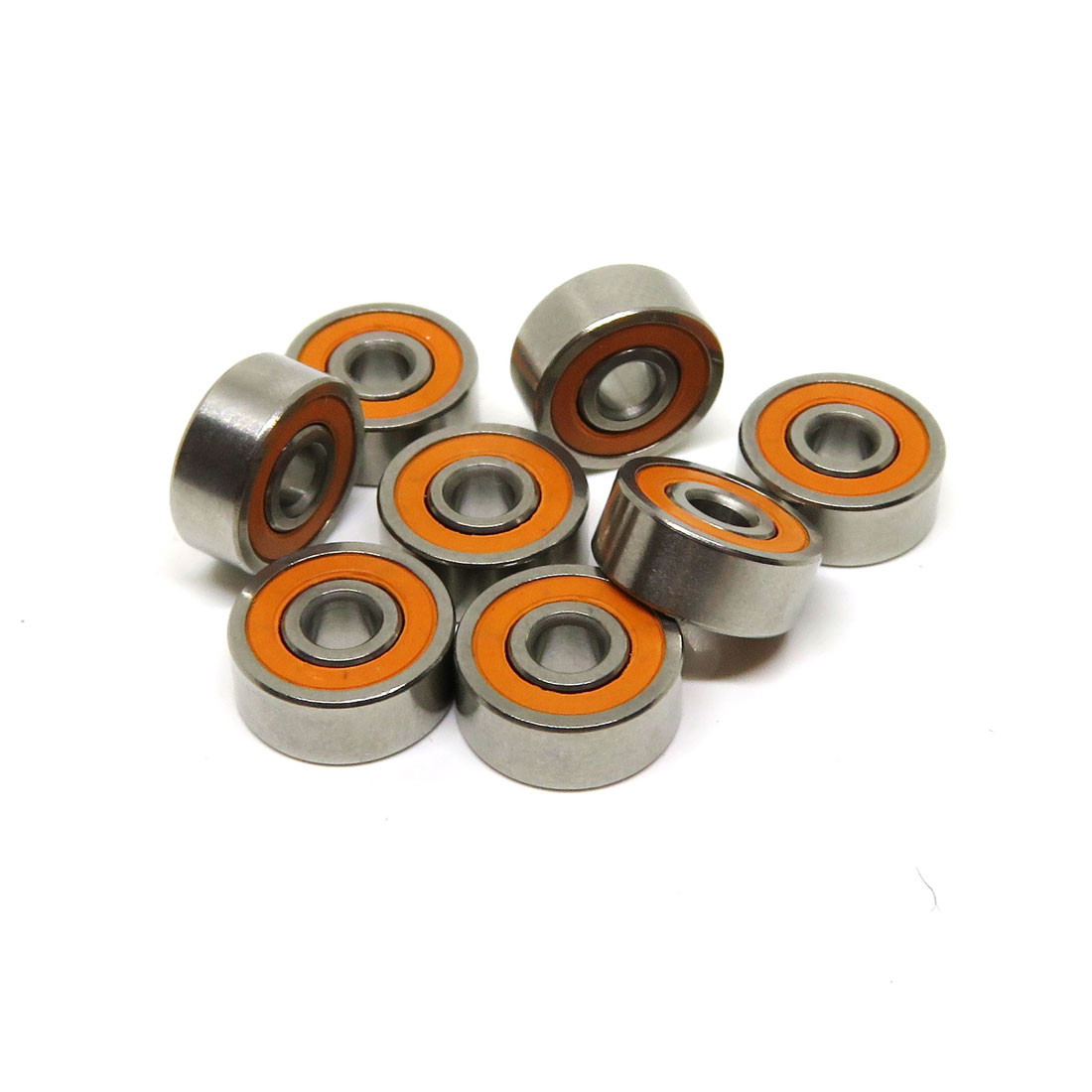

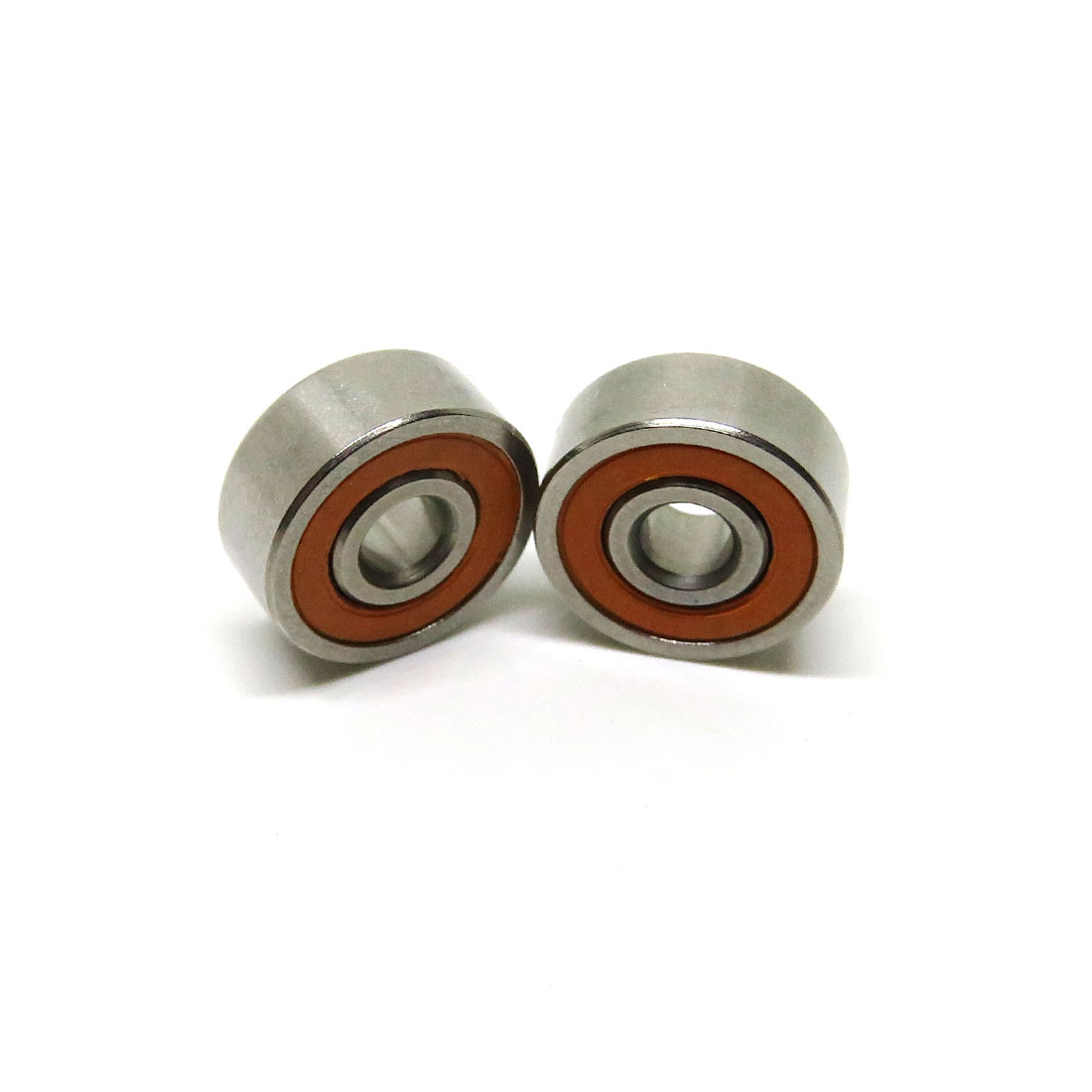

S623C 2RS 3x10x4mm ABEC-7 Hybrid Ceramic Bearing S623C-2OS Fishing Reels Side Cover Bearing

Bearing NO.: S623C-2OS; Rings Material: 440C Stainless Steel

Balls Material: Si3N4 Ceramic; Precision: ABEC-7(P4)

Inner Diameter: 3mm; Outer Diameter: 10mm; Width: 4mm

Seal Type: Orange Rubber Seals

Lubrication: Self-Lubrication(No grease or oil)

These materials have a lower coefficient of friction compared to steel, which allows the bearing to spin faster and more efficiently. Additionally, ceramics have a higher hardness and are more resistant to wear, resulting in a longer lifespan for the bearing.

S623C ceramic hybrid bearing provide stability and support for the ceramic balls. They are typically made from high-quality steel that is heat-treated or coated to enhance durability and corrosion resistance.

Hybrid Ceramic Bearing features:

1. AISI440C stainless steel rings

2. AISI304 stainless steel cage

3. Si3N4 ceramic balls

4. Dry lube/ AF2 Oil

5. Orange rubber seals/ZZ metal shields/ Open

6. High speed, durable, long working life

7. ABEC-7/ ABEC-9 grade

Fishing reel ceramic bearing popular sizes as following:

Ball Bearing bore 2mm:  2x5x2mm, 2x5x2.5mm, 2x6x2.5mm, 2.5x6x...

Ball Bearing bore 3mm: 3x6x2mm, 3x6x2.5mm, 3x7x3mm, 3x8x2.5mm, 3x8x3mm, 3x8x4mm, 3x10x4mm, 3x11x4mm

Ball Bearing bore 4mm: 4x7x2mm 4x7x2.5mm, 4x8x2mm, 4x8x3mm,4x10x4mm, 4x11x4mm,4x13x5mm

Ball Bearing bore 5mm: 5x8x2mm, 5x8x2.5mm, 5x9x3mm, 5x10x3mm, 5x10x4mm, 5x11x3mm, 5x11x4mm, 5x13x4mm

Ball Bearing bore 6mm: 6x10x2.5mm, 6x10x2.5mm, 6x10x3mm, 6x12x4mm, 6x13x5mm, 6x15x5mm, 6x19x6mm

Ball Bearing bore 7mm:7x11x3mm, 7x14x3.5mm, 7x14x5mm, 7x17x5mm

Ball Bearing bore 8mm: 8x12x2.5mm, 8x12x3.5mm,8x14x4mm, 8x16x5mm

Ball Bearing bore 9mm:  9x17x5mm, 9x20x5mm

Ball Bearing bore 10mm: 10x15x4mm, 10x19x5mm, 10x20x5mm

Ball Bearing bore 12mm: 12x18x4mm

Ball Bearing bore 15mm: 15x21x5mm....

Inch/imperial sizes  ball bearing : SR2C-2OS 1/8" x 3/8" x 5/32, SR156C-2OS 3/16" x 5/16" x 1/8, SR166C-2OS 3/16 x 3/8 x 1/8, SR168C-2OS 1/4"x3/8"x1/8..
