Product Description
| Product Name | SF8-14M 440C Stainless Steel Axial Thrust Ball Bearing 8x14x4mm SS-F8-14M |
| Brand | Neutral |
| Model No | SF8-14M |
| Sizes(mm) | 8x14x4mm |
| Material | AISI440C stainless steel washers+ 304 stainless steel cage |
| Sealed Type | Open |
| Precision | P0, P6, P5 |
| Grade | ABEC-1 |
| Used | SF8-14M 440C Stainless Steel Axial Thrust Ball Bearing 8x14x4mm SS-F8-14M |
| Packing | Individual plastic bag |
| Shipping Method | By air or by sea |

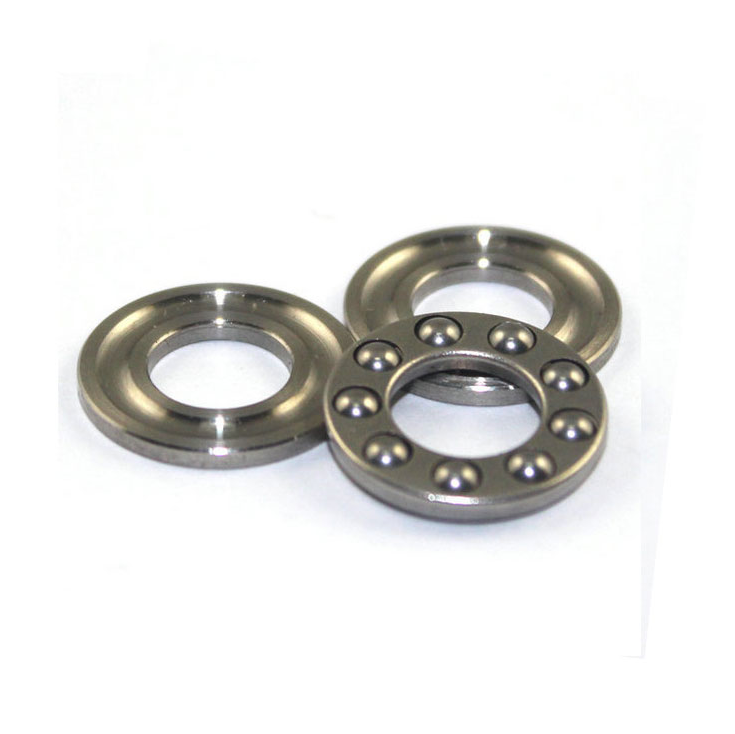

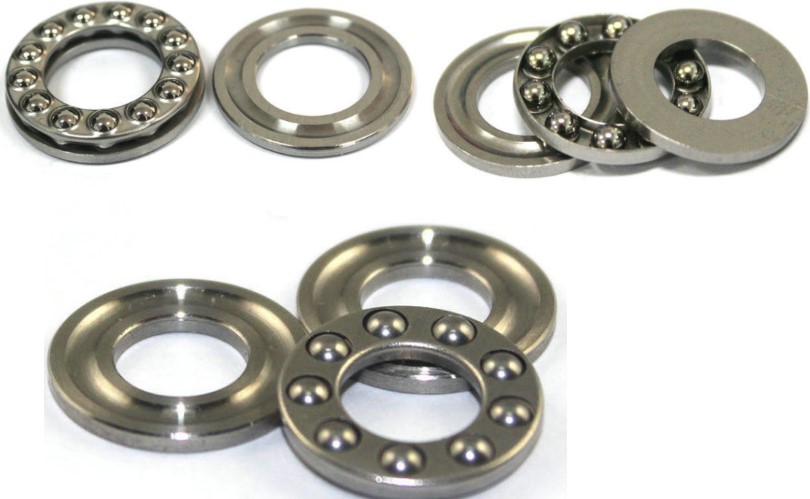

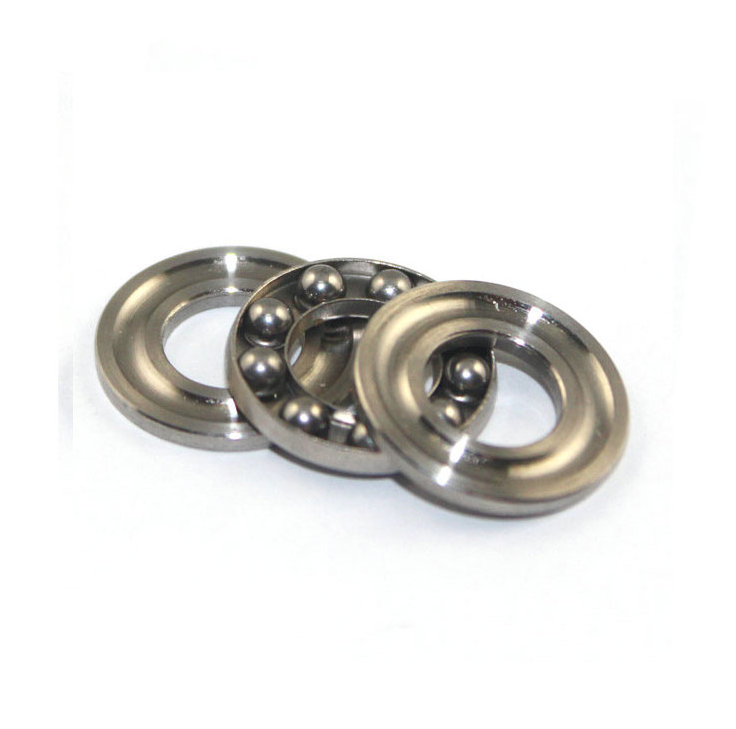

Detailed Images
SF8-14M 440C Stainless Steel Axial Thrust Ball Bearing 8x14x4mm SS-F8-14M
Item: SF8-14M
Type: Stainless steel thrust bearing
Washer Material: SUS/AISI 440C Stainless Steel
Cage Material: 304 stainless steel
Lubrication: Dry/ Oil
Size: 8x14x4mm
Inner Diameter: 8mm
Outer Diameter: 14mm
Width: 4mm
The F Metric Stainless Steel Thrust Ball Bearing Series is a high precision line of miniature thrust ball bearings that can accommodate axial loads in a single direction. The bearings in this series are designed with flat raceways and are suitable for applications with smaller load and speed requirements than that of the FM miniature thrust bearing series.
These bearings are available with bore sizes as small as 2mm (0.0787 inches) and as large as 10mm (0.3937 inches), and with the race ODs ranging from 6mm (0.2362 inches) to 18mm (0.7087 inches). popular model SF8-14M, SF9-20M, SF8-19M, SF10-18M, SF8-16M... thrust bearings
Thrust bearing washers made of AISI 440C stainless steel bearings, cage is 304 stainless steel material resist corrosion. It is an axial bearing that permits rotation between parts. Thrust bearings support the axial thrust of both horizontal and vertical shafts.

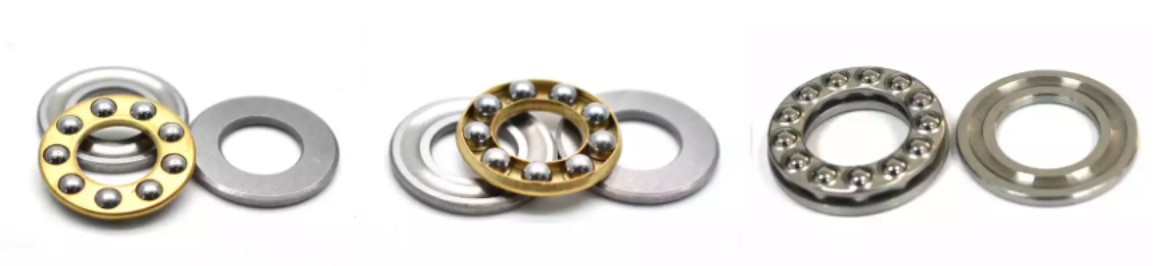

Related Product:
These bearings are typically manufactured with SAE 52100 chrome steel washers, cage can be use brass/cooper material, or 304 stainless steel material.
ZOTY Bearings : SF8-14M 440C Stainless Steel Axial Thrust Ball Bearing 8x14x4mm SS-F8-14M
