Zoty Bearing- Series PU/ Plastic Covered Bearings/ Pulleys/ Sheaves

PUOW68516-5C1L5M4

PUOW68516-5C1L5M4: PU Roller with M4 Mounting Stud

This polyurethane-coated bearing roller combines a 16 mm wheel diameter and 5 mm wheel width with an M4 mounting stud. Use the product drawing below to check the mounting arrangement before ordering for your guide or sliding assembly.

Specification Summary

• Model: PUOW68516-5C1L5M4

• Wheel outer diameter: 16 mm; wheel width: 5 mm

• Wheel material: polyurethane (PU); listed hardness: 85 Shore A

• Bearing material: GCr15 chrome steel

• Mounting stud: M4, 304 stainless steel

• Profile: flat; listed wheel color: white

Confirm the Mounting and Operating Conditions

Check the stud length, shoulder dimensions and available mounting space against your drawing. Include the load on each roller, travel speed, contact surface, temperature and any water or cleaning-agent exposure. Specify your required bearing shield or seal configuration. Food-contact suitability and washdown requirements need a separate application review.

Request a Bulk or OEM Quotation

Use Quotation Now on this page and include the model, order quantity, expected repeat demand, drawing or sample reference, and delivery country and postal code. Please state whether you need sample pricing, production pricing, or both, and whether freight should be included. Any requested hardness, color or mounting changes will be reviewed against your application before quotation.

Related selection guides: Guide rollers for conveyor and packaging equipment | PU bearing rollers | Contact ZOTY about your drawing.

M4x16x5mm polyurethane roller bearings PU slide gate guide roller for food machinery production line specifications:

Model: PUOW68516-5C1L5M4

Diameter: 5x16x5mm, C1L5M4

Bearing Material: GCr15 Chrome Steel

Plastic Material:  Polyurethane(PU)

Screw bolt material: 304 Stainless steel

Shape: Flat

Color: White color ( as your requested)

Shore Hardness: 85 Shore A, and can do 55 75 85 90 92 95 Shore A.   /  Shore D 65 75.

Seals Type: rubber seals/ metal shields/ open

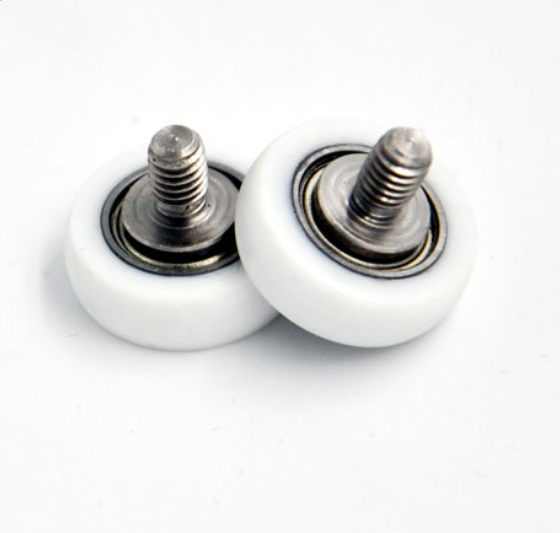

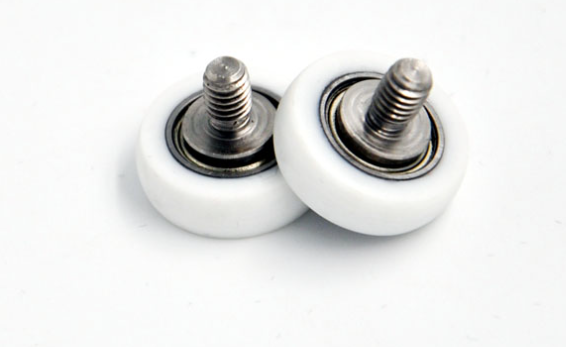

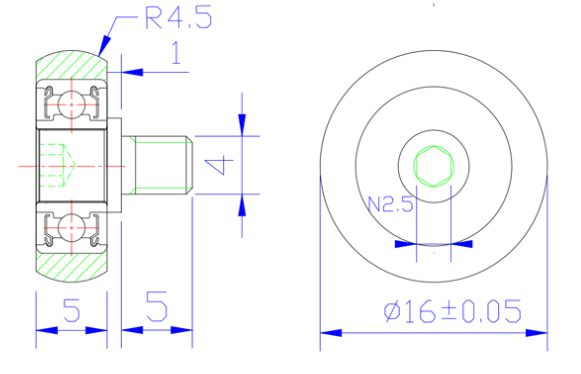

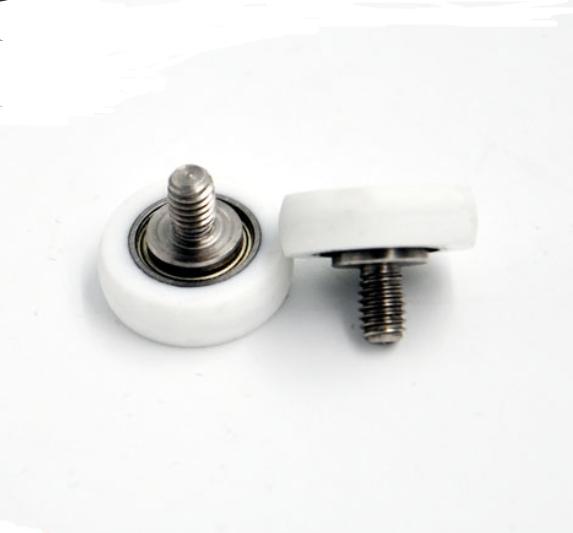

PUOW68516-5C1L5M4 M4x16x5mm polyurethane wheel with screw product pictures and drawing:

What are the benefits of polyurethane wheels with screw?

Polyurethane roller PU wheel with screw are known for their  better abrasion and tear resistance than rubber, while offering higher load bearing capacity. Compared to plastics, low rolling resistance, and good grip, making them a popular choice for many applications, such as sliding system, elevators, medical equipment, conveyor belt, sliding doors and windows, machinery and equipment...

Polyurethane forming bearing with shaft offer superior impact resistance, while offering excellent wear properties and elastic memory. PU bearing wheel with stainless steel bolt have replaced metals in sleeve bearings, wear plates, sprockets, Rubber coated pulley rollers and various other parts, with benefits such as weight reduction, noise abatement and wear improvements being realized. which makes them ideal for use in harsh environments.

These bearing wheels feature a ball bearing/ two pcs of bearings and a cover made from pu, nylon, pom, teflon, peek, pok , poly-urethane, steel, or stainless steel. The wheels are flat, rounded, U, v groove and non-standard shape customised to meet your application needs.

Bearing mount and stud mount versions available. Bearing covers and bearings for track wheels, guide rollers, slide system, drawer, door, window...
