| Product Name | 51100 Ball Thrust Bearing 51100 Thrust Bearing 10x24x9mm single direction thrust ball bearing |
| Brand | Neutral/ No brand |
| Model No | 51100 |
| Sizes(mm) | 10x24x9mm |
| Material | Chrome steel washers+steel cage |
| Sealed Type | Open |
| Precision | P0, P6/ ABEC-1, ABEC-3 |
| Used | 51100 Ball Thrust Bearing 51100 Thrust Bearing 10x24x9mm single direction thrust ball bearing, use for all kinds of rolling spplication, Transmissions, transfer cases, engines, valve trains, steering and breaking system, axle supports,outboard engines, power tools, copiers, fax machines, paper moving equipment and appliances... |
| Packing | 10pcs/tube+ carton |
| Shipping Method | By Air, Sea, Train, Truck, or other DDP Service |

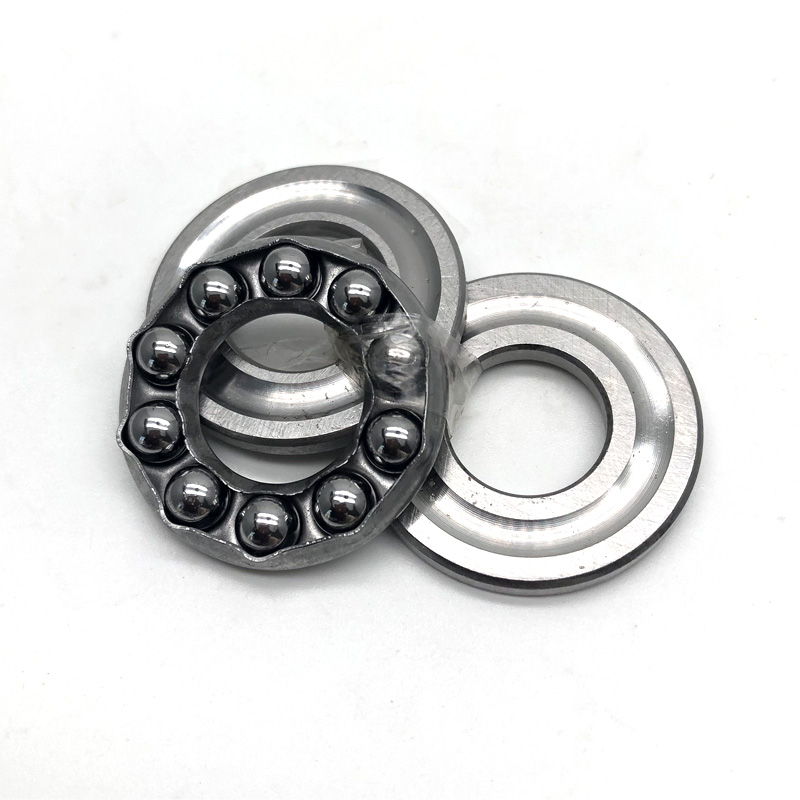

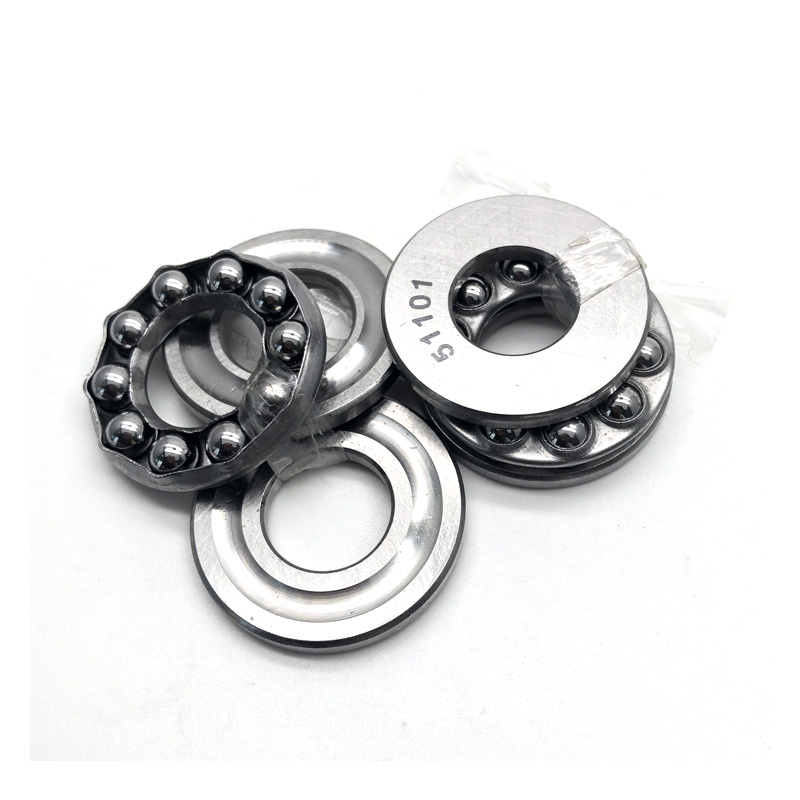

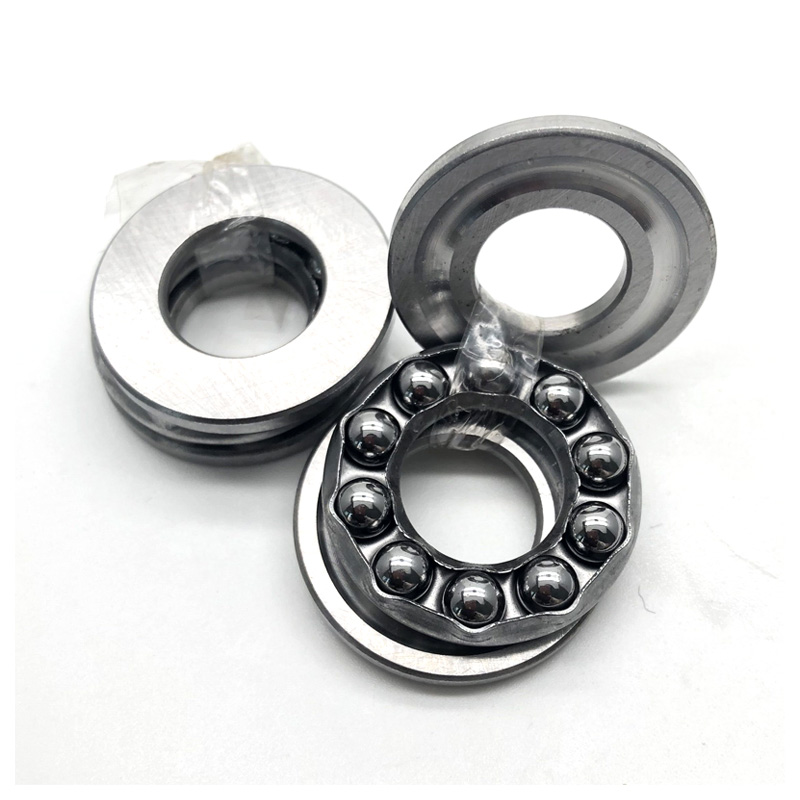

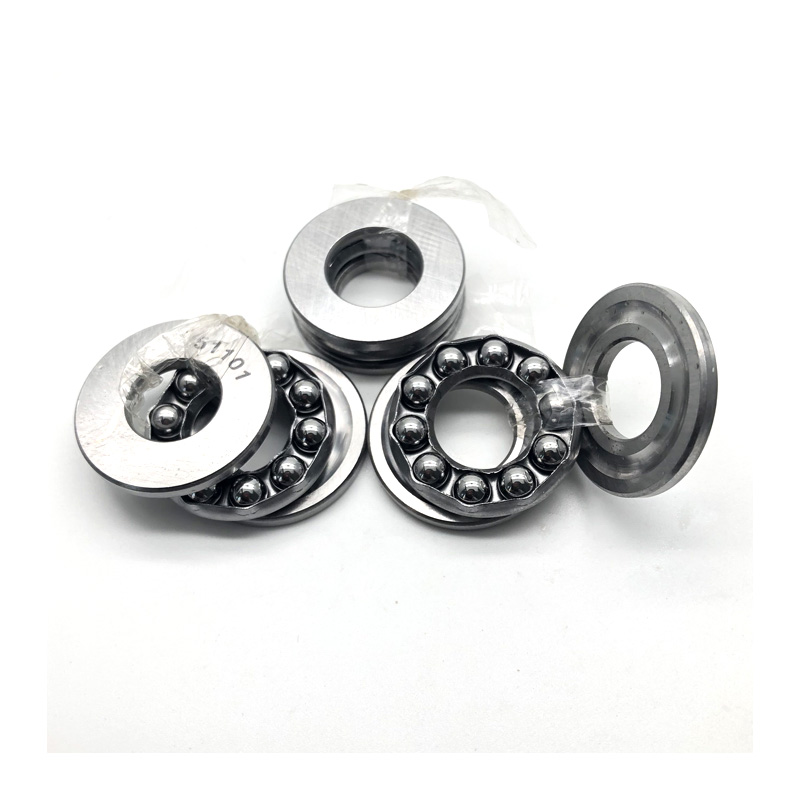

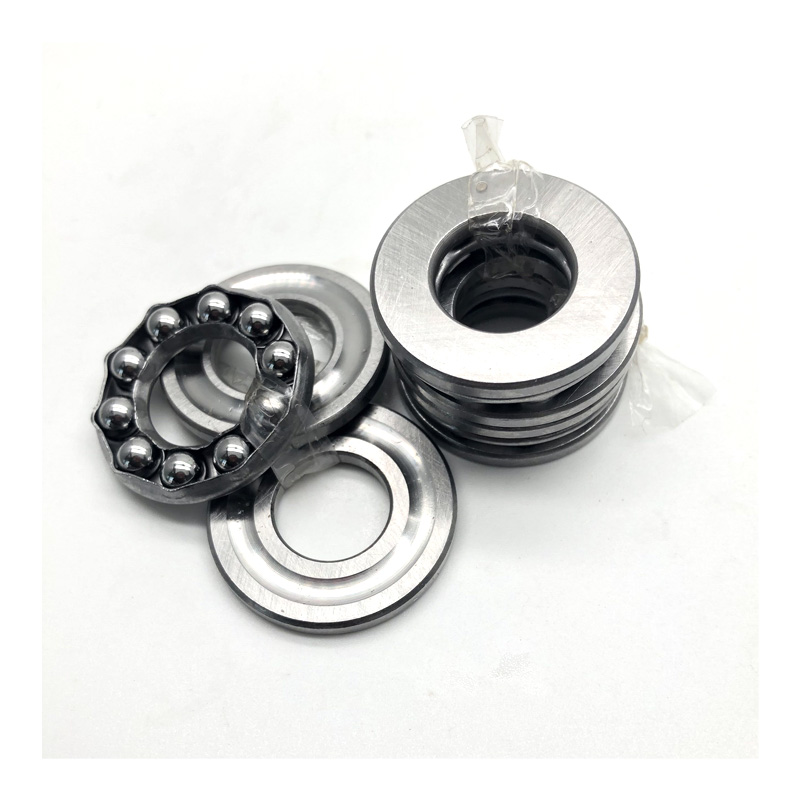

51100 Ball Thrust Bearing 51100 Thrust Bearing 10x24x9mm single direction thrust ball bearing
51100 Ball Thrust Bearing 51100 Thrust Bearing 10x24x9mm single direction thrust ball bearing, Inner 10mm diam. mm, Outer diam. 24mm, Width 9mm. it made of Chrome steel washers with steel cage , this list 51100 bearing widely use for rolling systems, all kinds of Transmissions, transfer cases, engines, valve trains, steering and breaking system, axle supports, outboard engines, power tools, copiers, fax machines, paper moving equipment and appliances...This 51100 bearing is a Single direction thrust bearing with a flat housing locating washer. The bearing's dimensions are 10x24x9mm.

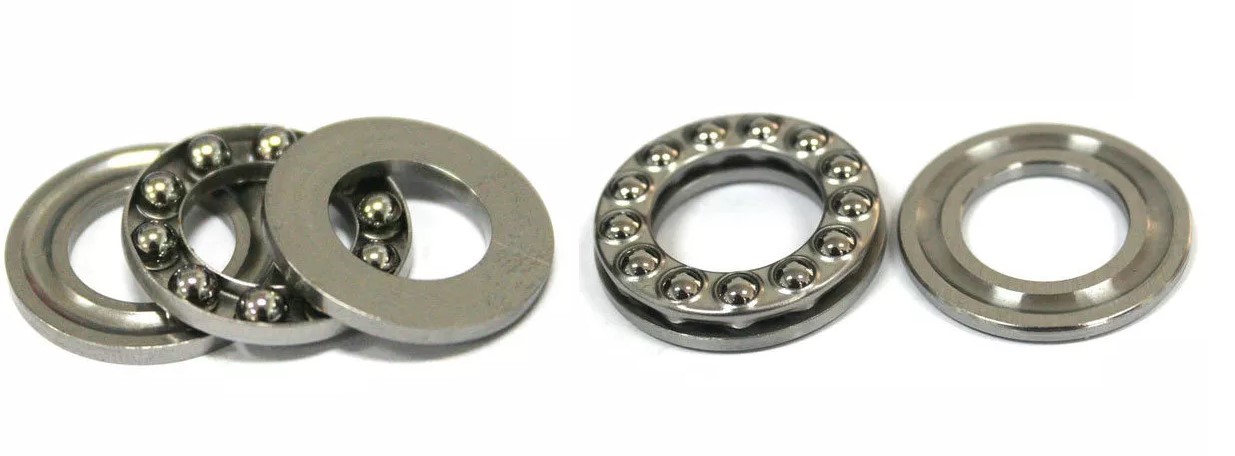

The 511 series hrust ball bearings that can accommodate axial loads in a single direction. The bearings in this series are designed with flat raceways and are suitable for applications with smaller load and speed requirements.They are used in a variety of light duty higher speed axial load applications. These include pumps, valves, machine

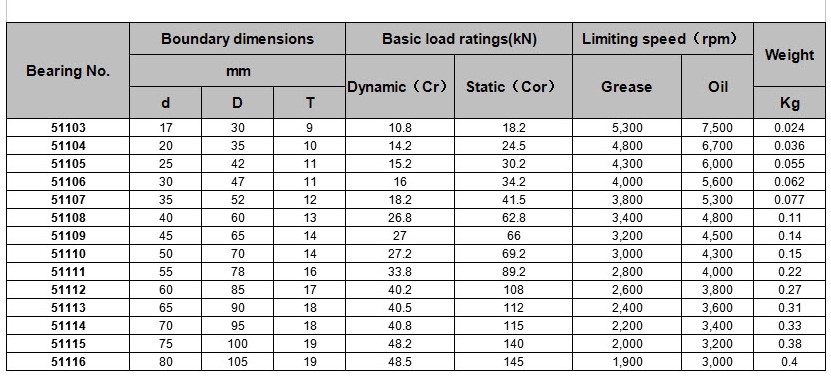

511 series thrust bearing model we make from 51100, 51101, 51102, 51103, 51104, 51105, 51106,51107, 51108, 51109, 51110, 51111, 51112, 51113, 51114, 51115....
F series thrust bearing model we make from F2-6M,F2.5-6M,F3-8M,F4-9M,F4-10M,F5-10M,F5-11M,F5-12M,F6-11M,F6-12M,F6-14M,F7-13M,F7-14.5M,F7-15M,F7-17M,F8-14M,F8-16M,F8-19M,F8-22M,F9-17M,F9-20M,F10-17M,F10-18M,F10-19M,F10-20M,F10-21M,F10-22M,F11-21M,F12-19M,F12-20M,F12-21M,F12-22M,F12-23M.
These bearings are typically manufactured with SAE 52100 chrome steel races but can be manufactured in stainless steel upon request. We also support customization of this bearing line to accommodate any special dimensional requirements.
APPLICATION:
Transmissions, transfer cases, engines, valve trains, steering and breaking system, axle supports, outboard engines, power tools, copiers, fax machines, paper moving equipment and appliances.
Needle roller bearing is a bearing which uses small cylindrical rollers.The difference between a needle roller bearing and roller bearing is the ratio of diameter and length of their rollers, when the ratio of the diameter and the length of roller of a roller bearing is between the interval of 0.1 to 0.4, that roller bearing is called a needle roller bearing. They are used to reduce the friction of a rotating surface.
