| Product Name | Electric Motors Bearings 627ZZ Bearing 7x22x7 Shielded Miniature Ball Bearings 627 ZZ |
| Brand | Neutral/ No brand |
| Model No | 627ZZ |
| Sizes(mm) | 7x22x7mm bearing |
| Material | Chrome steel, 52100 bearing steel/ 100Cr6 |
| Sealed Type | 2RS rubber seals/ ZZ metal shields/Open |
| Precision | P0, P6/ ABEC-1, ABEC-3 |
| Used | Electric Motors Bearings 627ZZ Bearing 7x22x7 Shielded Miniature Ball Bearings 627 ZZ of rolling spplication, tools, machines, furniture, printer machines, money machins, home appliance, cabinet, sliding doors, windows.... |

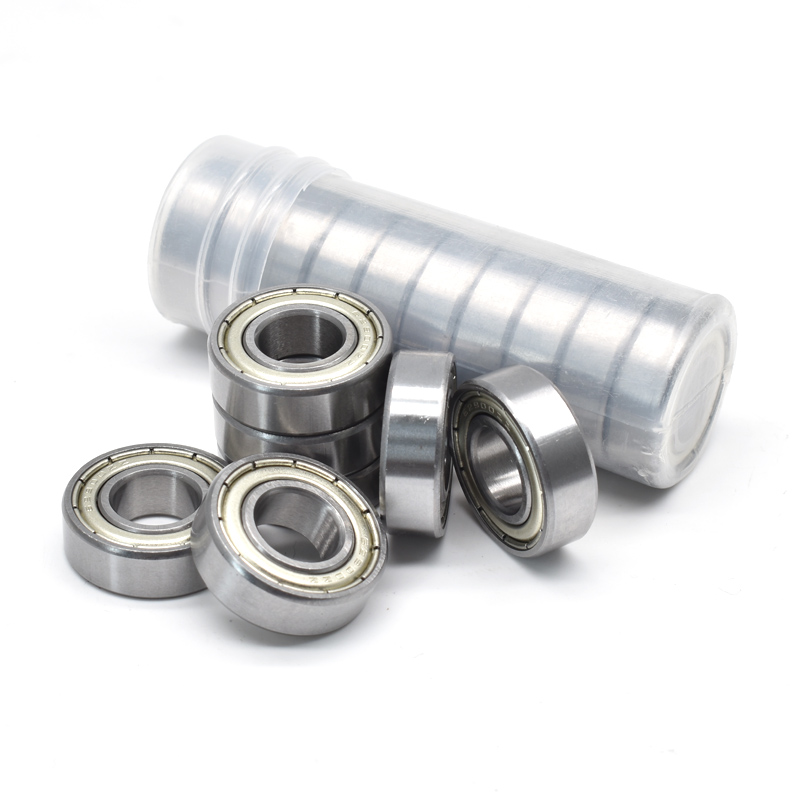

| Packing | 10pcs/tube+ carton |
| Shipping Method | By Air, Sea, Train, Truck, or other DDP Service |
627ZZ (Inner Dia.=7mm, Outer Dia.=22mm, Thickness=7mm)
627 ZZ deep groove ball bearing typically features two steel shields on both sides to protect
the internal components and retain lubrication. This design prevents contamination and helps prolong the bearing’s service life.
627 2Z bearings are commonly used in a variety of applications, including electric motors, machinery,
instruments, and more. They are particularly well-suited for high-speed operations due to their low
friction and smooth rolling action. Additionally, their compact size makes them suitable for applications with limited space.
Single row deep Groove Ball Bearings offer multiple options that serve a wide range of applications. The 'groove' is the depth of the raceway into which the balls fit, they typically consist of an Inner Ring, Outer Ring, Balls and Cage. Variants are available with Steel Shields, Rubber Seals (Contact/Non-Contact type), Snap-ring Grooves with Snap-rings, and a variety of Cage types.
These Bearings are designed for radial, axial, and also composite load applications, purpose of deep groove precision ball bearings is to reduce rotational friction and support radial and axial loads.Deep Groove Ball Bearings offer:
·Uni or bi-directional load carrying capability
·Very high-speed rotation
·Very good running accuracy
·Low noise and low friction torque
