| Product Name | 6805 6805RS 6805-2RS 25x37x7mm Deep Groove Ball Bearing Thin Section Intelligent Bearing for Robot |
| Brand | Neutral/ No brand |
| Model No | 6805RS |
| Sizes(mm) | 25x37x7mm bearing |
| Material | Chrome steel, 52100 bearing steel/ 100Cr6 |
| Sealed Type | 2RS rubber seals/ ZZ metal shields/Open |
| Precision | P0, P6/ ABEC-1, ABEC-3 |
| Used | 6805 6805RS 6805-2RS 25x37x7mm Deep Groove Ball Bearing Thin Section Intelligent Bearing for Robot of rolling spplication, tools, machines, furniture, printer machines, money machins, home appliance, cabinet, sliding doors, windows.... |
| Packing | 10pcs/tube+ carton |
| Shipping Method | By Air, Sea, Train, Truck, or other DDP Service |
6805 6805RS 6805-2RS 25x37x7mm Deep Groove Ball Bearing Thin Section Intelligent Bearing for Robot
6805RS Rubber seal on one side for RS, or rubber seals on both sides for 2RS, help to save grease and effectively protect grease from Impurities; Smooth rotation with low vibration, durable in use. Low noise,High speed,High temperature resistance,Resistance to high load.
6805 2RS Bearing Made of high quality chrome steel with double rubber seal, pre-lubricated/greased from the manufacturer, low friction coefficient and stable performance.
6805-2RS Ball Bearing Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment, and so on.
Single row deep Groove Ball Bearings offer multiple options that serve a wide range of applications. The 'groove' is the depth of the raceway into which the balls fit, they typically consist of an Inner Ring, Outer Ring, Balls and Cage. Variants are available with Steel Shields, Rubber Seals (Contact/Non-Contact type), Snap-ring Grooves with Snap-rings, and a variety of Cage types.
These Bearings are designed for radial, axial, and also composite load applications, purpose of deep groove precision ball bearings is to reduce rotational friction and support radial and axial loads.Deep Groove Ball Bearings offer:
·Uni or bi-directional load carrying capability
·Very high-speed rotation
·Very good running accuracy
·Low noise and low friction torque

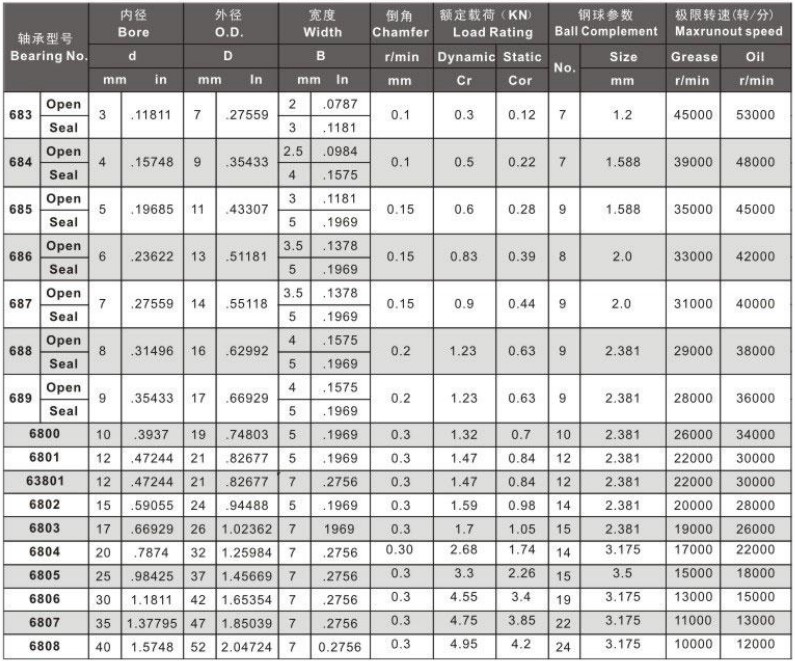

6805RS bearing dimensions and batch order specification
This 6805 chrome steel bearing has a 25 mm bore, 37 mm outside diameter and 7 mm width. The listed material is 52100 / 100Cr6 bearing steel. Confirm all three dimensions, shaft and housing fits, and the available axial space against your assembly drawing before ordering.
Choose the required rubber sealing arrangement
6805RS specifies a rubber seal on one side; 6805-2RS specifies rubber seals on both sides. Put the full designation, clearance and required lubricant on the inquiry. Confirm both faces on the drawing or approved sample. Stainless steel and hybrid ceramic versions require a separate material specification; this chrome steel product must not be treated as the same configuration solely because the base model matches.
OEM and replacement batch information
Provide quantity per batch, existing bearing marking, mounting drawing or both-face photographs, speed, load, operating temperature and exposure conditions. Confirm the required inspection, marking, packing and delivery destination. A replacement with a different outside diameter or width requires an installation review.
Sample configuration, minimum order, price and lead time are confirmed against the actual specification.
Request a 6805RS / 6805-2RS batch quotation or email admin@zotybearing.com with your drawing and quantity.
Related selection: 6800 series ball bearings and deep groove ball bearing range.
