| Product Name | 6802ZZ 15x24x5 Shielded Ball Bearings Steel Cage 15 mm Bore ID 24 mm OD 5 mm Width Double Shielded |
| Brand | Neutral/ No brand |
| Model No | 6802ZZ |
| Sizes(mm) | 15x24x5mm bearing |
| Material | Chrome steel, 52100 bearing steel/ 100Cr6 |
| Sealed Type | 2RS rubber seals/ ZZ metal shields/Open |
| Precision | P0, P6/ ABEC-1, ABEC-3 |
| Used | 6802ZZ 15x24x5 Shielded Ball Bearings Steel Cage 15 mm Bore ID 24 mm OD 5 mm Width Double Shielded, use for all kinds of rolling spplication, tools, machines, rc model, rc car, rc wheel,furniture, printer machines, money machins, home appliance, cabinet, sliding doors, windows.... |
| Packing | 10pcs/tube+ carton |
| Shipping Method | By Air, Sea, Train, Truck, or other DDP Service |
Thin section wall ball bearing 6802 6801 6803 6804 6805 6807 6808 6810 6811 6809 6810 ZZ Deep Groove Ball Bearing for Packing Machine

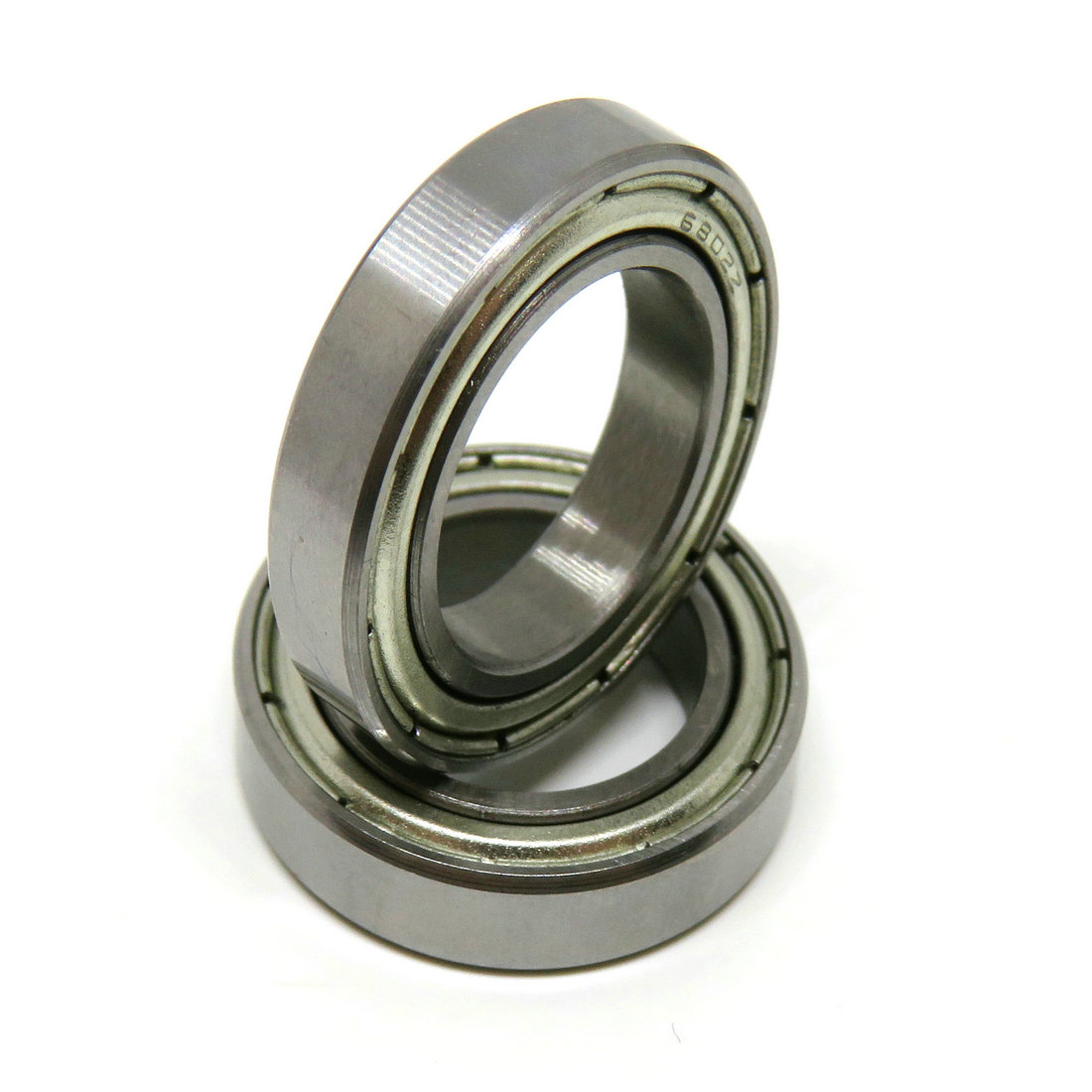

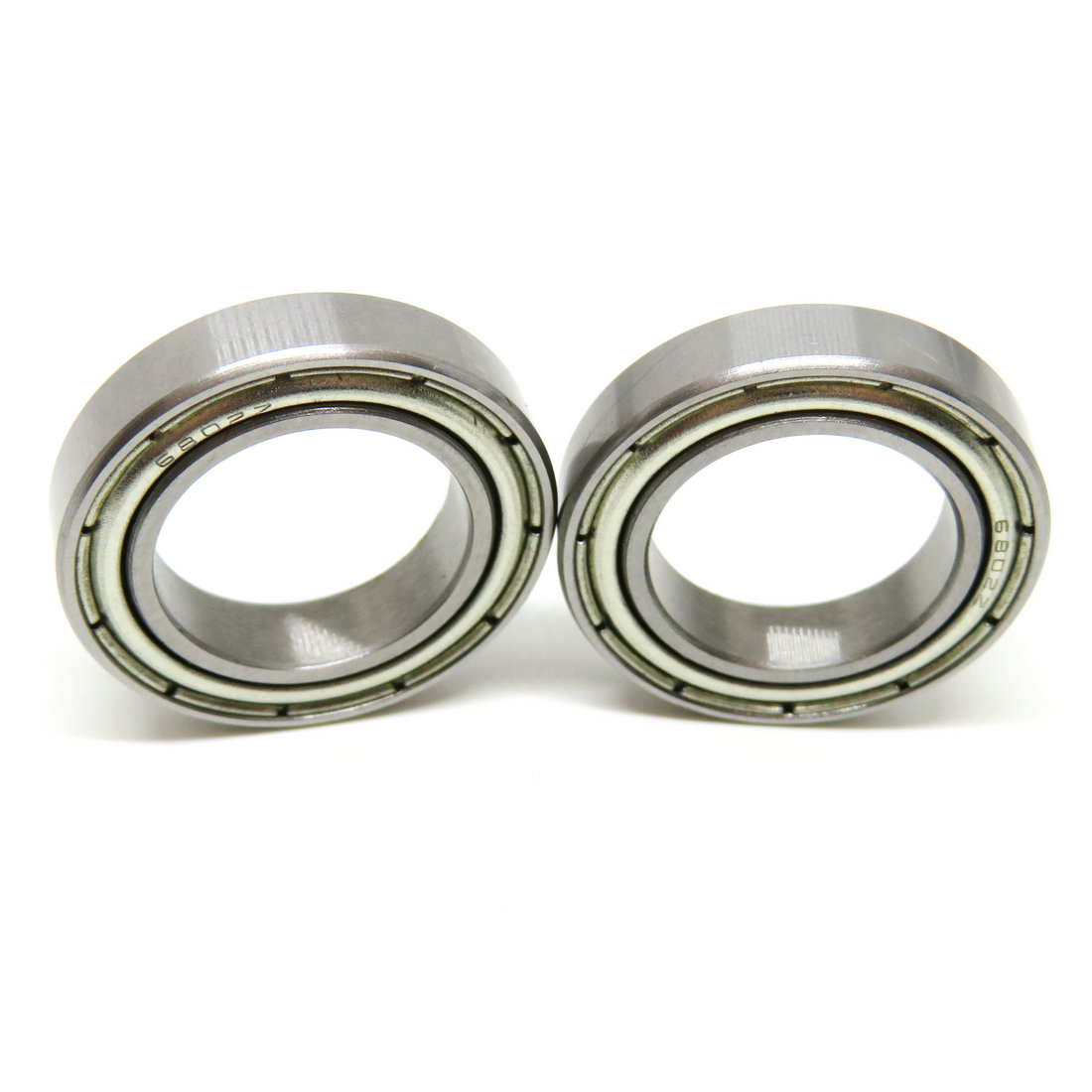

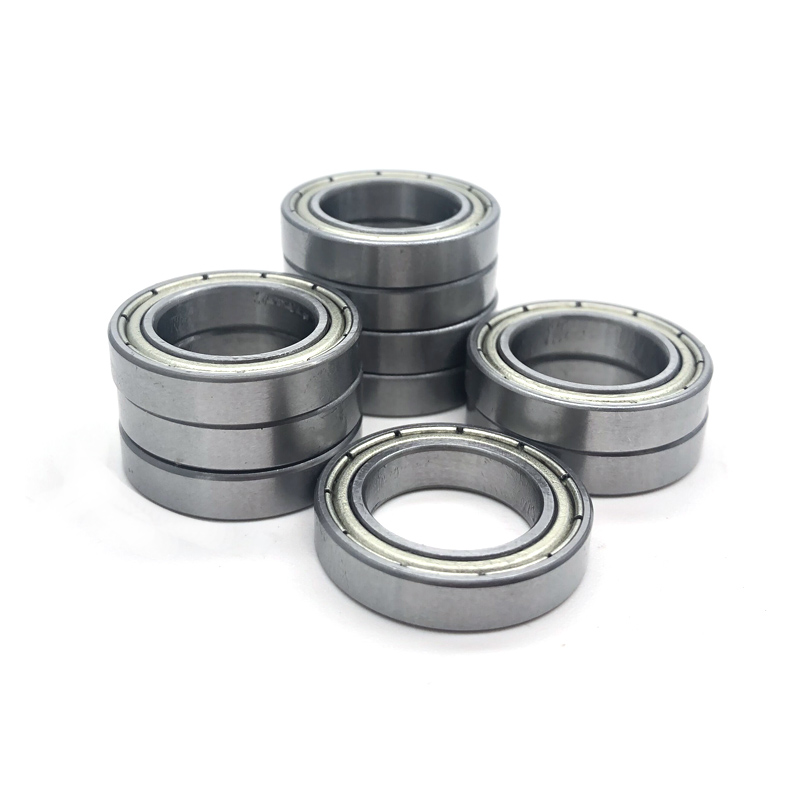

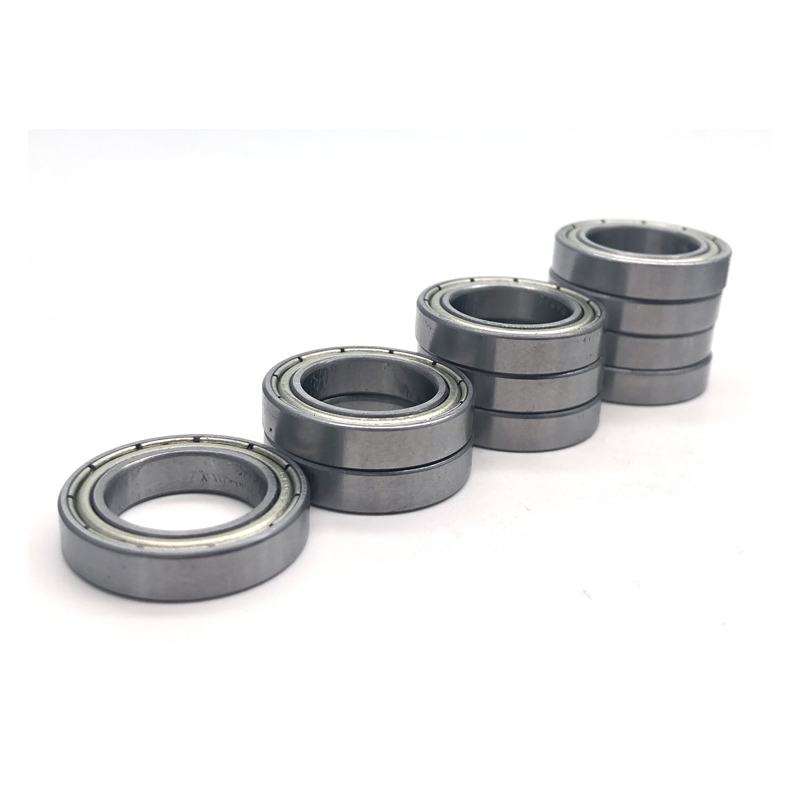

6802ZZ 15x24x5 Shielded Ball Bearings Steel Cage 15 mm Bore ID 24 mm OD 5 mm Width Double Shielded
Single Row Ball Bearing; 15MM Bore; 24MM Outside Diameter; 5MM Outer Race Width; 2 Metal Shields; ABEC 1 | ISO P0; No Filling Slot; No Snap Ring; C0-Medium Internal Clearance; Steel Cage
Item: Double Shielded Ball Bearings 6802ZZ
6802ZZ Material: Chrome Steel
6802ZZ Size: 15mm x 24mm x 5mm
Dimensions: 15*24*5 mm/Metric
Dynamic load rating Cr: 2,080 N
Steel cage evenly spaces balls for reduced friction, vibration and noise.
Shields on both sides to keep lubricant in and contaminants out.
CN (normal) radial internal clearance for applications that do not involve thermal expansion or atypical precision.
68 series small model size from 681 1x3x1mm, 681xzzz 1.5x4x2mm, 682zz, 682xzz, 683zz, 684zz, 685zz, 685zz, 686zz, 687zz, 688zz, 689zz, 6800zz 6801zz 6802zz 6803zz 6804zz 6805zz 6806zz 6807zz 6808zz 6809zz 6810zz 6811zz 6812zz 6813zz 6815zz 6816zz... also available rubber seals.
6800 SeriesThin-walled bearings are simple structure and easy to use, are the most widely application bearing, mainly used to support radial load. This kind of bearings with small friction coefficient, low noise, high speed limit, but is not able to bear impact strike, not suitable for a heavy load. According to the user's requirements, we can provide high precision (P6 ,P5), all kinds of clearance and vibration noise level (Z1 and Z2 or V1, V2) bearing.
Thin-walled bearing cage usually for steel plate stamping ribbon cage, and engineering plastic, copper solid cage also can be used. Large bearing used car system metal solid cage more. according to different use environment ,Sealed bearing can add corresponding bearing special grease. Thin-walled deep groove ball bearing is widely used in robot, automation control mechanical and the occasions which installation space narrow and low load.
Zoty bearing supply RC ball bearing set, hybrid ceramic bearing, stainless steel ball bearing , flanged bearings, one way bearing... widely used for RC models, racing, trucks, boat, cars..
