DR Series Plastic Drawer Rollers for OEM Drawer and Cabinet Assemblies
ZOTY supplies DR series screw-mounted plastic rollers for cash drawers, POS equipment, office cabinets and other drawer slide mechanisms. Choose the complete roller geometry and mounting dimensions to match your track; the DR number alone does not identify an interchangeable assembly.
Series selection
| Series | Listed wheel outside diameter |
|---|
| DR19 | 19 mm |
| DR22 | 22 mm |
| DR24 | 24 mm |
| DR26 | 26 mm |
| DR28 | 28 mm |
| DR30 | 30 mm |

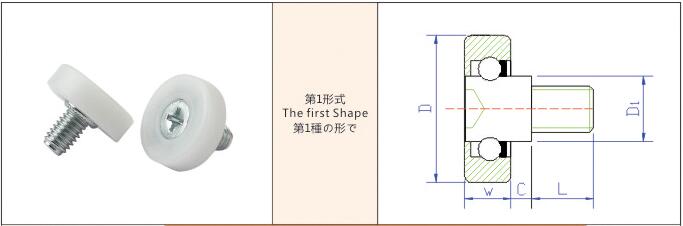

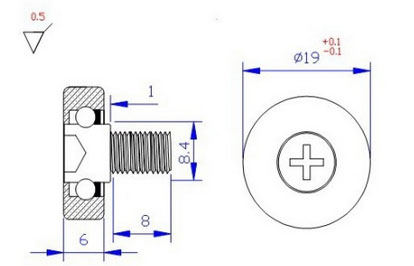

The specification and drawing below describe DR19C1L8: M6 screw, 19 mm wheel diameter and 6 mm wheel width, with a zinc-plated screw and POM outer wheel. Other widths, profiles and screw dimensions depend on the complete model. Use the drawing for final fit confirmation.
Materials, mounting and customization
The listed construction uses a POM outer wheel and a zinc-plated screw. The existing DR range also includes bearing configurations and shaft options; chrome steel or stainless steel bearings and 304 stainless steel shaft options can be reviewed against your drawing. Confirm the material of every component in the quotation. OEM and ODM requests can be assessed from a drawing or sample.
Tell us the load per roller, track material and profile, travel speed, duty cycle and operating environment. This page does not specify a tested load, speed or service-life rating for every DR model. Suitability and the final assembly must be confirmed before an order.
Request a DR series quotation
Send the complete model if known, wheel diameter and width, profile, screw diameter and pitch, threaded length, shoulder dimensions, material preference, drawing or sample photos, sample quantity and production quantity. For a replacement, include the original wheel and track measurements.
Use Quotation Now beside the product images, or send your DR roller drawing and RFQ. Compare the existing DR roller models. For a door mechanism rather than a drawer, see sliding and automatic door roller selection.
Existing product specifications and drawings
| Product Name | DR19 DR22 DR24 DR26 DR28 DR30 cash register wheel fridge roller storage drawer slide plastic drawer roller for incubator |
| Brand | Neutral/ No brand |
| Model No | DR19C1L8 |
| Sizes(mm) | M6x19x6mm, pom roller |
| Material | Zinc plated screw+POM coated |
| Type | DR POM Roller with screw |
| Features | High load capacity, smoothly, long working life |
| Used | DR19 DR22 DR24 DR26 DR28 DR30 cash register wheel fridge roller storage drawer slide plastic drawer roller for incubator, use for all kinds of rolling spplication, cash drawers, vending machines,home appliance, cabinet, sliding doors, guide system, desk office drawer, windows.... |
| Packing | 10pcs/tube+ carton |
| Shipping Method | By Air, Sea, Train, Truck, or other DDP Service |

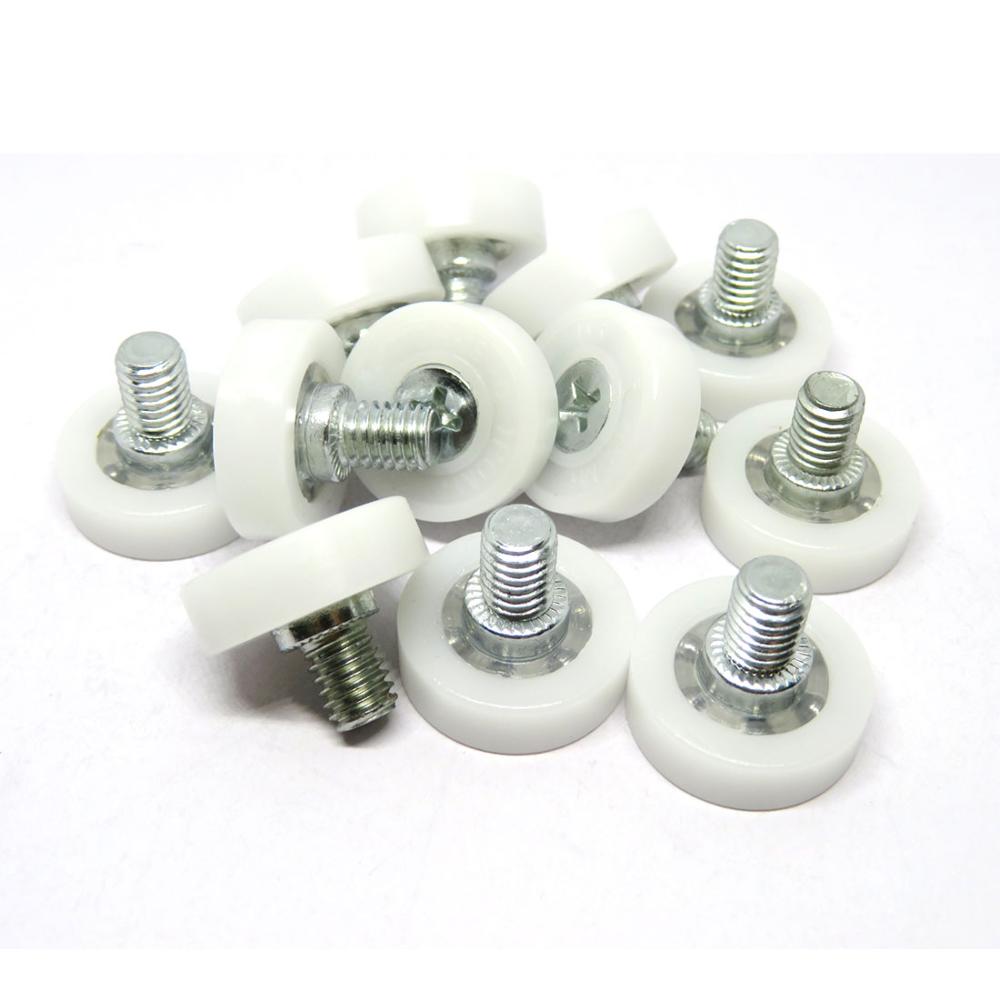

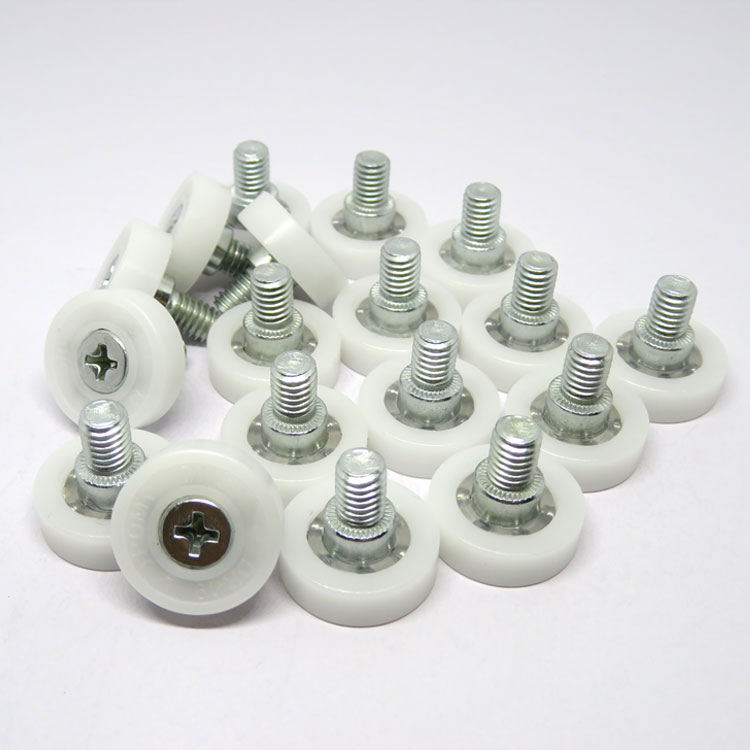

Plastic Drawer Roller DR19C1L8 Wheels DR19 For Cash Registers Picture and Drawing:
1. Roller with high load capacity
2. Zinc plated bolt, POM covered, M6 screw
3. Low noise, stable performance and durable
DR19 DR22 DR24 DR26 DR28 DR30 cash register wheel fridge roller storage drawer slide plastic drawer roller for incubator

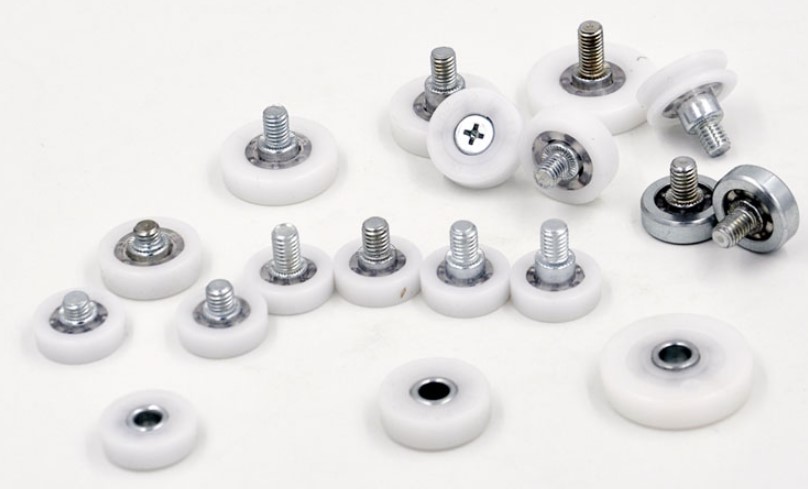

Zoty bearing provide high quality plastic roller wheels, DR series drawer rollers DR19 OD19mm, DO19 OD19mm, DR22 OD22mm, DR24 OD24mm, DR26 OD26mm, DR28 OD28mm, DR30 OD30mm, DO, DU series roller wheels. Meanwhile, zoty bearing have low noise plastic coated bearing roller, roller wheel inside with a pieces of single row deep groove ball bearing, bearing material use chrome steel or stainless steel(rustproof) , Shaft material common used Zinc plated, 304 stainless steel shaft also available, + stype screw bore or hexagon screw, according to request, OEM and ODM is acceptable.
DR POM Roller with scew widly use for countless applications, such as POS systems, POS machine,drawer slide systems, cash registor, cash drawer, cabinet, desk office cabinet, wardrobe, refrigerator, vending machine....
