DR22C1L8 POM Drawer Roller with M6 Screw

DR22C1L8 is a screw-mounted plastic roller for drawer slide and cabinet mechanisms. Its listed configuration is an M6 screw, 22 mm wheel outside diameter and 7 mm wheel width, with a POM outer wheel and zinc-plated screw.

Check the fit before ordering

Confirm the wheel profile, track clearance, screw pitch, threaded length and shoulder dimensions against the product drawing below. A 22 mm outside diameter alone does not establish compatibility with an existing drawer system. For a replacement, send photos and measurements of the original roller and track.

OEM and wholesale enquiries

Suitable enquiries include cash drawer, POS equipment and cabinet drawer projects. Send your drawing or sample requirements, load per roller, travel speed, duty cycle, environment, sample quantity and production quantity. OEM and ODM requests are reviewed against the required assembly.

The listed material for this model is POM. A different polymer, ball or stud material must be confirmed as a separate configuration in the quotation. No numerical load, speed or service-life rating is specified here.

Request a DR22C1L8 quotation, or use Quotation Now beside the product images to include this product name. Compare DR19, DR22, DR24, DR26, DR28 and DR30 drawer roller models.

Existing product specifications and drawings

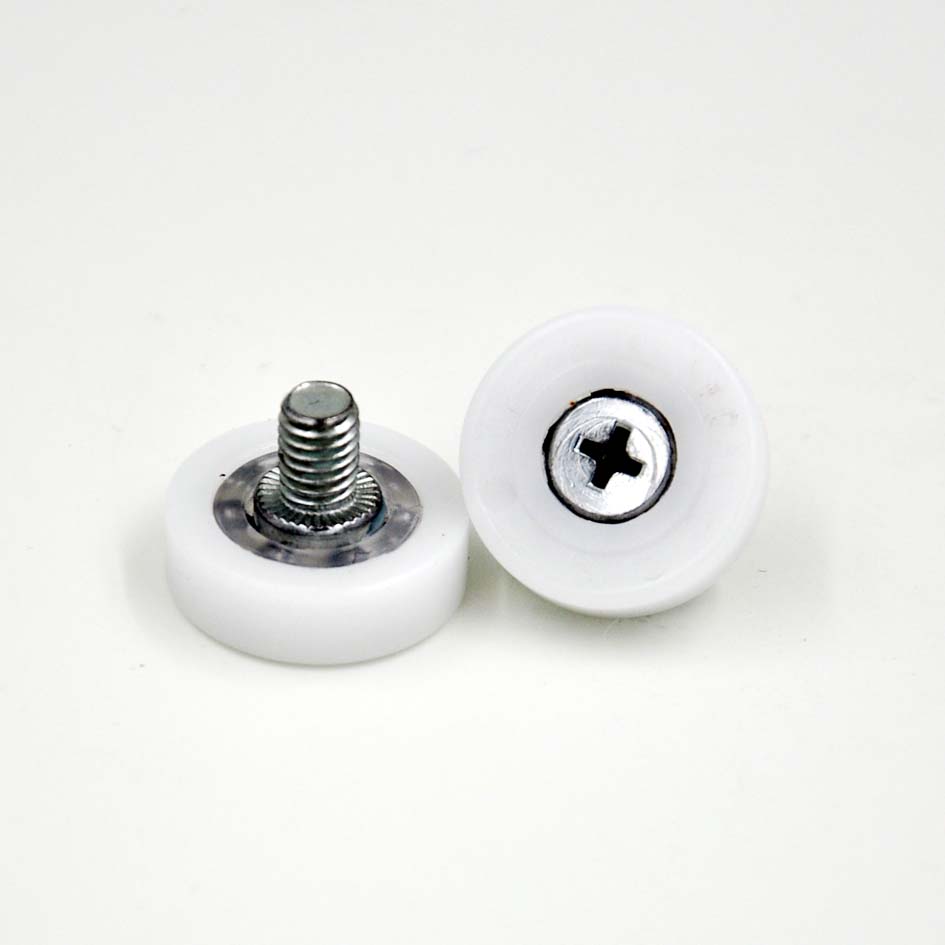

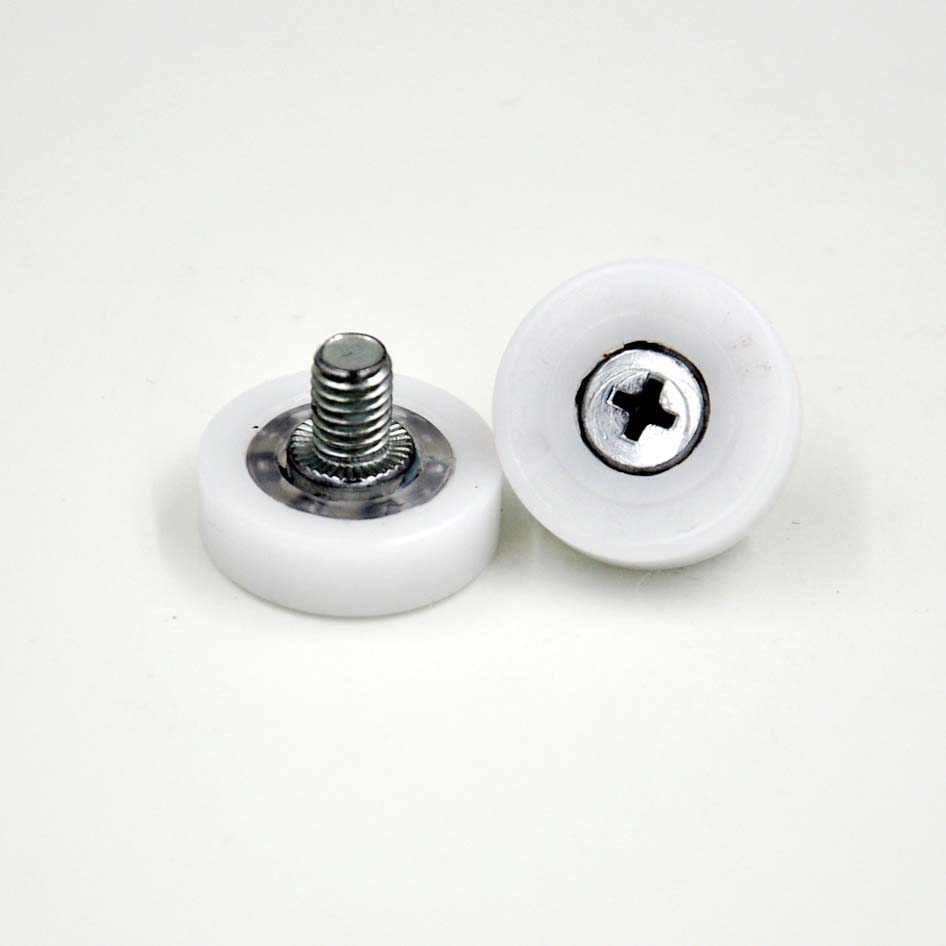

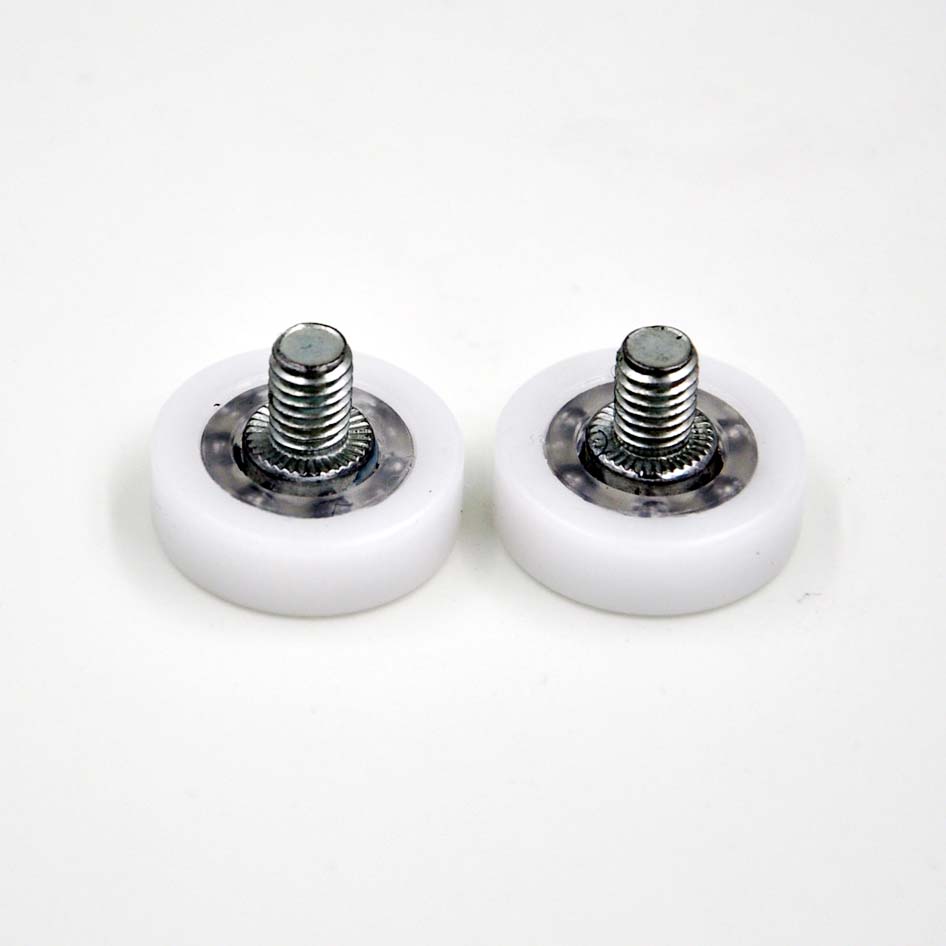

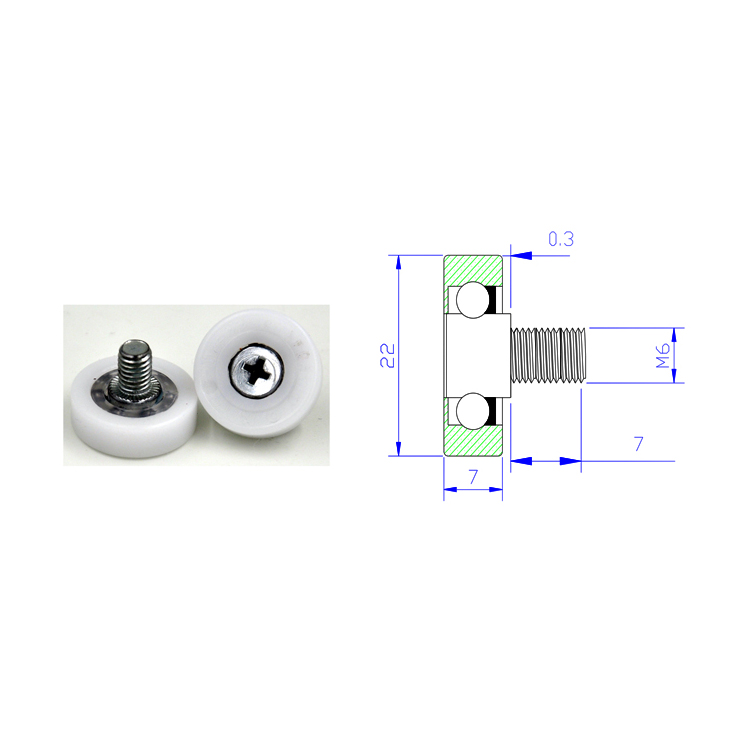

Plastic Drawer Roller DR22C1L8 Wheels DR22 For Cash Registers Picture and Drawing:

1. Roller with high load capacity

2. Zinc plated bolt, POM covered,

3. Low noise, stable performance and durable
4. POM roller body with loose steel balls
5. Doors And Roller Mute Wheel

DR22C1L8 M6x22x7mm roue a rouleaux en plastique rodillo de cajon dr-22 pat 287839 drawer rollers 20mm 12 drawer roller cabinet

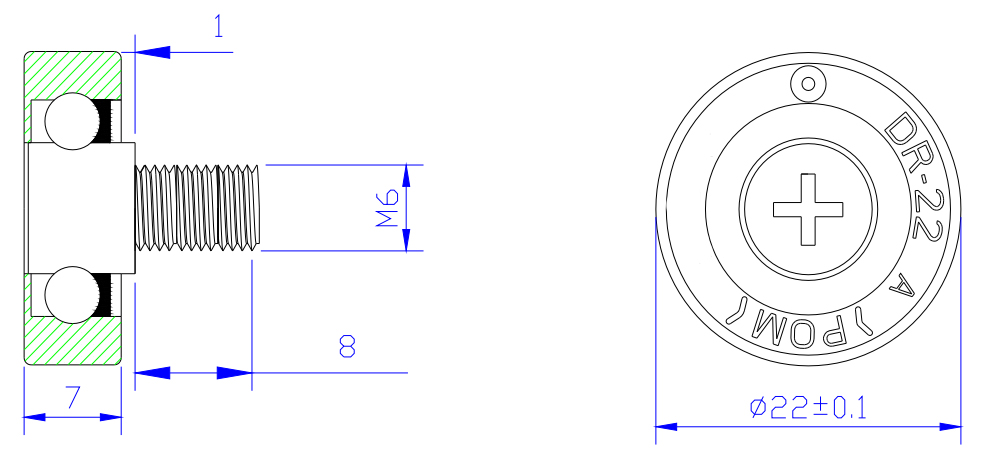

DR22C1L8 has a POM roller body and loose steel balls running directly in the roller assembly, without a separate ball-bearing unit. The screw is zinc-plated. The ZOTY 2026 roller catalogue lists an M6 thread, 22 mm outside diameter, 7 mm wheel width, C = 1 mm shoulder dimension and L = 8 mm stud dimension. Check the matching drawing for installation clearances. ZOTY also supplies other plastic-coated roller families with separate bearings; those are different constructions and must be specified separately.

DR POM Roller with scew widly use for countless applications, such as POS systems, POS machine,drawer slide systems, cash registor, cash drawer, cabinet, desk office cabinet, wardrobe, refrigerator, vending machine....
