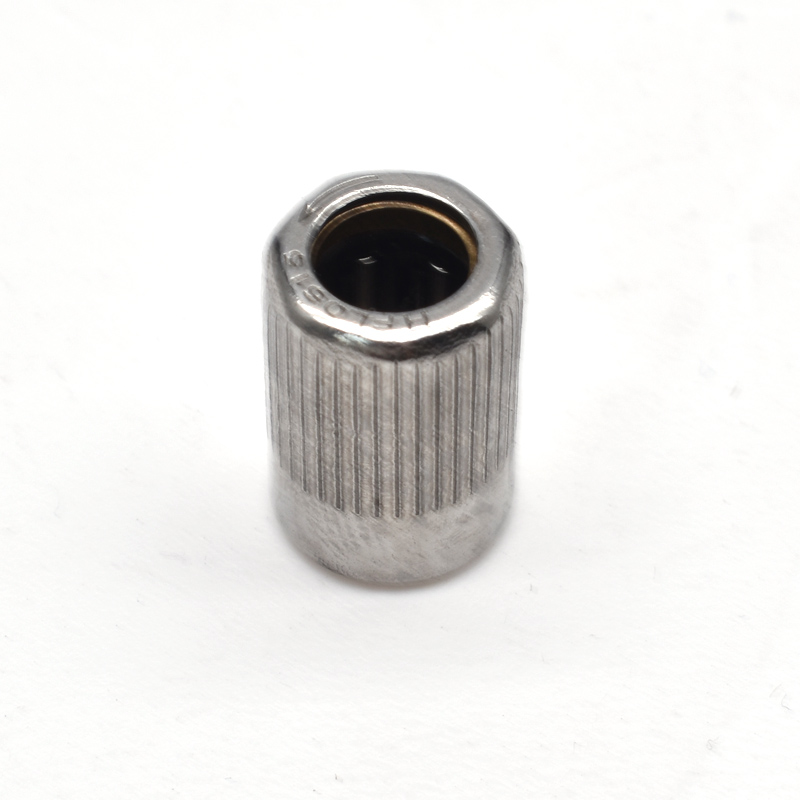

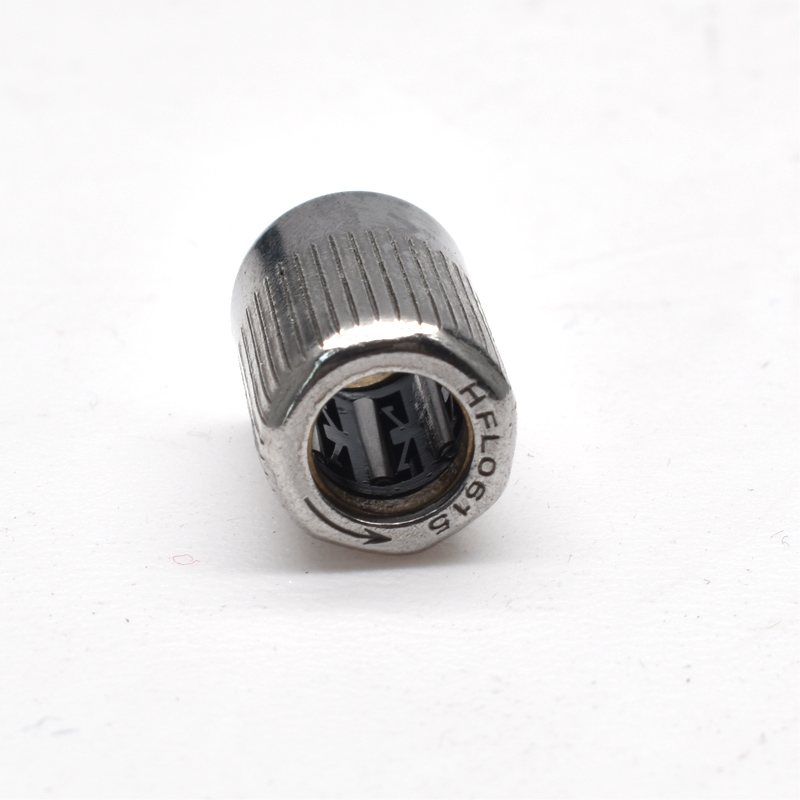

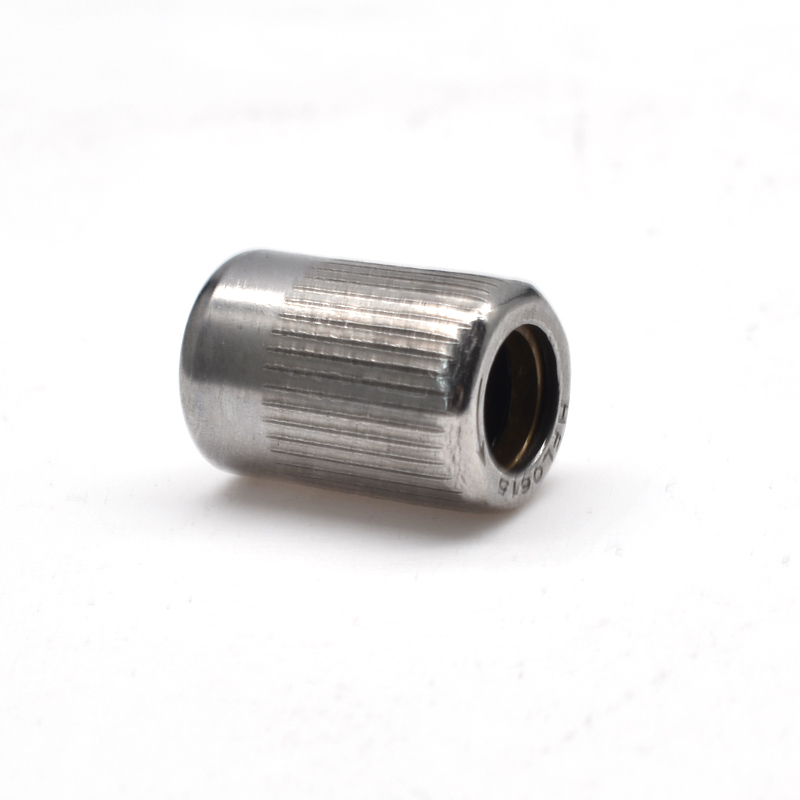

6x10x15mm HFL0615 Drawn Cup Roller HFL Series One Way Clutch Bearing

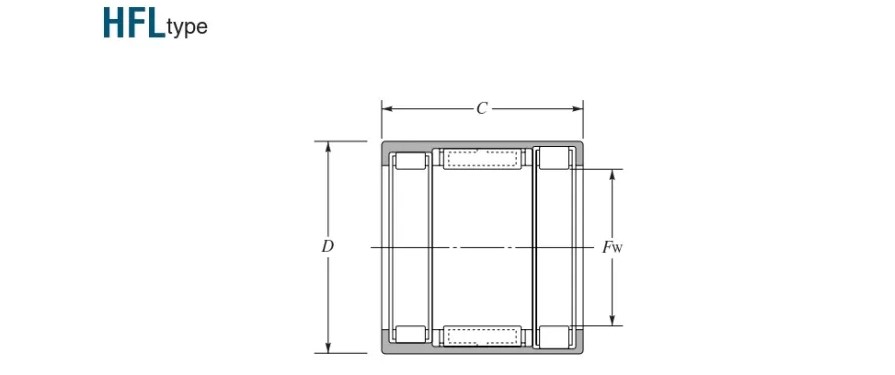

HFL0615 Small Needle Bearings 6x10x15mm HFL Series Drawn Cup Clutch Needle Roller Bearings inner bore 6mm, length 15mm,  outer diameter10mm, it made of carbon steel rings with chrome steel needles , this list HFL0615 one way clutch needle bearing size is 6x10x15mm. widely use for rolling systems, all kinds of Transmissions, transfer cases, engines, valve trains, steering and breaking system, axle supports, outboard engines, power tools, copiers, fax machines, paper moving equipment and appliances...

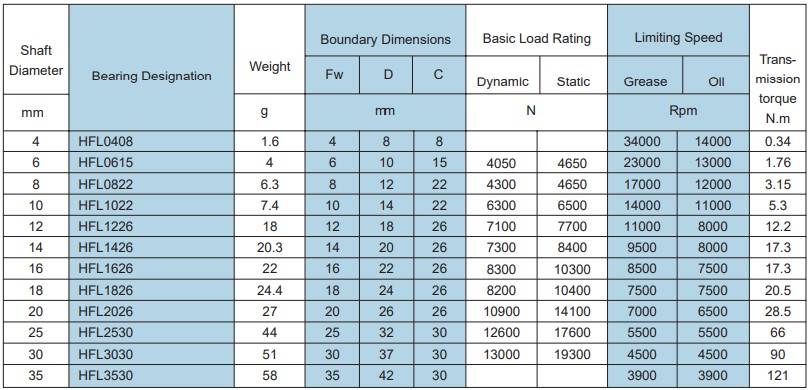

HFL series one way clutch bearing model from HFL0408,HFL0615,HFL0822,HFL1022,HFL1226,HFL1426,HFL1626 ,HFL1826,HFL2026,HFL2530,HFL3030,HFL3530...

HF series one way needle bearing model from HF0406, HF0409,HF0612,HF0812,HF1012,HF1216,HF1416,HF1616,HF1816,HF2016,HF2520,HF3020,HF3520,HF3530..

HK series one way needle bearing HK0306,HK0408,HK0509,HK0608,HK0609,HK0709,HK0808,HK0810,HK0908,HK0910,HK0912,HK1010,HK1012,HK1015,HK1210,HK1212,HK1312,HK1412,HK1512,HK1516,HK1516,HK1612,HK1616,HK1712,HK1812,

HK1816,HK2010,HK2012,HK2016,HK2020,HK2210,HK2212,HK2216,HK2220,HK2512,HK2516,HK2520,HK2526,HK2816,HK2820...

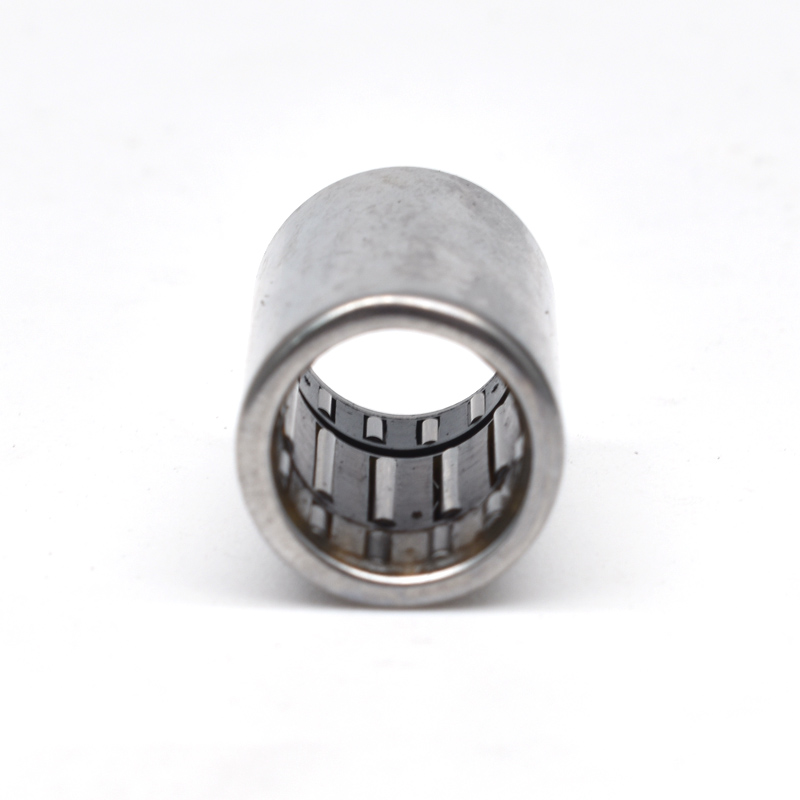

Drawn cup needle roller bearings are typically used in applications where the housing bore cannot be used as a raceway for a needle roller and cage assembly, but where a very compact and economical bearing arrangement is required. Owing to their large number of rollers, the bearings have a high load carrying capacity and stiffness.

High radial load carrying capacity, High stiffness, Very low cross-sectional height. Drawn cup needle roller bearings support radial loads and reduce friction between rotating components,with a drawn outer shell serving as a raceway for the rollers. The low cross section of drawn cup bearing provides high load‐carrying capacity with minimum required space. Drawn cup bearings are easily installed with a press fit in the housing.

Needle bearings have a large surface area that is in contact with the bearing outer surfaces compared to ball bearings. Additionally there is less added clearance (difference between the diameter of the shaft and the diameter of the bearing) so they are much more compact. The typical structure consists of a needle cage which orients and contains the needle rollers, the needle rollers themselves, and an outer race (sometimes the housing itself).

Radial needle bearings are cylindrical and use rollers parallel to the axis of the shaft. Thrust needle bearings are flat and use a radial pattern of needles.

APPLICATION:

Transmissions, transfer cases, engines, valve trains, steering and breaking system, axle supports, outboard engines, power tools, copiers, fax machines, paper moving equipment and appliances.

Needle roller bearing is a bearing which uses small cylindrical rollers.The difference between a needle roller bearing and roller bearing is the ratio of diameter and length of their rollers, when the ratio of the diameter and the length of roller of a roller bearing is between the interval of 0.1 to 0.4, that roller bearing is called a needle roller bearing. They are used to reduce the friction of a rotating surface.
