NM355A A set of 14inch 355mm Heavy duty Industrial mecanum wheel with PU roller(Load Capacity 4000KG)
Zoty Industry Omni wheel&Mecanum wheel is heavy load Omni wheel&Mecanum wheel. Each High-strength wheel hub and great-quality material ensure the series an
excellent performance. AGV Industry Omni wheel&Mecanum wheel series Omni wheel also adapt to various indoor and outdoor occasions.It can be used in industry .
install on the heavy duty omni moving platform to make the platform rotate to omni directions.And it mainly used in industry , workshop, AGV and so on . It can even used
on stage show equipment . AGV Drive Wheels, AGV Mecanum Wheel, Robot Drive Wheels, AC Motor Drive Wheel, Heavy Duty Robot Mecanum Wheels, Automated Guided Vehicle Drive Wheel, please contact with Zoty for solution.

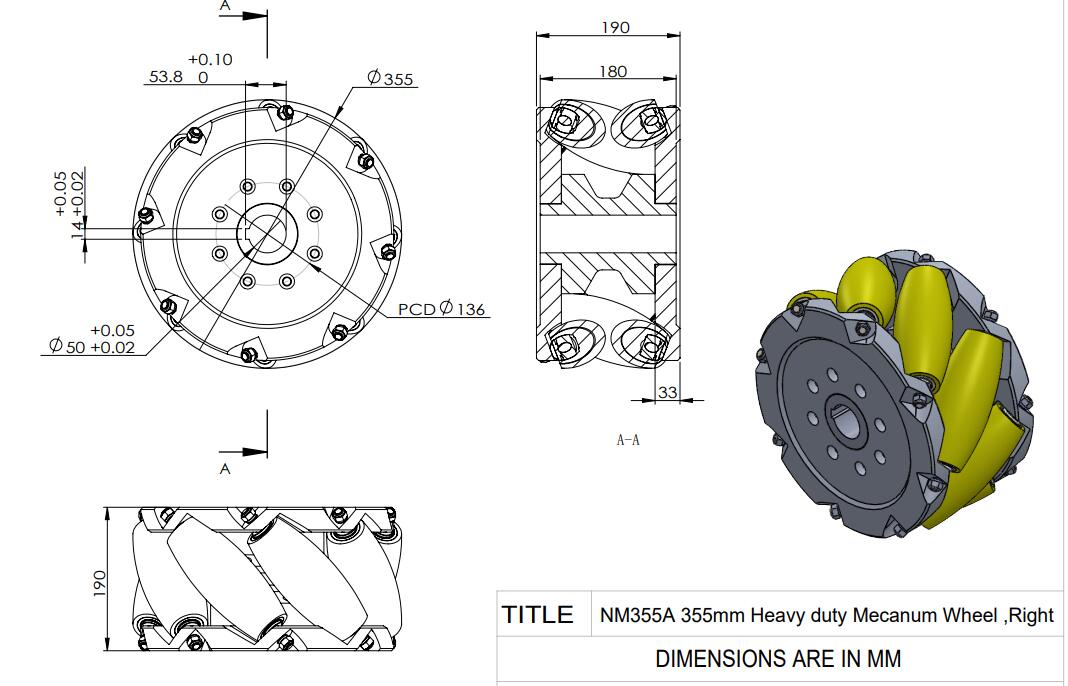

Specifications:
Diameter: 355mm（14 inch)
Width: 190mm
Main shaft hole:φ50mm(customizable)
Number of Rollers: 8
Number of Plates: 2
Body material: Aluminum alloy
Roller material: Aluminum core with Polyurethane coated
Net weight: 45kg *4
Load capacity: 4000kg/Set
Set= 4pcs, including 2pcs right wheels and 2pcs left wheels

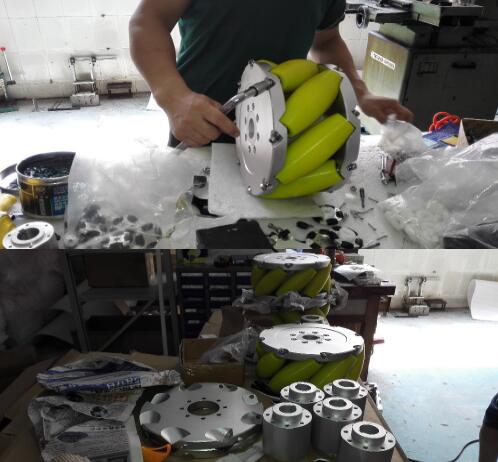

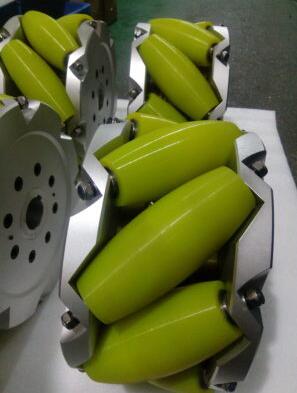

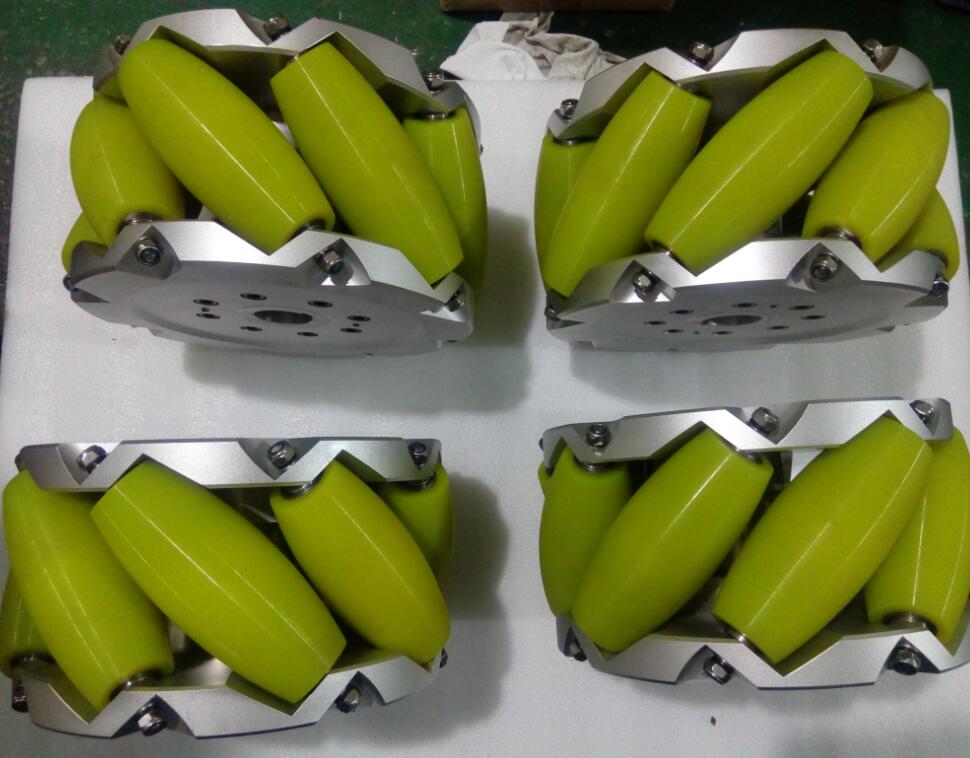

Load capacity 4000KG 355mm mecanum wheel 14 inch mecanum NM355A pictures as below:
What are the advantages and disadvantages of the mecanum wheel?
Much easier to climb ramps with Mecanums. To my understanding Mecanums are also more efficient in forward and reverse directions (like a normal wheel) while still giving you lateral mobility. Omni-Drives will give you true omnidirectional motion.
The advantages of the Mecanum wheel and the omnidirectional wheel are flexibility and convenience, and the disadvantage is expensive. The omnidirectional wheel, as the name suggests,
can move in any direction, at any angle, and in any direction. mecanum wheel these rollers having an axis of rotation at 45° to the plane parallel to the axis of rotation of the wheel.
Heavy duty mecanum wheel load capacity specifications:
Large size 355mm, 375mm, 508mm, ours newest design heavy duty type mecanum wheel can pay load 12,000kg per set of wheels.
How you connect the heavy duty mecanum wheel to motor drive? you may need to customize some shaft, hub, washer....
