100mm Aluminium alloy heavy duty double aluminum Omni-directional wheel 14182 features:

This 100mm heavy duty double aluminum Omni-directional wheel is a robust, durable and double row wheel that provides easy 360 degree movement,

with rotational and sideways maneuverability. The Omni wheel is used for robotic, trolleys, transfer conveyor, shipping carts, luggage and so on。

Specifications:

Diameter:100mm

Width: 66mm

Number of Plates:2

Number of Plates:6

Body material:Aluminium alloy

Roller material：Polyurethane

Roller bearing : Bearing Rollers

Net weight： 816g

Load capacity:80KG/each

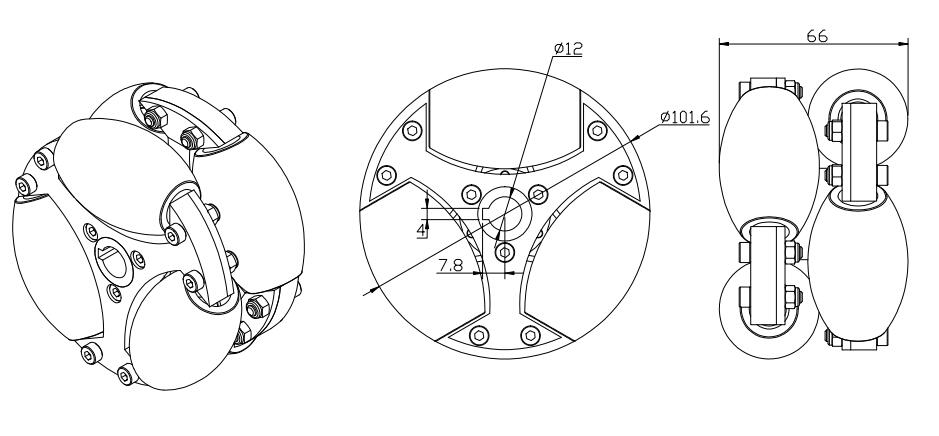

100mm Aluminium alloy heavy duty double aluminum Omni-directional wheel 14182 pictures as below:

What are the advantages and disadvantages of the Omni wheel?

The advantages of the Mecanum wheel and the omnidirectional wheel are flexibility and convenience, and the disadvantage is expensive. The omnidirectional wheel, as the name suggests,

 can move in any direction, at any angle, and in any direction. mecanum wheel these rollers having an axis of rotation at 45° to the plane parallel to the axis of rotation of the wheel.
