14146 127mm Heavy Duty Aluminum Omni Wheel Bearing Rollers features:

The (5 inch) 127mm Omni-directional wheels are unique as they are able to roll freely in two directions. The Omni-direction wheels allow a robot to

 convert from a non-holonomic to a holonomic robot. A non-holonomic robot that uses normal wheels has only 2 out of 3 controllable degrees-of-freedom –

moving forward/backwards and rotation. Not being able to move side ways makes a robot slower and less efficient in reaching its given goal.

Key Features:

Diameter: 5 inches(127mm)

Axial width: 18mm

Number of plate: 2

Number of roller: 10

Body material: Aluminum alloy

Roller material: Nylon

Roller bearing : Bearing Rollers

Roller diameter: 30mm

Net weight: 860g

Load capacity: 80kg

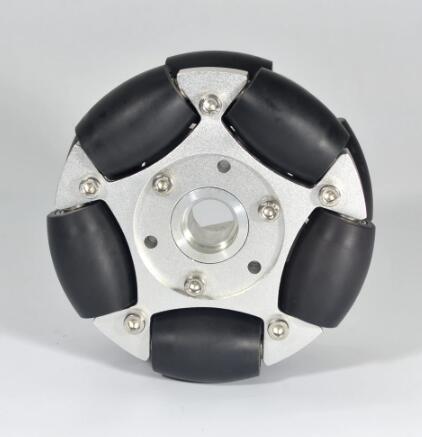

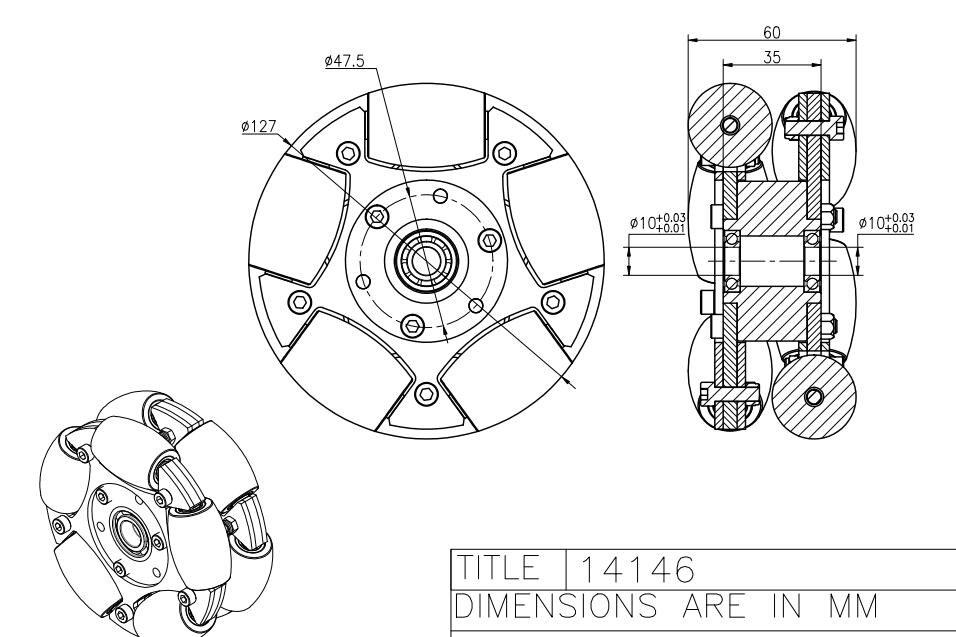

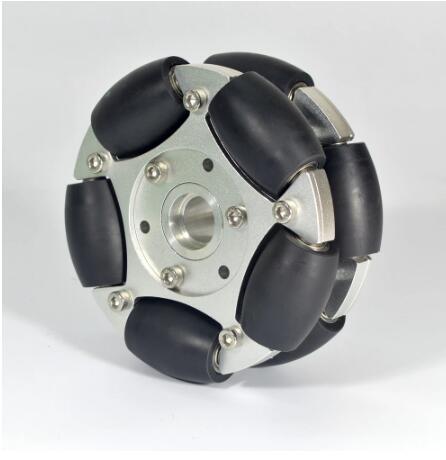

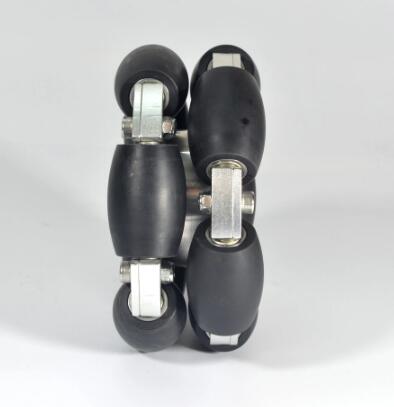

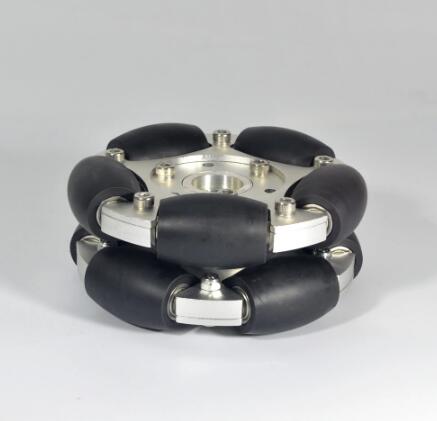

14146 127mm Heavy Duty Aluminum Omni Wheel Bearing Rollers as below:

What are the advantages and disadvantages of the Omni wheel?

The advantages of the Mecanum wheel and the omnidirectional wheel are flexibility and convenience, and the disadvantage is expensive. The omnidirectional wheel, as the name suggests,

 can move in any direction, at any angle, and in any direction. mecanum wheel these rollers having an axis of rotation at 45° to the plane parallel to the axis of rotation of the wheel.
