Brass Tube Roller 100mm Double Plastic Plate Omni Wheel with Central Bearing 14060 features:
100mm double plastic plate omni-wheel with central bearing
Specifications:
Number of plate: 2
Number of roller: 18
Number of Screw Holes:12
Diameter :100mm
Plate material:Nylon
Axial width:30mm
Roller Material: Rubber
Roller diameter: 12mm
Roller axle:Brass
Roller bearing:Brass Tube
Net weight: 350g
Load capacity: 15kg

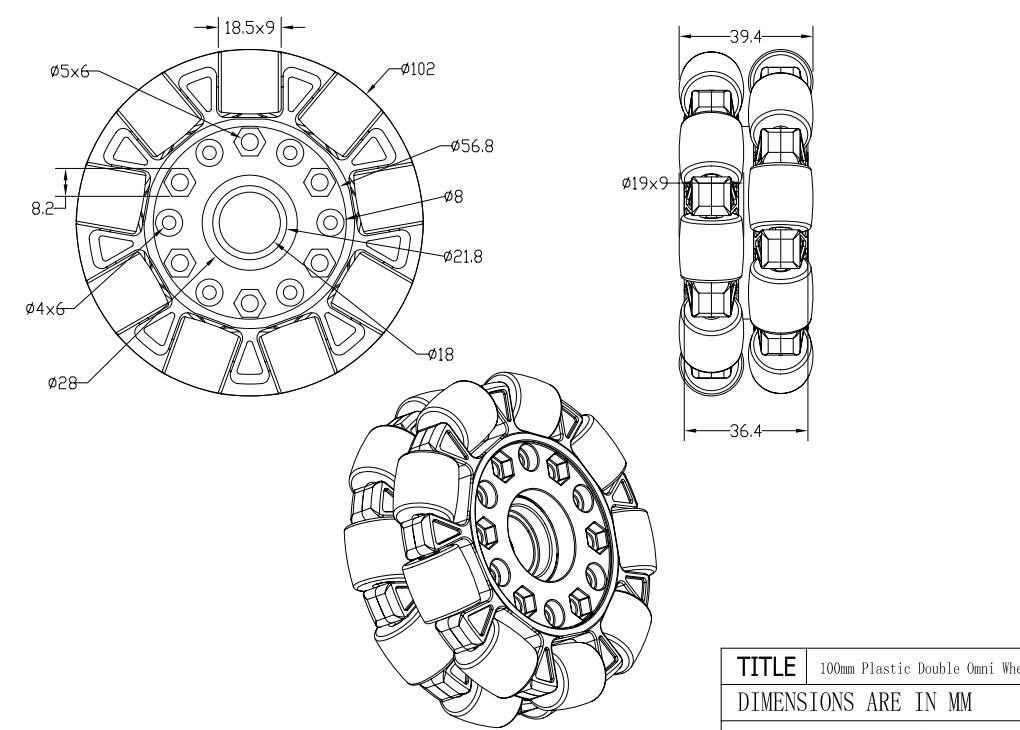

Brass Tube Roller 100mm Double Plastic Plate Omni Wheel with Central Bearing 14060 pictures as below:
What are the advantages and disadvantages of the Omni wheel?
The advantages of the Mecanum wheel and the omnidirectional wheel are flexibility and convenience, and the disadvantage is expensive. The omnidirectional wheel, as the name suggests,
can move in any direction, at any angle, and in any direction. mecanum wheel these rollers having an axis of rotation at 45° to the plane parallel to the axis of rotation of the wheel.
