Payload 80kg 203mm 8 inch aluminum Omni wheel with PU roller 14194 features:

203mm Aluminum Omni wheel with PU roller(80kg Load capacity）14194

The (8 inch)203mm omnidirectional wheel,provides a maximum load capacity of 80kg.Two rolling bearings are embedded in each driven small wheel, which is composed of a polyurethane

wheel and an aluminum wheel.The accessories are machined with full CNC high precision technology.It has a good performance in terms of stability, quietness, reliability and wear resistance,

and can adapt to various environments such as indoors and outdoors.

Specification:

Diameter: 8 inches (203mm)

Inner hole diameter: 17mm

Axial width: 87mm

Number of rollers: 10pcs

Body material: aluminum alloy

Roller material: polyurethane

Net weight: 3KG

Load capacity: 80KG/piece

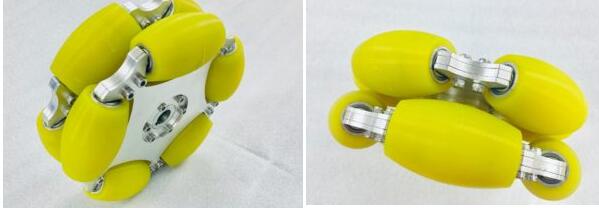

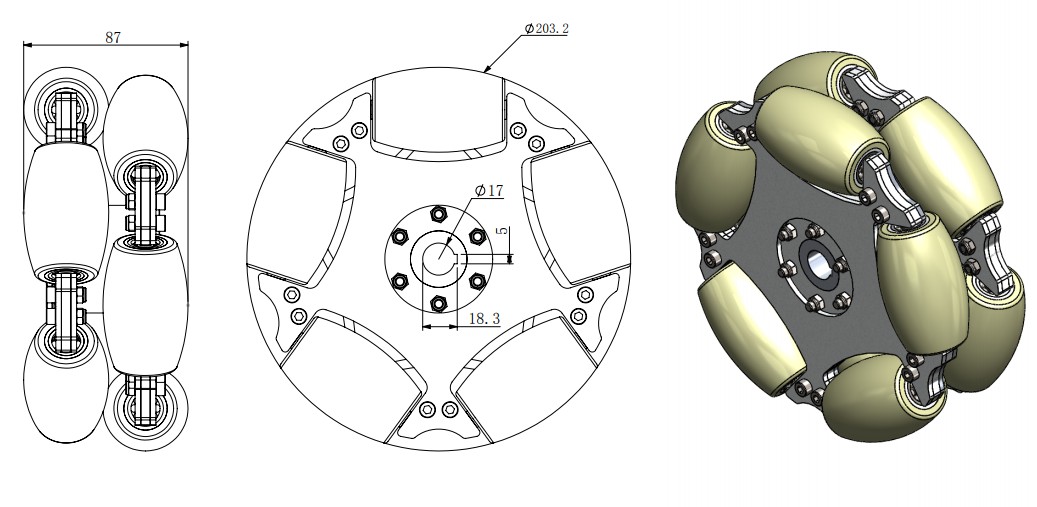

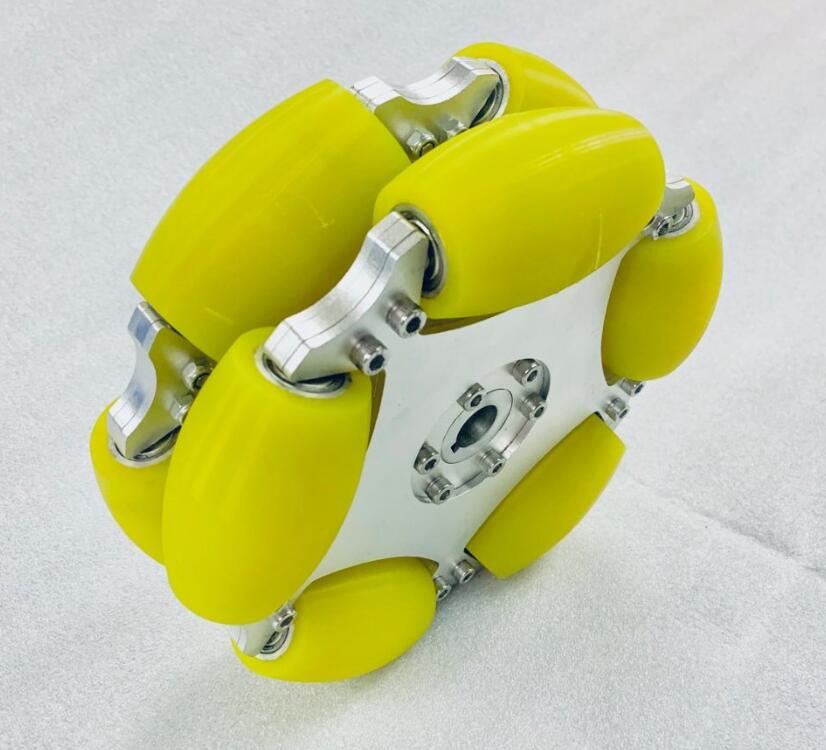

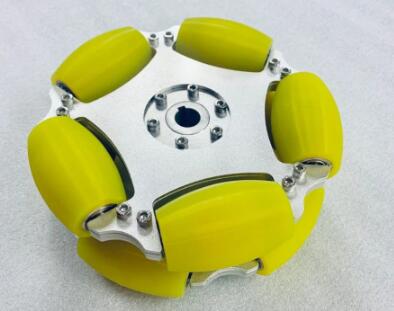

14194 8 inch aluminum omni wheel pictures as below:

What are the advantages and disadvantages of the Omni wheel?

The advantages of the Mecanum wheel and the omnidirectional wheel are flexibility and convenience, and the disadvantage is expensive. The omnidirectional wheel, as the name suggests,

 can move in any direction, at any angle, and in any direction. mecanum wheel these rollers having an axis of rotation at 45° to the plane parallel to the axis of rotation of the wheel.
