100kg Payload Omni Blue Color ZOTY2LH-125 Double Row Industrial 125mm Nylon Omni Wheel For Wheelchair

Specifications:

Specifications:

Outer Diameter: 125mm

Inner Diameter: 20mm, 25mm round bore for selection

Wheel Width: 75mm

Number of Rollers: 10pcs*2

Material: Nylon

Wheel Color: Blue/ Yellow

Load capacity: 100kg

Net Weight: 0.57kg

Row: Double row

Can move in any direction

360 degree movement and direction

Omni-Directional wheels roll forward like normal wheels, but slide sideways with almost no friction (no skidding during turns).Use these wheels to make your robot turn smoothly or build a holonomic drivetrain.

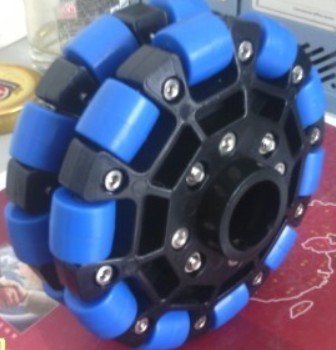

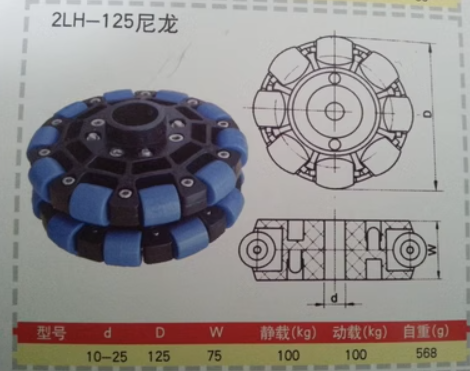

125mm Nylon Omni Wheel For Wheelchair features pictures as below:

What are the advantages of the plastic Omni wheel?

Omni wheels (omniwheel) combines the freedom of 360 degree movement with the stability of a fixed mounting. This is achieved through a design which uses integral rollers rather than a swivel mount. An ideal improvement on traditional swivel casters. Omni wheels delivers improved, reliable performance for a wide range of material handling, conveyor, OEM, robotic and other applications requiring precision omni-directional maneuverability over other solutions.Most omni wheels are sturdy, impact and chemical resistant, and made from molded polymers allowing the design of entirely new multi-directional movement solutions at a consumer, commercial and industrial level.

* 360°/90° manoeuvrability - without turning or swiveling wheels * Better directional control and tracking * Precise positioning - without swivel offset correction * Minimal wheel space/housing requirements * Simple mounting - able to tilt or lever off the fixed wheel mounting * Non marking polyurethane rollers/ Nylon rollers * Load stability - a static center of load relative to wheel base * Load distribution - the ability to use multiple wheels without swivel offset resistance * Robust - wheel frame and roller axles provide a web-like structure with over-moulded rollers * Tough and rust free - full polymer construction with no steel pins
