Product Description
| Product Name | S6204RS 20x47x14mm 440C S6204-2RS Stainless Steel Ball Bearings ABEC-3 Rubber Sealed Bearing |
| Brand | Neutral |
| Model No | S6204RS |
| Sizes(mm) | 20x47x14mm |
| Material | AISI440C/420 stainless steel |
| Sealed Type | 2RS rubber seals/ ZZ metal shields/Open |
| Precision | P0, P5, P6 |
| Clearance | C0, C2, C3, C4 |
| Used | S6204RS 20x47x14mm 440C S6204-2RS Stainless Steel Ball Bearings ABEC-3 Rubber Sealed Bearing |
| Packing | 10pcs/tube+White small box+Carton |
| Shipping Method | By air or by sea |
Detailed Images

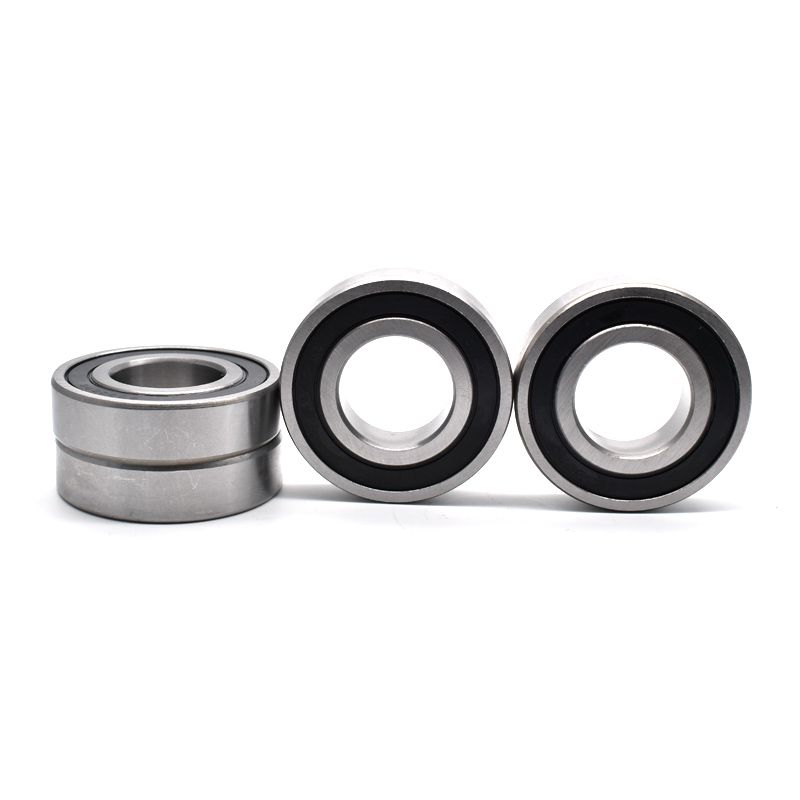

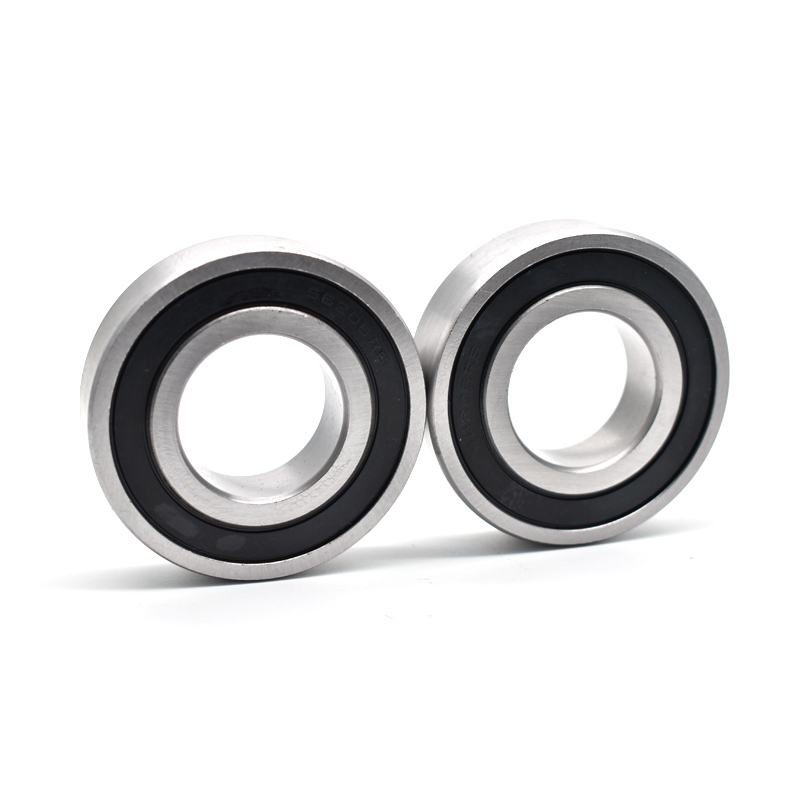

S6204RS 20x47x14mm 440C S6204-2RS Stainless Steel Ball Bearings ABEC-3 Rubber Sealed Bearing
440C Stainless Steel Ball Bearing ID:20mm OD:47mm Width:14mm
Good corrosion resistance water and many weak chemicals
Good for temperatures up to 300°C
Corrosion resistance can be improved by passivation
Good resistance to acids/alkalis
S6204-2RS is a Precision Metric Ball Bearing manufactured with Rubber Seals on both sides and is pre-lubricated
with Grease, allowing for use upon delivery. Made from Stainless Steel, S6204-2RS is a Metric Ball Bearing that
can withstand both moderate radial and axial loads while providing high performance. This bearing also features
corrosion resistant properties, making this bearing ideal for applications requiring contact with moisture and other
corrosive material. Our 6200 Series Light Duty Ball Bearings are designed with deep, close-contoured races to offer
a perfectly balanced bearing with the capacity to carry radial, thrust or combined loads.
ZOTY Stainless Steel Ball Bearings
Stainless steel bearings are widely used in all kinds of general corrosion products. Compared with common chrome steel bearings, stainless steel bearings have stronger rust and anti corrosion performances, Many of our stainless bearings come filled with Food Grade rated grease or Kyodo SRL grease, directly from the factory.
High quality AISI 440C stainless steel bearings resist corrosion and provide exceptional hardness and strength. Features 304 stainless cages and shields; grooved raceways on inner and outer rings sustain moderate axial loads in both directions and radial loads. Available open, sealed (2RS) or shielded (ZZ). ZZ and 2RS are available pre-lubricated Grease.
Benefits:
--Protects against corrosion (all parts made of stainless steel)
--Longer maintenance free lubrication life with Molded-Oil insert
--Maintains a clean environment
--Interchangeable with standard units. Pillow and flange shapes are available
Condition Description:
Arduous Environments
Contamination
Corrosive Environment
Lubrication
Related Products
S6204RS and S6204-2RS: dimensions and purchasing options
This ZOTY stainless steel S6204 product has a 20 mm bore, 47 mm outside diameter and 14 mm width. The listed material options include 440C and 420 stainless steel. Specify the required grade on the inquiry and order specification, and confirm it on the approved drawing or sample.
Confirm the rubber seals, material and lubricant
RS specifies a rubber seal on one side; 2RS specifies rubber seals on both sides. Request S6204-2RS when both faces require rubber seals. Confirm the exact ring and ball materials, required clearance and lubricant with the approved drawing or sample. A ZZ metal-shielded bearing is a different closure configuration and should not replace RS or 2RS without approval.
Describe the actual operating temperature, speed, load, moisture and any cleaning chemicals or salt exposure. The operating limit must be confirmed for the complete bearing, seals and lubricant together. Where food-contact requirements apply, state the relevant requirement and required documentation in the quotation request.
OEM and wholesale batch requirements
Send the complete model, quantity per batch, drawing or both-face product photographs, shaft and housing fit, material grade, clearance and lubricant requirements. Include any inspection, marking, packing and delivery requirements. Sample configuration, minimum order, pricing and lead time are confirmed against the actual specification.
Request an S6204RS / S6204-2RS quotation or email admin@zotybearing.com with the required configuration and quantity.
Related selection: S6200 series stainless steel bearings and stainless steel bearing material selection and OEM supply.
