Product Description
| Product Name | Washing Machines S6205RS Bearing 25x52x15mm 440C Stainless Steel Ball Bearing S6205-2RS |
| Brand | Neutral |
| Model No | S6205RS |
| Sizes(mm) | 25x52x15mm |
| Material | AISI440C/420 stainless steel |
| Sealed Type | 2RS rubber seals/ ZZ metal shields/Open |
| Precision | P0, P5, P6 |
| Clearance | C0, C2, C3, C4 |
| Used | Washing Machines S6205RS Bearing 25x52x15mm 440C Stainless Steel Ball Bearing S6205-2RS |
| Packing | 10pcs/tube+White small box+Carton |
| Shipping Method | By air or by sea |
Detailed Images

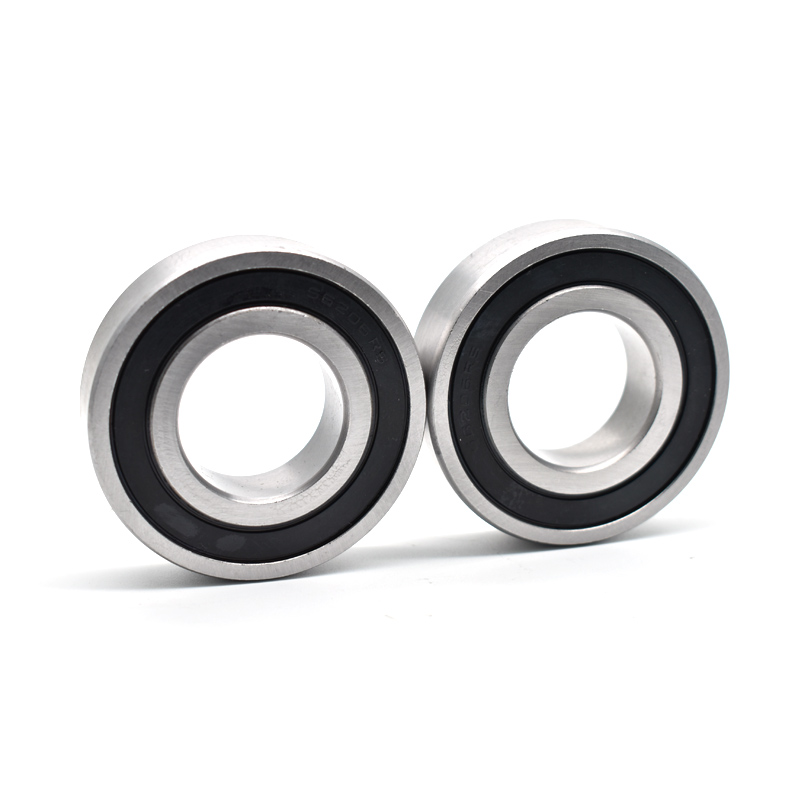

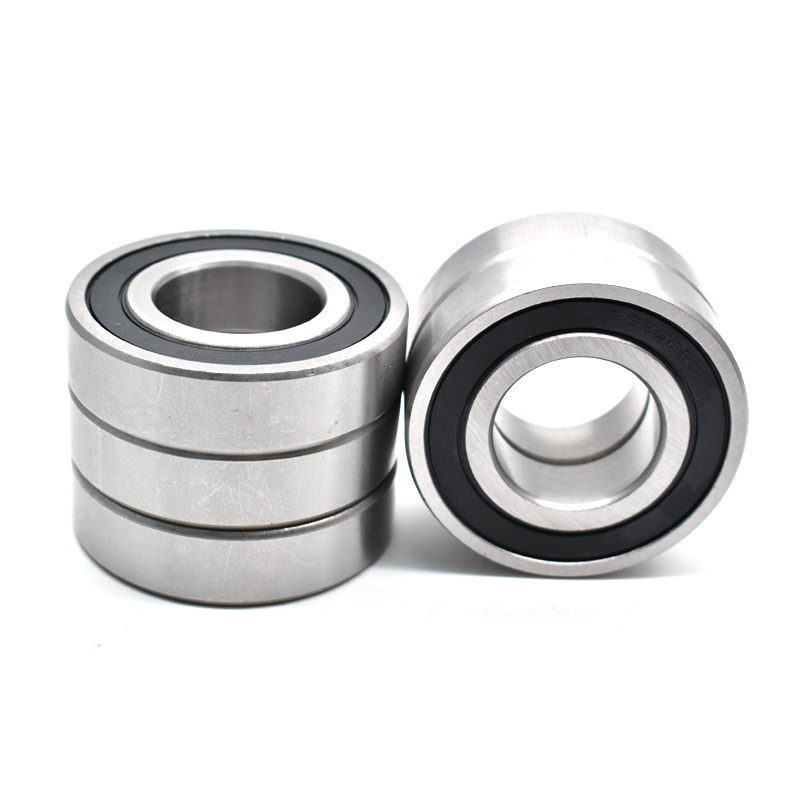

Washing Machines S6205RS Bearing 25x52x15mm 440C Stainless Steel Ball Bearing S6205-2RS
440C Stainless Steel Ball Bearing ID:25mm OD:52mm Width:15mm
Good corrosion resistance water and many weak chemicals
Good for temperatures up to 300°C
Corrosion resistance can be improved by passivation
Good resistance to acids/alkalis
S6205-2RS Stainless Steel Metric Ball Bearings are used in a range of applications from Electric Motors
to Washing Machines, Belt Drives, Compressors, Pumps, Turbines, Printing and Textile Machines, Automotive,
Conveyors, Light-duty Industrial Applications, Engines, Small Spindles, Food processing, Power Transmission,
Rolling Mills, Water Fountain Systems, Sybmersible Flow Meters, Robotic Pool Cleaners, Medical Equipment,
Cryogenic Engineering, Optical Instruments, among others.
ZOTY Stainless Steel Ball Bearings
Stainless steel bearings are widely used in all kinds of general corrosion products. Compared with common chrome steel bearings, stainless steel bearings have stronger rust and anti corrosion performances, Many of our stainless bearings come filled with Food Grade rated grease or Kyodo SRL grease, directly from the factory.
High quality AISI 440C stainless steel bearings resist corrosion and provide exceptional hardness and strength. Features 304 stainless cages and shields; grooved raceways on inner and outer rings sustain moderate axial loads in both directions and radial loads. Available open, sealed (2RS) or shielded (ZZ). ZZ and 2RS are available pre-lubricated Grease.
Benefits:
--Protects against corrosion (all parts made of stainless steel)
--Longer maintenance free lubrication life with Molded-Oil insert
--Maintains a clean environment
--Interchangeable with standard units. Pillow and flange shapes are available
Condition Description:
Arduous Environments
Contamination
Corrosive Environment
Lubrication
Related Products
S6205RS and S6205-2RS: material, seal and batch order specification
This stainless steel bearing has a 25 mm bore, 52 mm outside diameter and 15 mm width. For equipment manufacturers, maintenance buyers and distributors, the purchase order should identify the material grade and complete seal arrangement as well as the model.
Specify the stainless steel grade and both bearing faces
The published material options are AISI 440C and 420 stainless steel; specify the required grade for quotation and sample approval. RS denotes a rubber seal on one side, while 2RS denotes rubber seals on both sides. The range also lists ZZ metal shields and open configurations. Confirm the arrangement of each face and the lubricant rather than treating all suffixes as the same specification.
Define speed and operating conditions before selecting the configuration
If your requirement is 8,000 rpm, include whether this is continuous or intermittent operation, the radial and axial loads, shaft and housing fits, clearance, operating temperature and lubricant requirements. The requested speed must be reviewed for the selected material, seals and lubrication; it is not a verified speed rating for every S6205 variant. Describe water, cleaning agents or other exposure conditions so the complete bearing configuration can be reviewed.
Information needed for a sample or production batch quotation
Send the full model and grade, quantity per batch, precision and clearance requirements, any inspection documents, packing requirements and delivery destination. Include a drawing or photographs of the existing assembly for a replacement order. Sample availability, minimum order, price and lead time are confirmed against the actual specification.
Request an S6205 stainless steel bearing quotation or email admin@zotybearing.com with your selected grade, seal arrangement and batch quantity.
Related selection: S6200 stainless steel bearing series and stainless steel bearing materials and OEM enquiries.
