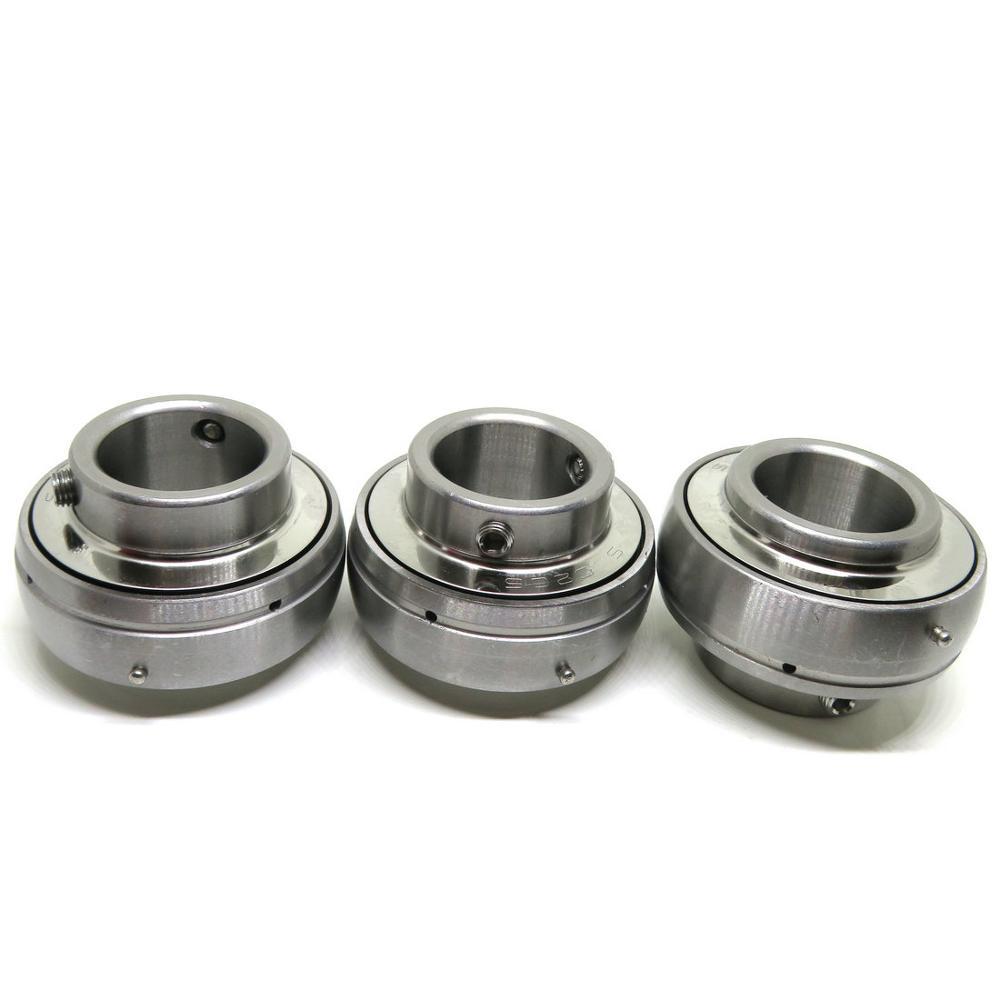

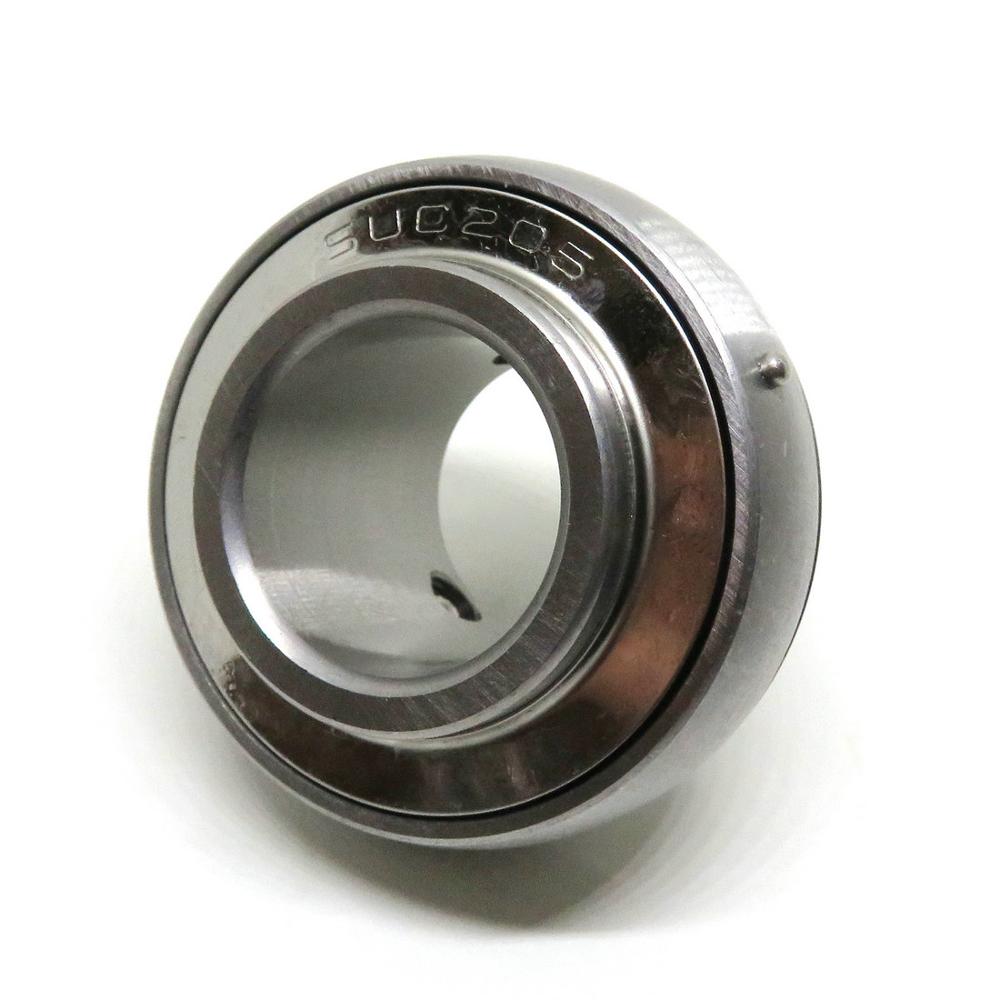

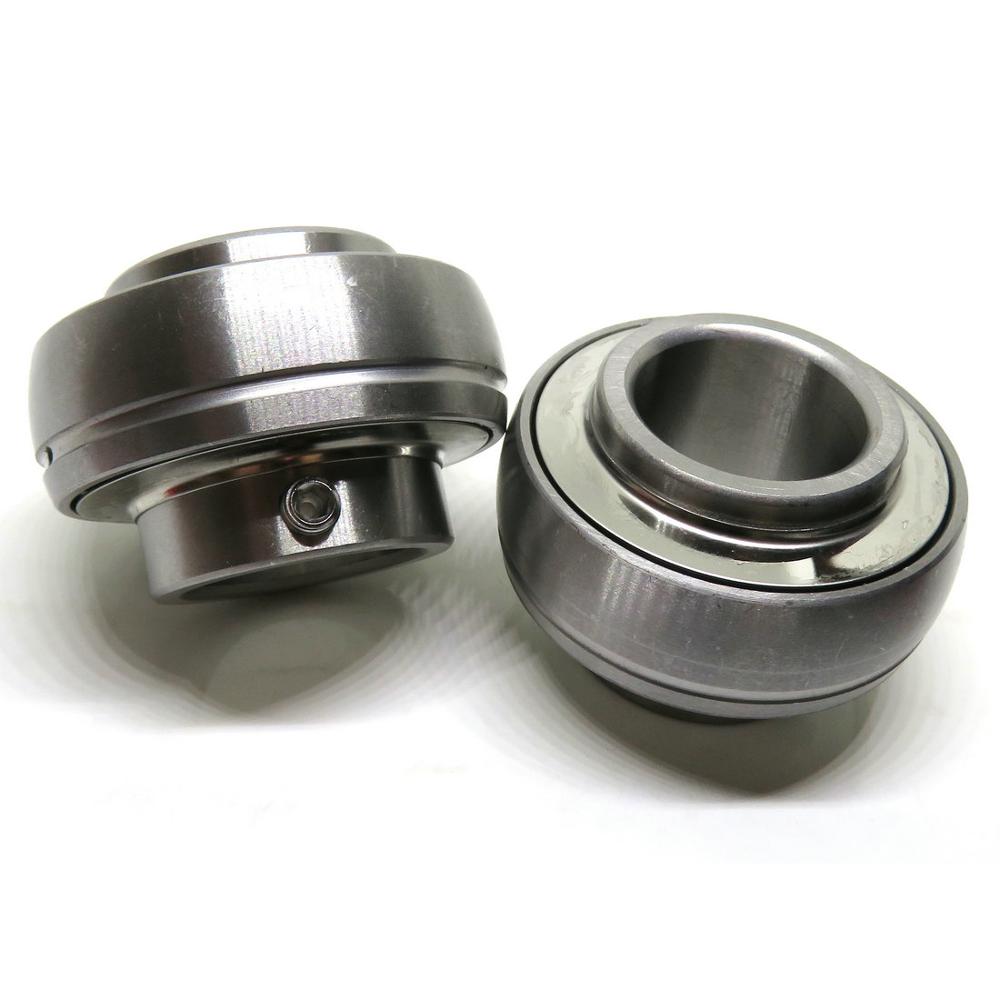

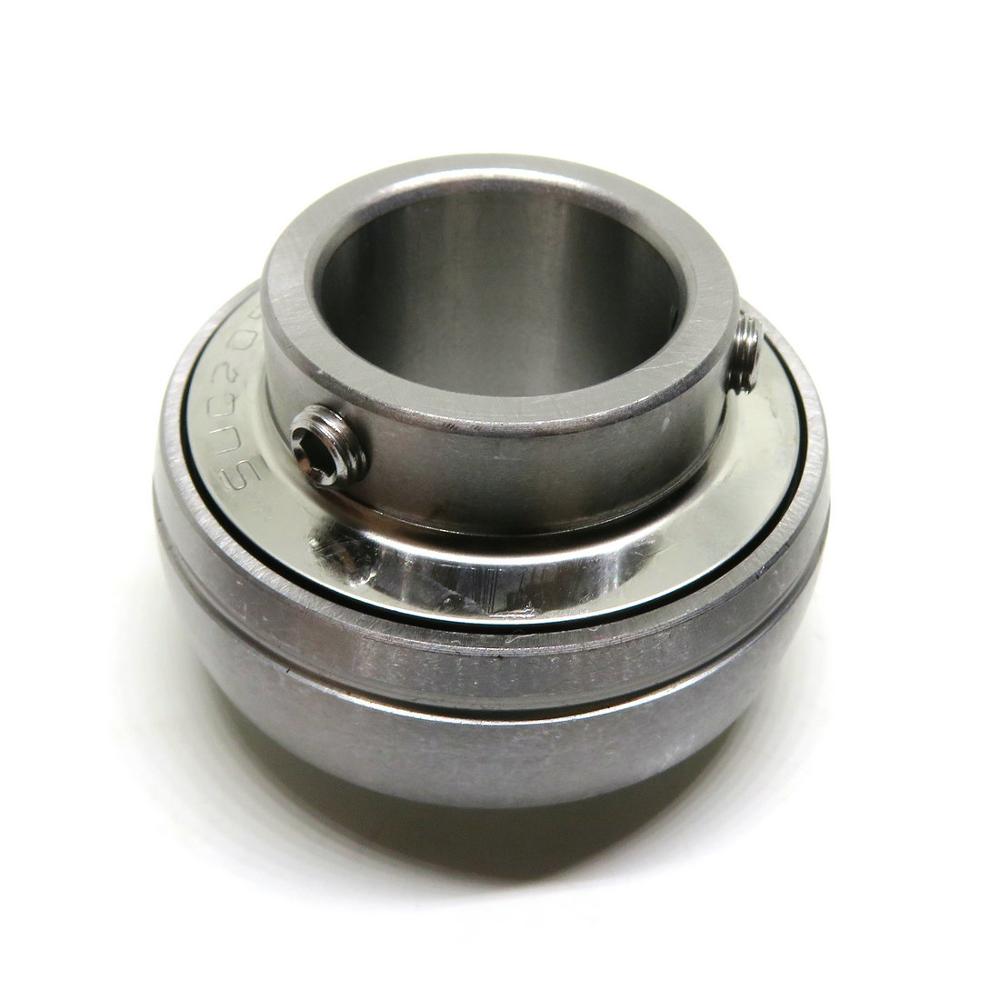

SUC205 Corrosion Resistant Bearing Inserts 25x52x34.11mm with Locking Pin

Item: SUC205

Type:  Stainless steel insert bearing

Washer Material: 420/304 Stainless Steel

Lubrication: Oil/ Grease

Size: 25x52x34.1mm

Inner Diameter: 25mm

Outer Diameter: 52mm

Width: 34.1mm

Features:

1. Stable Performance , low voice, long working life, low vibration.

2. The inserts can be designed with dustproof rubber seals or ZZ steel shields or even as open bearings.

3. UC Insert ball bearings can handle larger loads compared to standard deep groove ball bearings.

4. The lubrication process is simpler.

5. There are multiple locking options, including a squeeze collar, eccentric lock collar or a set screw lock.

6. Made of high strong steel, and precision bearing.

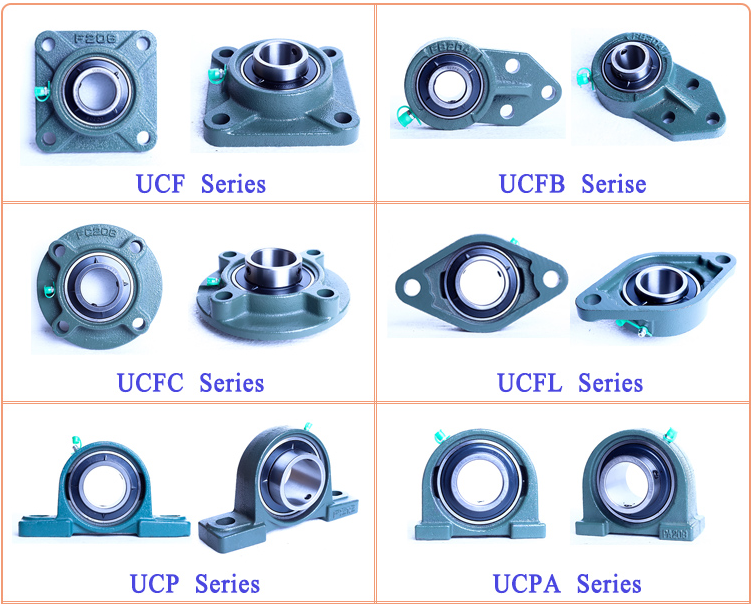

Our line of standard and heavy-duty U Series Ball Bearing Housed Units includes Set Screw Locking (UC 200 and UC 300).

UC insert bearings are made from stainless steel material. The UC insert has a spherical OD which allows it to self-align while in various types of mounted bearing housings.

 It features a Neoprene Contact Seal designed to keep lubricant in while keeping contaminants out. The seal is designed to purge as new grease is gradually pumped into the

bearing cavity. The seal is protected by a steel flinger positioned directly in front of the seal contact area. This flinger creates a barrier channel that makes it difficult for dirt and

contaminants to get inside the insert bearing. When in operation dirt and debris are slung away from the bearing by centrifugal force. The UC insert comes standard as a

regreaseable type with a grease access channel machined in the outside diameter.
