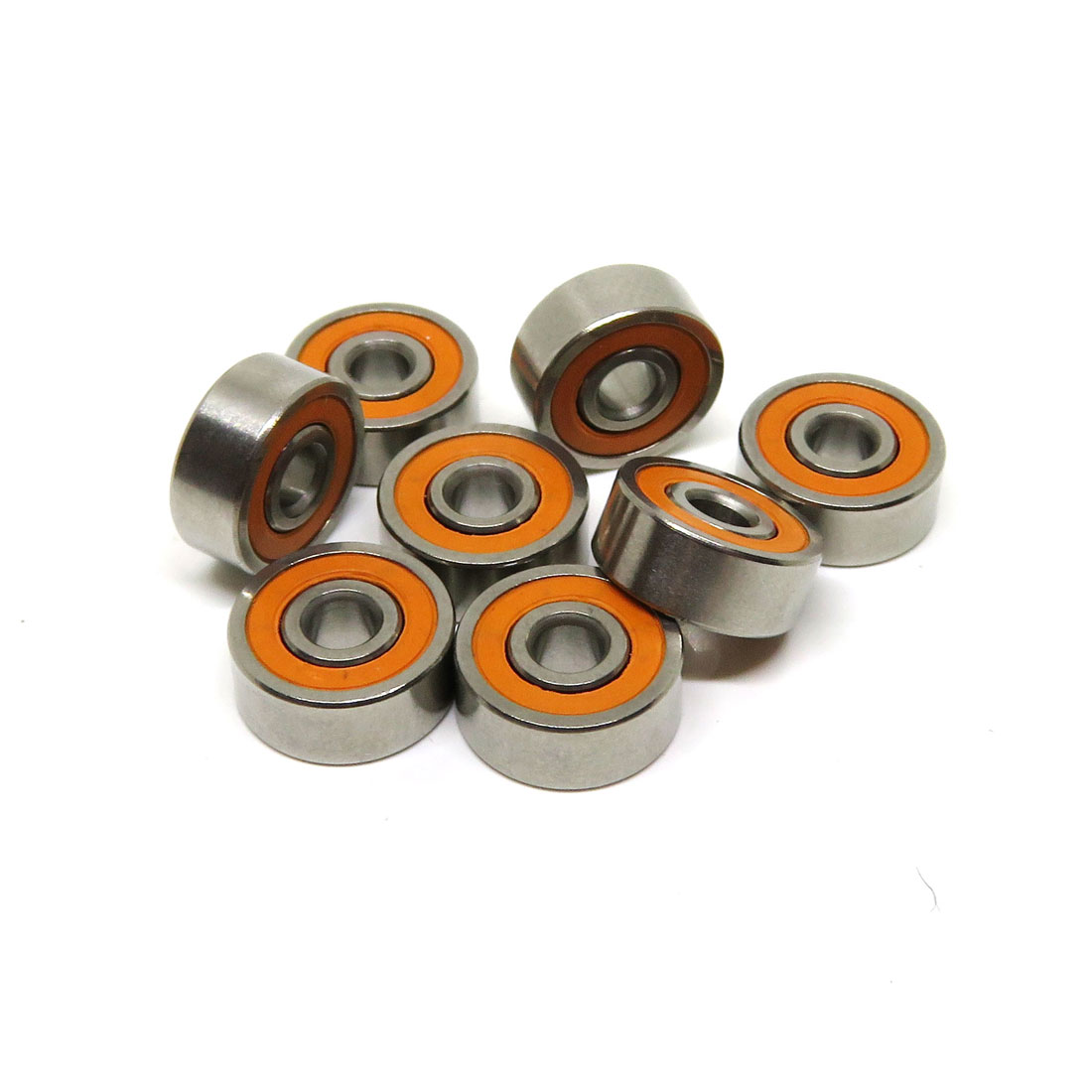

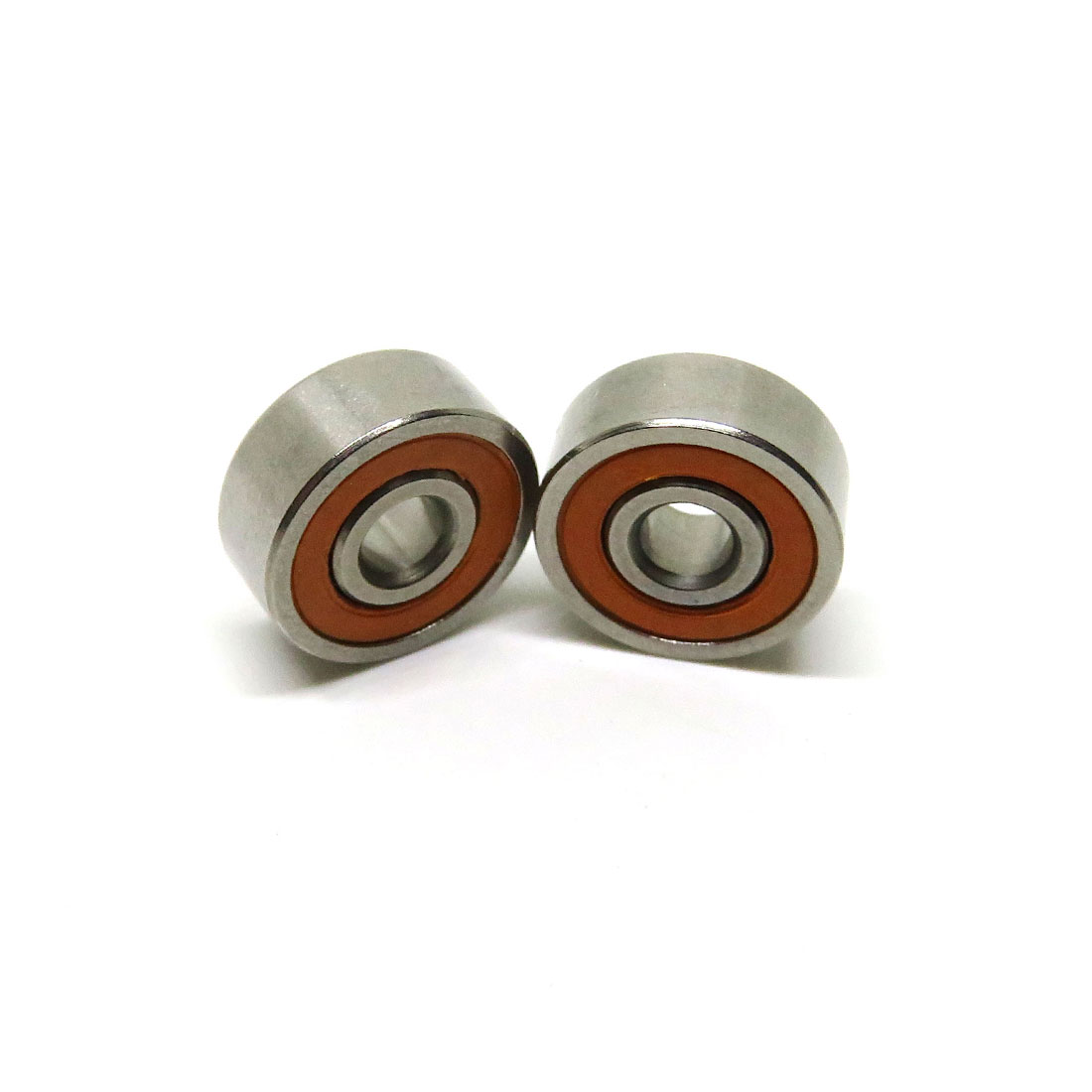

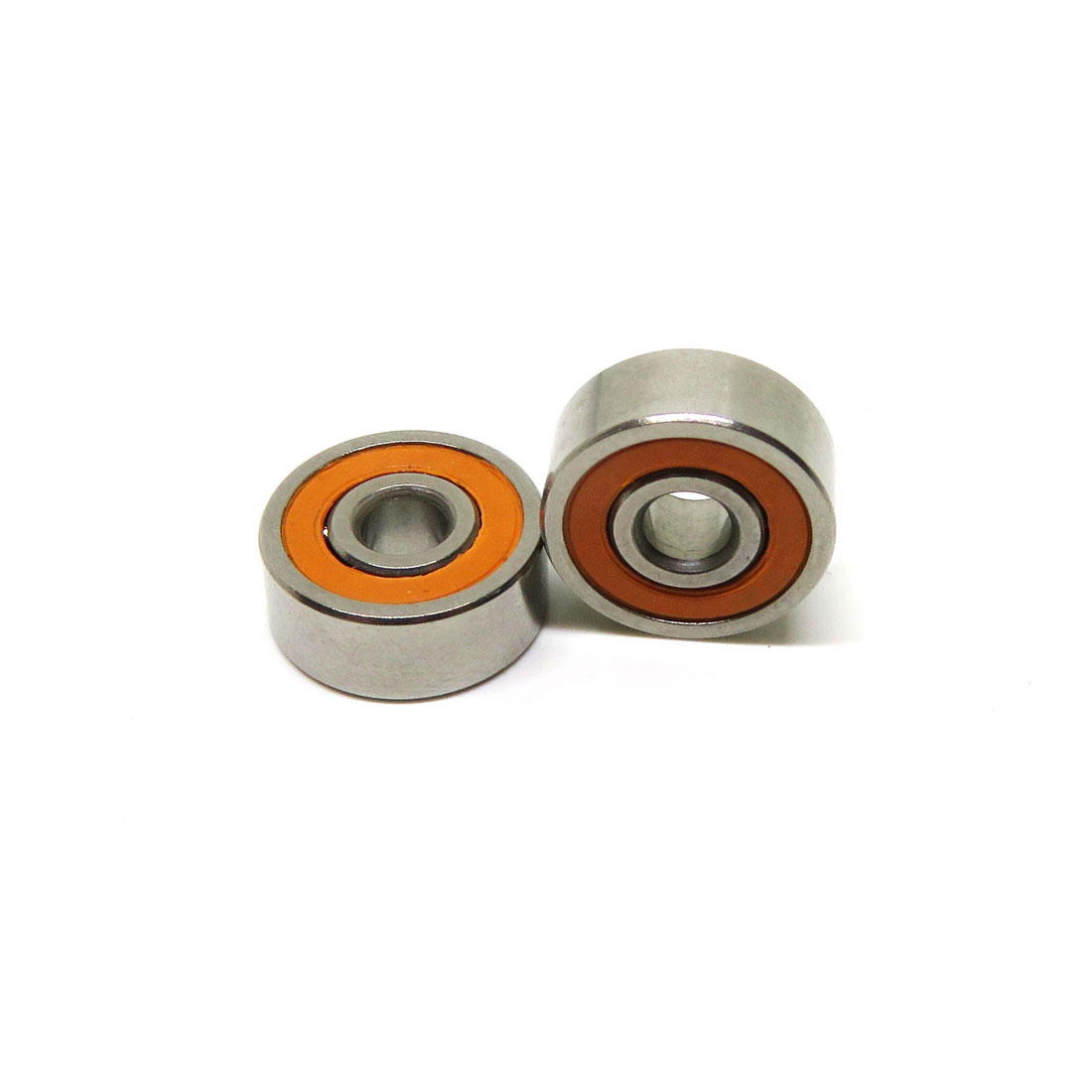

Stronger Rust S624-2RS 4x13x5 Bearing Stainless Steel Sealed Miniature Ball Bearings S624RS

S624-2RS Stainless Steel sealed Ball Bearing, S624-2RS is radial and deep groove ball bearing,

bearing is made of Stainless Steel, bearing is closed with rubber seals to protect the bearing from

dust or any possible contamination, bearings are sealed and self lubricated, the inner diameter is 4mm,

the outer diameter is 13mm and the width is 5mm.

Item: S624-2RS Ball Bearing

Type: Deep Groove Ball Bearing

Material: Stainless Steel

Closures: Double sealed with rubber seals RS/RS1/2RS1

Dimensions: 4mm x 13mm x 5mm/Metric

ID (inner diameter)/Bore: 4mm

OD (outer diameter): 13mm

Width/Height/thickness: 5mm

Size: 4 x 13 x 5 mm

Quantity: One Bearing

Dynamic load rating Cr: 1,300 N

Static load rating Cor: 490 N

Limiting Speed:

Grease Lubrication: 44,000 RPM

ZOTY Stainless Steel Ball Bearings

Stainless steel bearings are widely used in all kinds of general corrosion products. Compared with common chrome steel bearings, stainless steel bearings have stronger rust and anti corrosion performances, Many of our stainless bearings come filled with Food Grade rated grease or Kyodo SRL grease, directly from the factory.

High quality AISI 440C stainless steel bearings resist corrosion and provide exceptional hardness and strength. Features 304 stainless cages and shields; grooved raceways on inner and outer rings sustain moderate axial loads in both directions and radial loads. Available open, sealed (2RS) or shielded (ZZ). ZZ and 2RS are available pre-lubricated Grease.

Benefits:
--Protects against corrosion (all parts made of stainless steel)
--Longer maintenance free lubrication life with Molded-Oil insert
--Maintains a clean environment
--Interchangeable with standard units. Pillow and flange shapes are available

Condition Description:
Arduous Environments
Contamination
Corrosive Environment
Lubrication
