Product Description
| Product Name | SSLF1680ZZ SF688ZZ Flanged Stainless Steel Shielded Flange Bearing 8x16x5 SF688-2Z |
| Brand | Neutral |
| Model No | SF688ZZ |
| Sizes(mm) | 8x16x5mm |
| Material | AISI440C/420 stainless steel |
| Sealed Type | 2RS rubber seals/ ZZ metal shields/Open |
| Precision | P0, P6, P5 |
| Clearance | C0, C2, C3, C4 |
| Used | SSLF1680ZZ SF688ZZ Flanged Stainless Steel Shielded Flange Bearing 8x16x5 SF688-2Z |

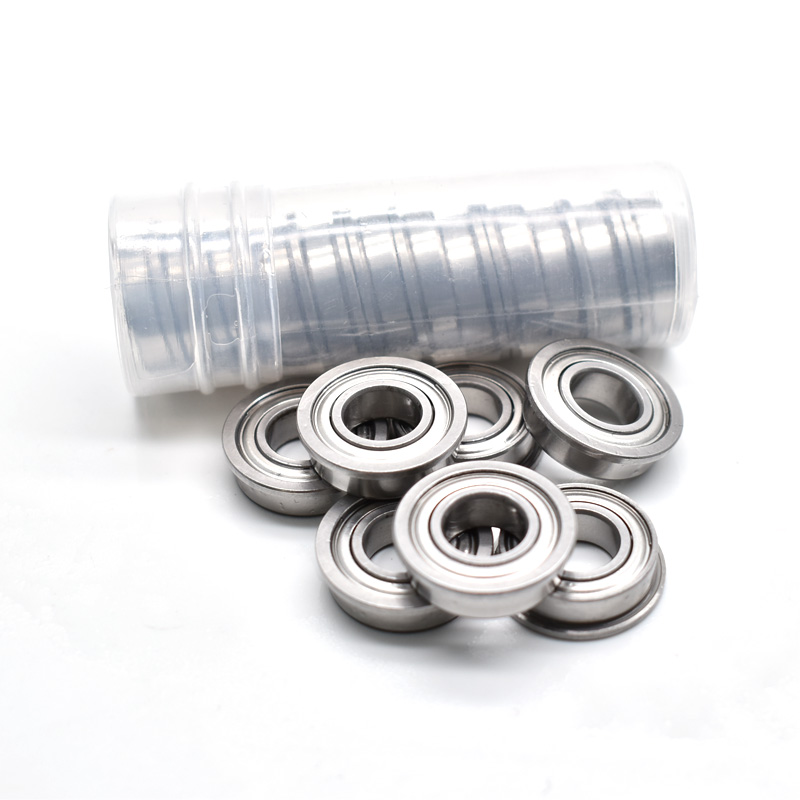

| Packing | 10pcs/tube+Carton |
| Shipping Method | By air or by sea |
Detailed Images

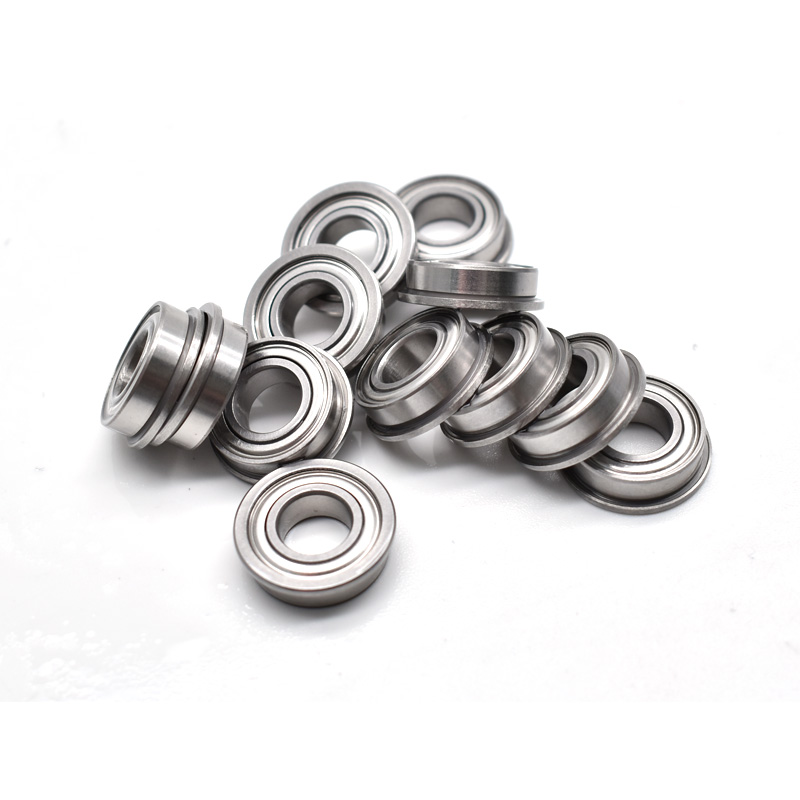

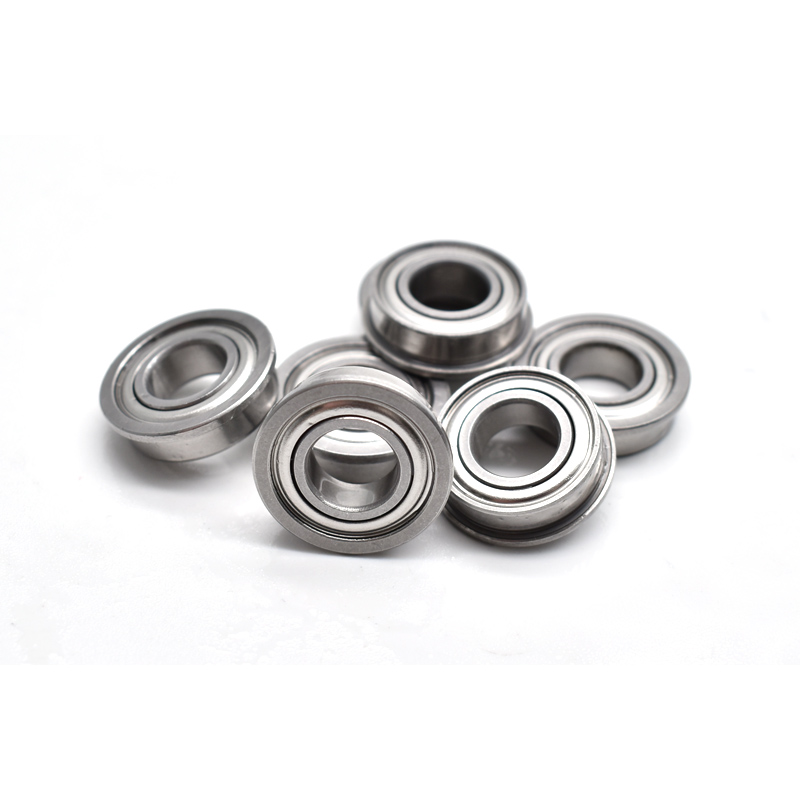

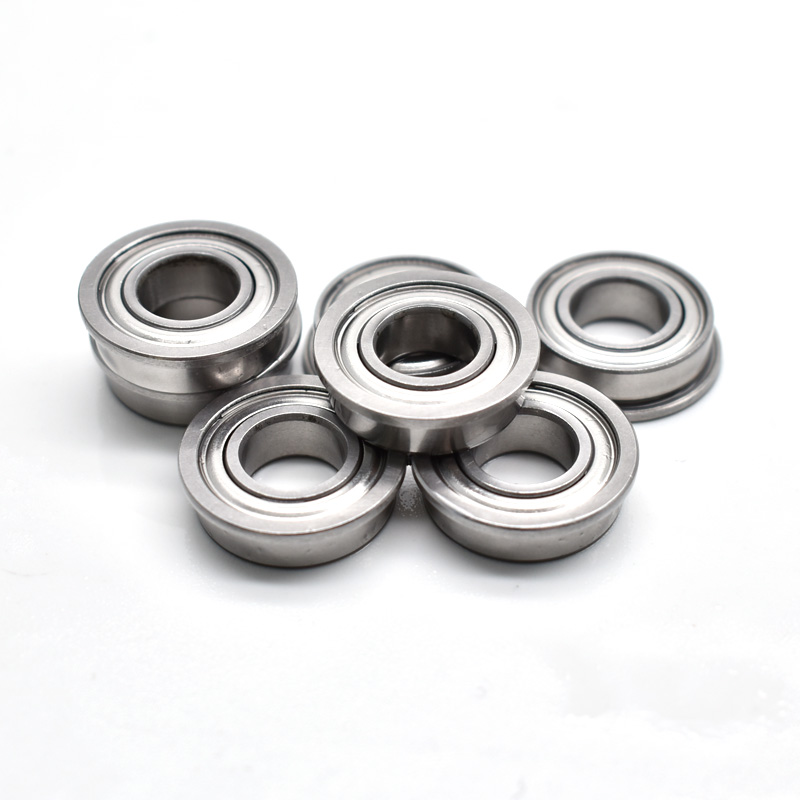

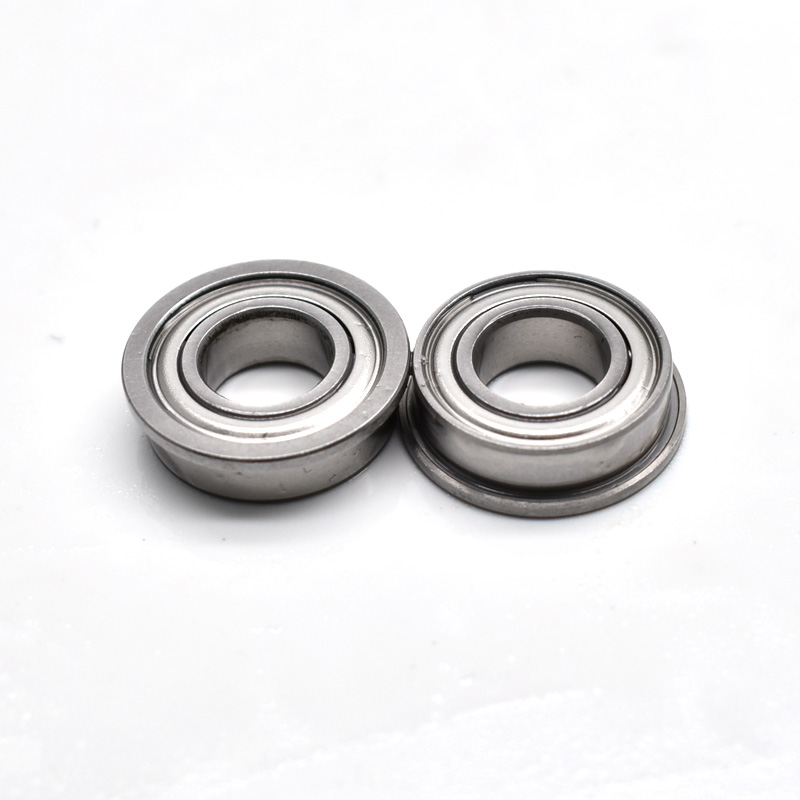

SSLF1680ZZ SF688ZZ Flanged Stainless Steel Shielded Flange Bearing 8x16x5 SF688-2Z
Item: SSF688-ZZ Ball Bearing
Type: Deep Groove Flanged Ball Bearing
Material: SUS/AISI Stainless Steel
Closures: 2 Metal Shields, Removable
Lubrication: Self Lubricated (Grease)
Size: 8x16x5mm
Inner Diameter: 8mm
Outer Diameter: 16mm
Width: 5mm
Same series stainless steel flanged bearing SF682ZZ SF683ZZ SF684ZZ SF685ZZ SF686ZZ SF687ZZ, SF688ZZ, SF689ZZ, SF6800ZZ, SF6801ZZ, SF6802ZZ, SF6803ZZ, SF6804ZZ, SF6805ZZ, SF6806ZZ....Flanged ball bearings are available open, shielded or sealed. Deep groove radial flanged miniature bearings can withstand heavy radial loads and moderate thrust loads in both directions. Flanged miniature ball bearings have an outer ring flange to facilitate location in a housing.
Flange Bearings have several different types and they are engineered to meet specific requirements of the application or situation. Different types of these Bearings come with different design, cages, load capacities as well as different performance. These Bearings are designed to mount ball bearing with high precision and performance, because these Bearings are highly sturdy, water resistant and dirt resistance, they are suitable for providing mounting for other apparatuses with rotary or linear motion.
Related Product:
Stainless steel ball bearings are widely used in all kinds of general corrosion products. Compared with common chrome steel bearings, stainless steel bearings have stronger rust and anti corrosion performances, Many of our stainless bearings come filled with Food Grade rated grease or Kyodo SRL grease, lubed directly from the factory.
