ZrO2 full ceramic ball bearings are best used at low speeds. For higher speeds or continuous rotation over long periods, never rusty and corrosion resistance.
Full ceramic bearings made from ZrO2 to handle extreme temperatures and highly corrosive environments.
6001CE Full Ceramic Bearing 12x28x8mm For Fishing Reel, Micro Motor & Marine Equipment features:
Model: 6001CE
Size: 12x28x8mm
Ring Material: ZrO2 full ceramic
Ball Material: ZrO2 full ceramic
Cage: PEEK cage/PTFE cage
Lube: Dry lube
Sealed: Open
Features: High temperatures and highly corrosive environments, never rusty

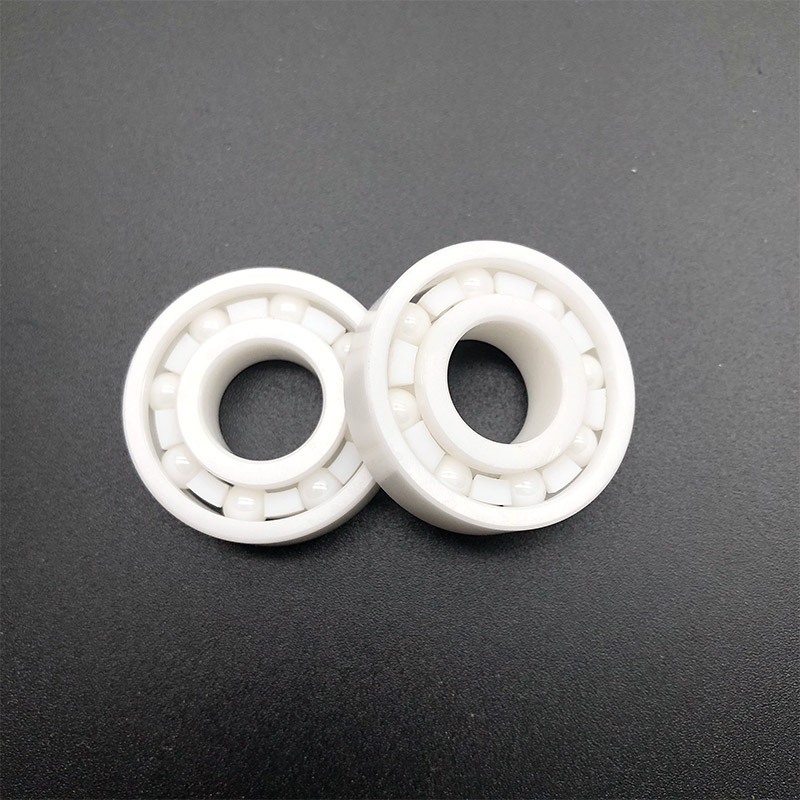

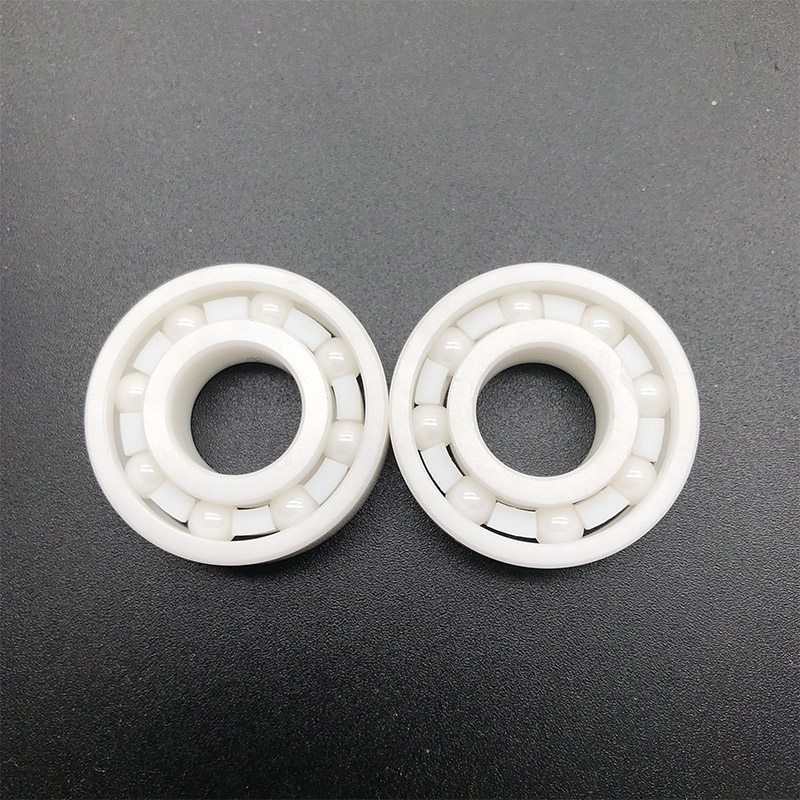

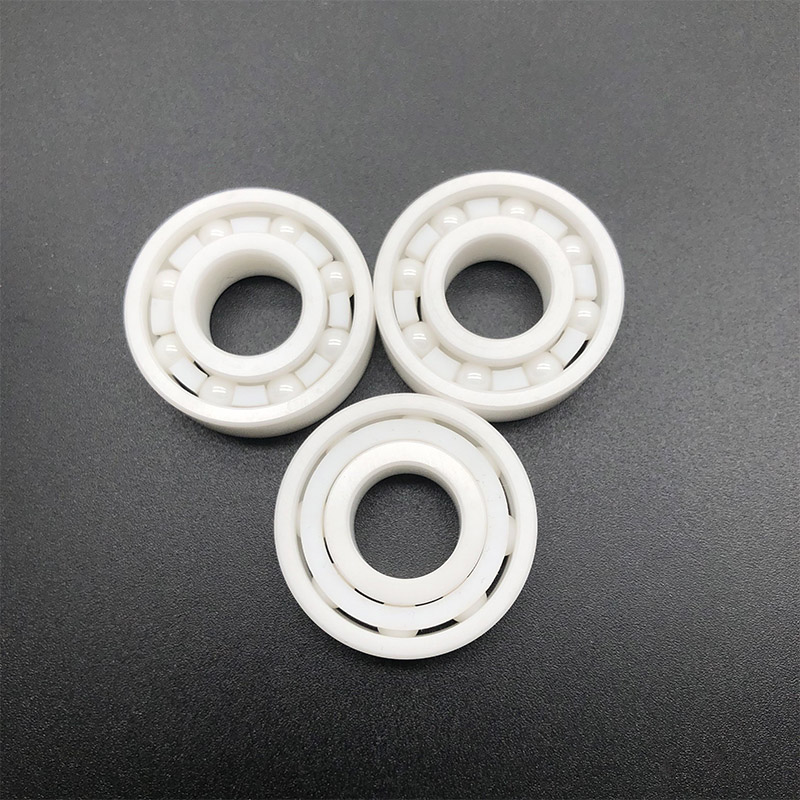

6001CE White Full Ceramic Bearings pictures as below:
Zirconia Oxide Ball (ZrO2)full ceramic bearings has the highest strength and toughness at room temperature of all the advanced. High quality full ceramic bearing are suitable for use in many specialty applications seeking to reduce overall weight and rolling resistance.
Zirconia (ZrO2) is a cost-effective alternative to Si3N4. It also has the advantage that the thermal expansion is similar to that of steel. the rings in full ceramic bearings are typically manufactured from silicon nitride, Si3N4, or zirconia, ZrO2. Retainers in full ceramic bearings are typically made from high-performance plastics such as PEEK , PTFE or nylon. Full complement versions are also available.
Benefits Of Full Ceramic Bearings: resistant to acid, salt and water, and blood, non-magnetic, lower coefficient of friction, resistant to electricity, corrosion-resistant, lighter, smoother and stiffer.
Full ceramic ball bearing applications:
Applications For Full Ceramic Bearings: MRI equipment, vacuum environments, semiconductor manufacturing, radiotherapy, food processing industrie, any extreme environment requiring non-corrosive, non-conductive or non-magnetic bearings.
Related Hybrid ceramic ball bearing popular sizes as following:
Ceramic Ball Bearing bore 2mm: 2x5x2mm, 2x5x2.5mm, 2x6x2.5mm, 2.5x6x...
Ceramic Ball Bearing bore 3mm: 3x6x2mm, 3x6x2.5mm, 3x7x3mm, 3x8x2.5mm, 3x8x3mm, 3x8x4mm, 3x10x4mm, 3x11x4mm
Ceramic Ball Bearing bore 4mm: 4x7x2mm 4x7x2.5mm, 4x8x2mm, 4x8x3mm,4x10x4mm, 4x11x4mm,4x13x5mm
Ceramic Ball Bearing bore 5mm: 5x8x2mm, 5x8x2.5mm, 5x9x3mm, 5x10x3mm, 5x10x4mm, 5x11x3mm, 5x11x4mm, 5x13x4mm
Ceramic Ball Bearing bore 6mm: 6x10x2.5mm, 6x10x2.5mm, 6x10x3mm, 6x12x4mm, 6x13x5mm, 6x15x5mm, 6x19x6mm
Ceramic Ball Bearing bore 7mm:7x11x3mm, 7x14x3.5mm, 7x14x5mm, 7x17x5mm
Ceramic Ball Bearing bore 8mm: 8x12x2.5mm, 8x12x3.5mm,8x14x4mm, 8x16x5mm
Ceramic Ball Bearing bore 9mm: 9x17x5mm, 9x20x5mm
Ceramic Ball Bearing bore 10mm: 10x15x4mm, 10x19x5mm, 10x20x5mm
Ceramic Ball Bearing bore 12mm: 12x18x4mm
Ceramic Ball Bearing bore 15mm: 15x21x5mm....
Inch/imperial sizes Ceramic ball bearing : SR2C-2OS 1/8" x 3/8" x 5/32, SR156C-2OS 3/16" x 5/16" x 1/8, SR166C-2OS 3/16 x 3/8 x 1/8, SR168C-2OS 1/4"x3/8"x1/8..
6001CE full ceramic bearing: 12x28x8mm specification for bulk orders
For buyers sourcing a 6001 full ceramic bearing, this 6001CE product uses zirconia (ZrO2) for both the rings and the balls. The published configuration is open, with dry lubrication and a choice of PEEK or PTFE cage. Specify the cage material required for your order.
| Order detail | Published 6001CE configuration |
|---|
| Bore × outside diameter × width | 12 × 28 × 8 mm |
| Inner and outer rings | ZrO2 ceramic |
| Balls | ZrO2 ceramic |
| Cage options | PEEK or PTFE; identify the selected cage in the RFQ |
| Closure and lubrication | Open type; dry lubrication |
Check the complete bearing configuration for your equipment
Send the shaft and housing drawing, required fits, clearance, radial and axial loads, speed, operating temperature and exposure conditions. Cage selection and the complete assembly must be reviewed for the intended environment; general ceramic material descriptions do not establish the operating limits of this assembled bearing. A different ceramic composition, closure or lubricant is a separate requirement to confirm before ordering.
Quotation and sample approval
Manufacturers, replacement-parts buyers and distributors can request a sample or batch quotation. Include quantity per batch, inspection requirements, packing and delivery destination. Confirm the material combination, cage, dimensional acceptance criteria and approved sample or drawing before production.
Request a 6001CE full ceramic bearing quotation or email admin@zotybearing.com with your selected cage and quantity.
Related ranges: ZrO2 full ceramic bearings, Si3N4 full ceramic bearings and hybrid ceramic bearings with metal rings. These are separate material configurations; match the complete specification to the purchase order.
